Description

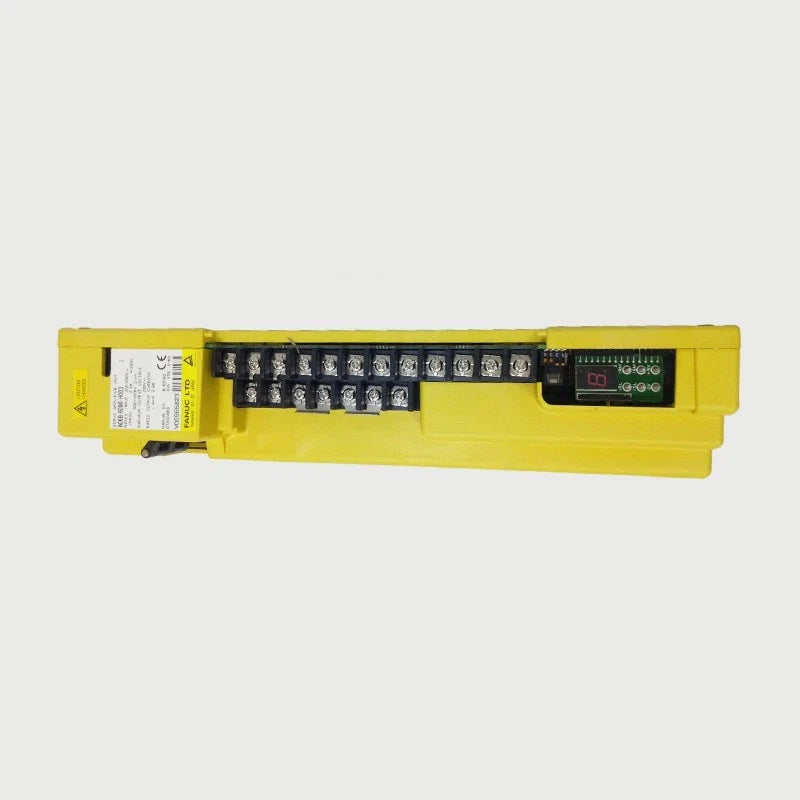

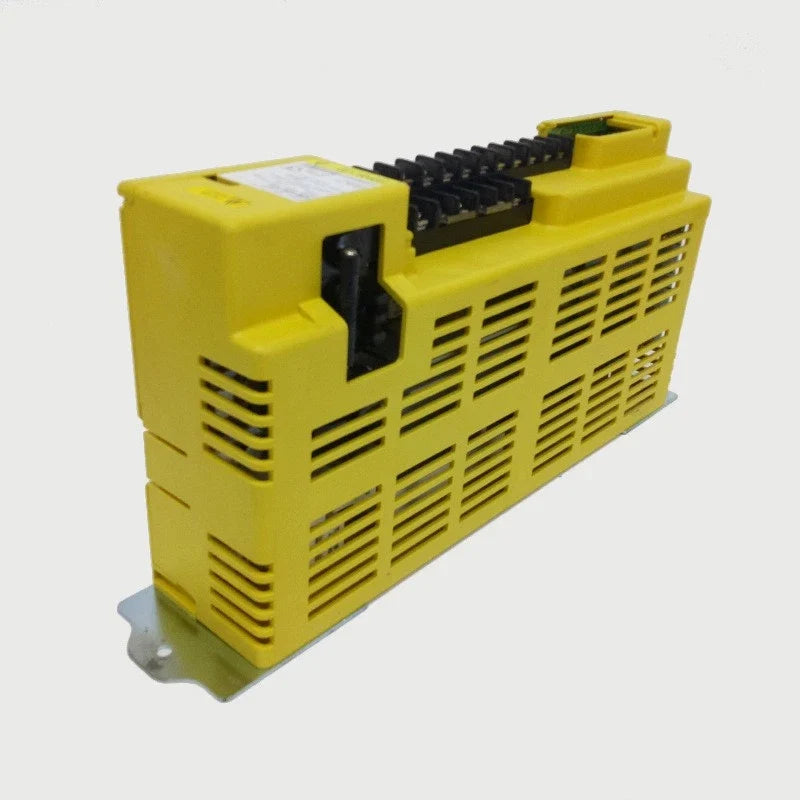

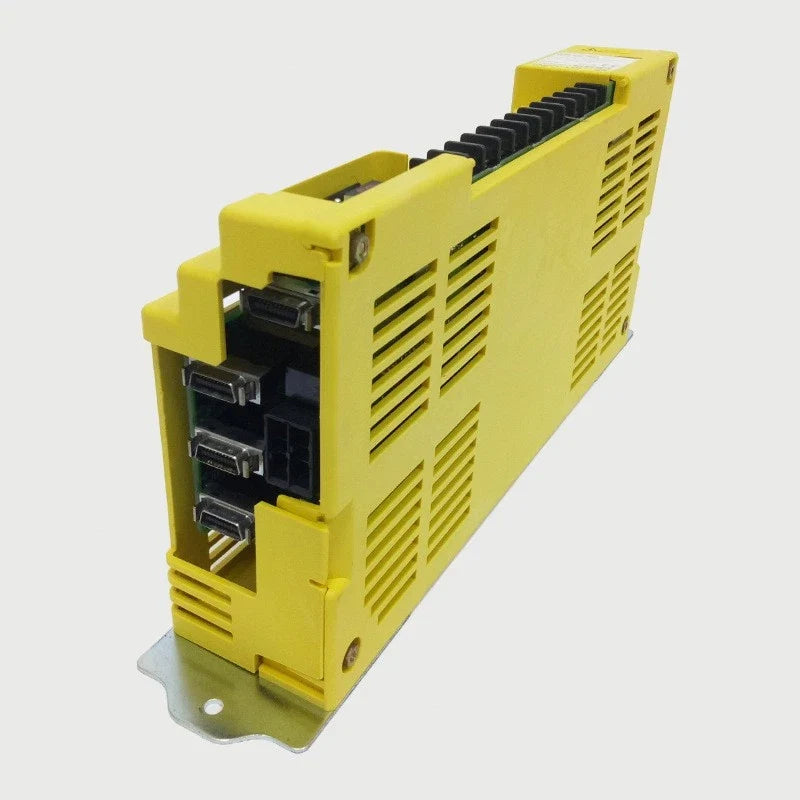

The FANUC A06B-6090-H003 is an Alpha Series servo amplifier unit designed to deliver precise motion control in CNC and industrial automation systems. This model SVUC 1-12 servo drive supports single-axis Alpha 3 and Alpha 6 motors, ensuring smooth operation and accurate torque control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
FANUC |
| Category |
Servo Products |
| Part Number |
A06B-6090-H003 |
| Subcategory |
Servo Drive/Servo Control |
| Series |
A06B-6090 Alpha Series |
| Model |
SVUC 1-12 |

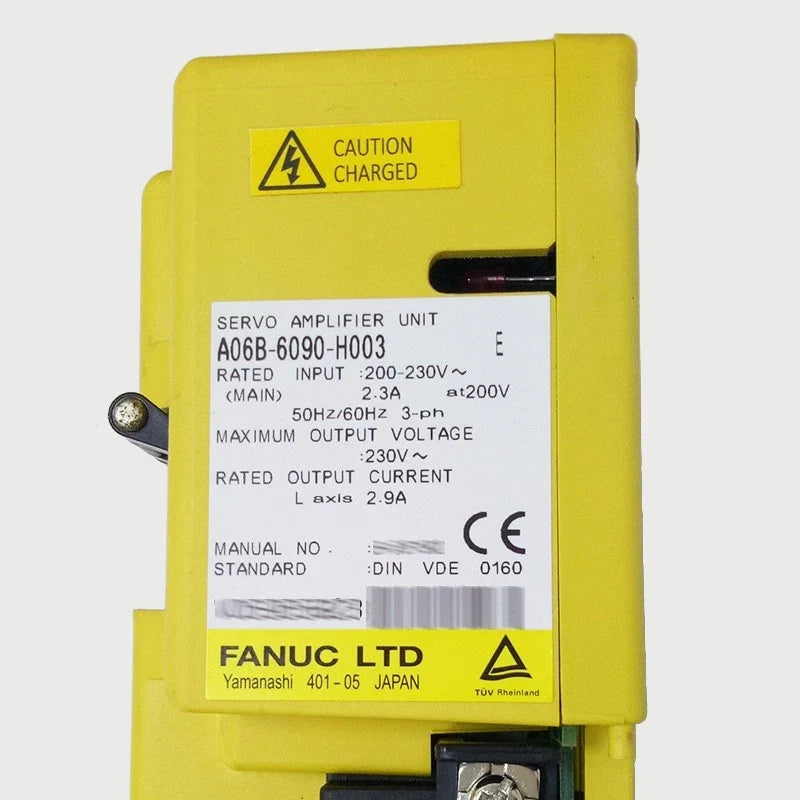

| Input Voltage |
200–230V AC |
| Input Current |
2.3A |
| Maximum Output Voltage |
230V |
| Rated Output Current |
2.9A (L-Axis) |
| Interface |
PWM (Pulse Width Modulation) |
| Supported Motors |
Alpha 3, Alpha 6 (single axis) |
| Application |
CNC machines and industrial automation |
| Availability |
Discontinued by Manufacturer (Exchange/Repair Available) |
| Core Exchange |
Must return A06B-6090-H003 for replacement |
| Weight |
5.25 lbs |
Information About A06B-6090-H003
The A06B-6090-H003 is part of the FANUC Alpha Series servo amplifier family, specifically the A06B-6090 line. It is configured as a Model SVUC 1-12, suitable for powering CNC machinery and automated equipment requiring high reliability and efficiency. The unit is rated for 200–230V AC input at 2.3A and provides a maximum output voltage of 230V with a rated output current of 2.9A on the L-Axis. Although discontinued by the manufacturer, this servo drive remains widely used in industry due to its compatibility with FANUC Alpha 3 and Alpha 6 motors. Exchange options and repair services are commonly available, making it a viable solution for maintaining legacy systems.
Key Features:
- Alpha Series Integration: Designed for use with FANUC Alpha motors, especially Alpha 3 and Alpha 6.
- Rated Input: Operates on 200–230V AC at 2.3A for stable power delivery.
- Output Capacity: Provides up to 230V output with 2.9A rated current on the L-Axis.
- PWM Interface: Uses Pulse Width Modulation for precise motion control.
- Single-Axis Support: Optimized for driving individual servo axes in CNC machinery.
- Exchange Option: Requires return of the same model (A06B-6090-H003) for replacement.
- Discontinued Model: No longer manufactured, but surplus and repair support are available.
- Compact Build: Lightweight at 5.25 lbs for ease of integration.
The A06B-6090-H003 delivers the reliability and accuracy required for CNC machines and automation systems where stable servo performance is essential.
