Description

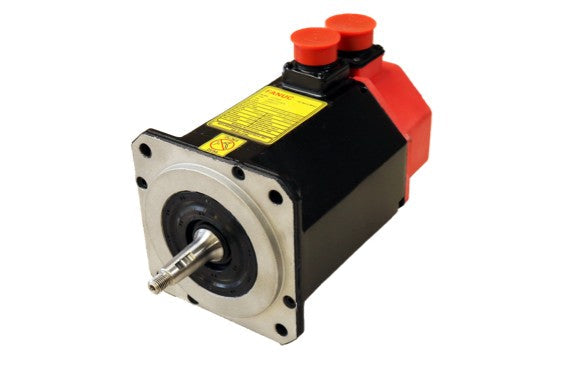

The Fanuc A06B-0123-B075 AC servo motor delivers precise motion control with a rated output of 0.9 kW and a maximum speed of 3000 RPM. Designed for CNC and automation systems, it features a tapered output shaft and Alpha A64 encoder for high-accuracy performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Fanuc |
| Category |
Servo Products |
| Part Number |
A06B-0123-B075 |
| Subcategory |
Servo Motor |
| Rated Output |
0.9 kW |
| Stall Torque |
3 Nm |
| Stall Current |
4.6 A |
| Rated Speed |
3000 RPM |
| Voltage |
127 VAC |
| Frequency |
50/60 Hz |
| Encoder Type |
Alpha A64 pulse coder |
| Shaft Type |
Tapered output shaft |
| Brake |
No |
| Model |
α 3/3000 |
| Application |
CNC / Industrial Automation |
| Cooling Method |
Natural convection |
| Insulation Class |
Class F |
| Protection Rating |
IP65 (typical for Fanuc motors) |
| Weight |
17.75 lbs |
Information About A06B-0123-B075
The A06B-0123-B075 is part of Fanuc’s α series servo motors, known for their robust construction and consistent performance in demanding environments. Built with a compact design, this unit offers a stall torque of 3 Nm and a stall current of 4.6 A, making it suitable for small-to-medium CNC axis drives. Its compatibility with Alpha series servo drives ensures smooth integration into Fanuc-controlled systems. Operating at 127 VAC, it is engineered for high-speed machining and precise feedback through its integrated A64 pulse coder encoder.
Key Features:
- Rated Output: Provides 0.9 kW power for efficient CNC axis control.
- Stall Torque: Delivers 3 Nm torque, ensuring reliable holding and cutting strength.
- Speed Capability: Operates at 3000 RPM for high-speed applications.
- Encoder System: Equipped with an Alpha A64 pulse coder for precise positional feedback.
- Output Shaft: Tapered shaft design allows secure and easy mechanical integration.
- Electrical Rating: Runs at 127 VAC and 4.6 A, optimized for Fanuc servo systems.
- No Brake: Designed without a built-in brake for continuous-duty motion control.
- Compact Build: Lightweight 17.75 lbs motor suitable for space-efficient installations.
The A06B-0123-B075 delivers the reliability and precision required for CNC machining and industrial automation systems.
