Description

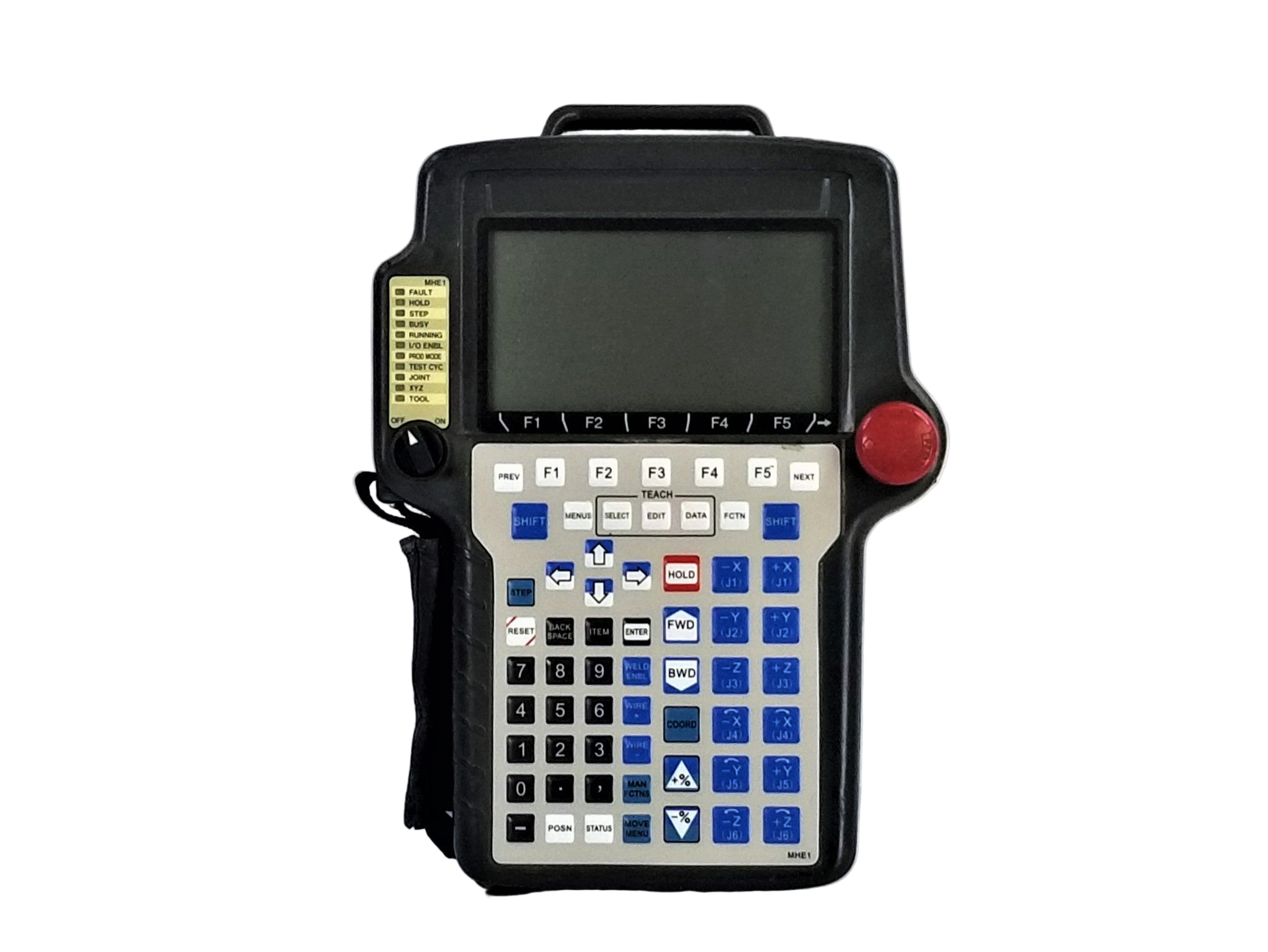

The FANUC A05B-2301-C302 is a handheld teach pendant designed for robotic arc welding applications. Featuring a tapered shaft for improved grip, an integrated dead man switch for safety, and a robust interface, it enables precise programming and real-time control of welding robots. This unit ensures both operator protection and high-quality welding performance in industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
FANUC |
| Category |
Servo Products |
| Part Number |
A05B-2301-C302 |
| Subcategory |
Teach Pendant |
| Series |
A05B-2301 Series |
| Function |
Arc welding teach pendant with handheld control |
| Input Voltage |
24 VDC (typical for FANUC pendants) |
| Safety Features |
Dead man switch, emergency stop |
| Grip Design |
Tapered shaft (TPR) for enhanced handling |
| Display/Interface |
Keypad with membrane overlay, system feedback indicators |
| Application |
Arc welding programming, parameter adjustment, monitoring |
| Compatibility |
FANUC robotic controllers and welding robots |
| Interchangeability |
Supports overlay/software changes within A05B-2301 series |
| Status |
Discontinued by Manufacturer |
| Repairable |
Yes (overlay, keypad, switch, and LCD replaceable) |
| Mounting/Use |
Handheld portable remote |
| Weight |
2.70 lbs |
| Place of Origin |
Japan |
Information About A05B-2301-C302
The A05B-2301-C302 is part of FANUC’s A05B-2301 series of teach pendants, specifically optimized for arc welding applications. It allows operators to control robotic systems safely from a distance while adjusting welding parameters such as current, voltage, and torch travel speed directly from the pendant. Equipped with a dead man switch, it enforces continuous operator engagement for safe robot movement. Although tailored for arc welding, this model shares interchangeability within the A05B-2301 family, where software configuration and overlay adjustments allow adaptation to other welding or robotic functions. Its rugged build ensures reliability in demanding manufacturing environments.
Key Features:
- Arc Welding Application: Designed for precise control of robotic arc welding systems.
- Handheld Remote: Lightweight and ergonomic design for operator comfort and mobility.
- Dead Man Switch: Safety feature requiring continuous engagement to enable robot movement.
- Tapered Shaft Grip: Provides better handling and control during prolonged operation.
- Real-Time Adjustments: Supports parameter tuning (voltage, current, speed) during welding.
- System Compatibility: Seamlessly integrates with FANUC robot controllers and software.
- Interchangeable Design: Compatible with other A05B-2301 models via software and overlays.
- Durable Construction: Built for continuous use in harsh welding environments.
The A05B-2301-C302 delivers the safety, precision, and control required for robotic arc welding operations.
