Description

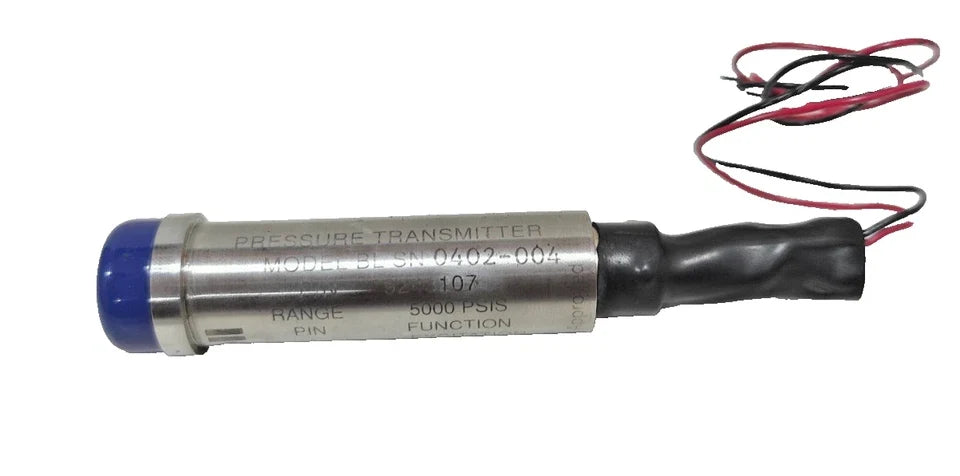

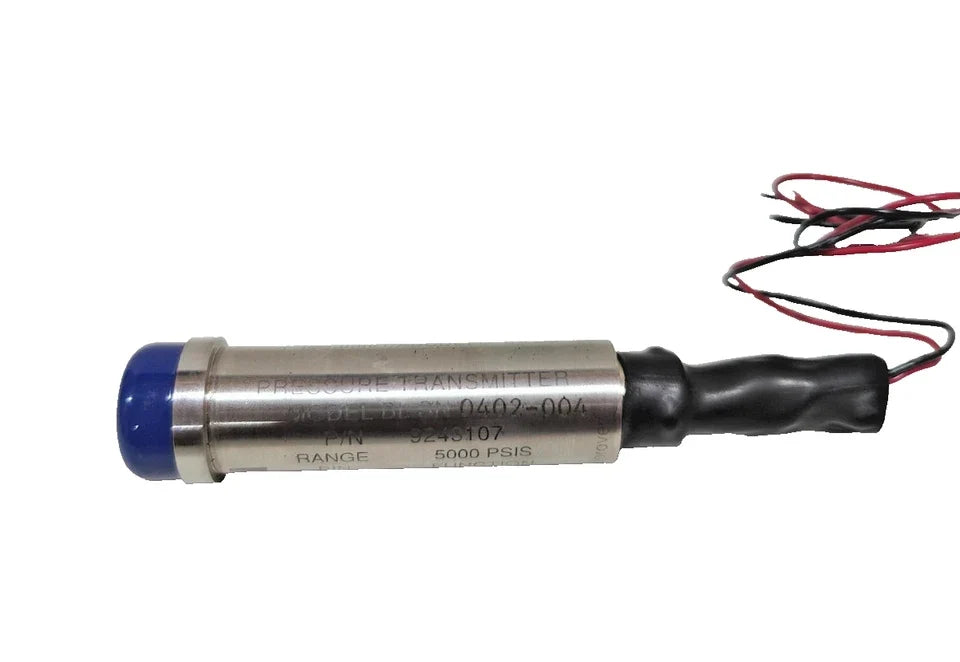

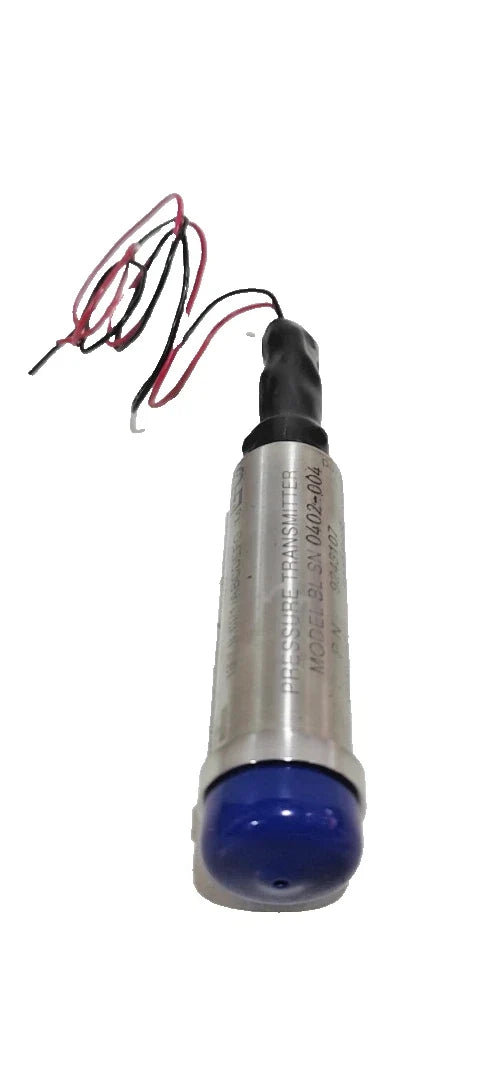

The Honeywell 9243107 is a sealed gage pressure sensor designed to measure pressures from 0 to 5000 psi in air, gas, or liquid applications. It provides a 4–20 mA output signal and operates from a 12 to 30 VDC supply. The sensor features a flush diaphragm design for accurate measurement and ease of cleaning in demanding industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors & Switches |
| Part Number |
9243107 |
| Subcategory |
Pressure Sensor/Transducer |
| Pressure Type |
Sealed Gage |
| Operating Pressure Range |
0 to 5000 psi |
| Output Signal |
4–20 mA |
| Supply Voltage |
12–30 VDC |
| Maximum Current |
100 mA |
| Accuracy |
±0.5% |
| Operating Temperature |
-40°C to 82°C |
| Response Time |
0.5 ms |
| Media Compatibility |
Air, Gas, Liquid |
| Electrical Termination |
5-Pin Connector |
| Mounting Type |
Panel Mount |
| Dimensions |
24 mm dia × 79 mm |
Information About 9243107
The 9243107 is a panel-mounted pressure transducer engineered for critical monitoring and control applications. It utilizes sealed gage pressure sensing technology to measure relative pressure referenced to a sealed internal standard. The device delivers a 4–20 mA analog output and supports operation within a temperature range of -40°C to 82°C. With a compact cylindrical housing and 5-pin electrical connector, it is suitable for integration into industrial systems requiring stable and repeatable pressure measurement.
Key Features:
-
0 to 5000 psi Pressure Range: Designed for high-pressure industrial measurement.
-
Sealed Gage Pressure Type: Measures pressure relative to a sealed internal reference.
-
4–20 mA Output Signal: Compatible with standard industrial control systems.
-
±0.5% Accuracy: Provides precise pressure readings for process control.
-
Flush Diaphragm Design: Facilitates cleaning and use in media-sensitive applications.
-
Wide Operating Temperature Range: Functions from -40°C to 82°C.
-
Fast Response Time: 0.5 ms typical response for dynamic pressure changes.
-
12–30 VDC Supply Voltage: Supports common DC-powered installations.
The 9243107 delivers the reliability and precision required for high-pressure monitoring and process control applications.
