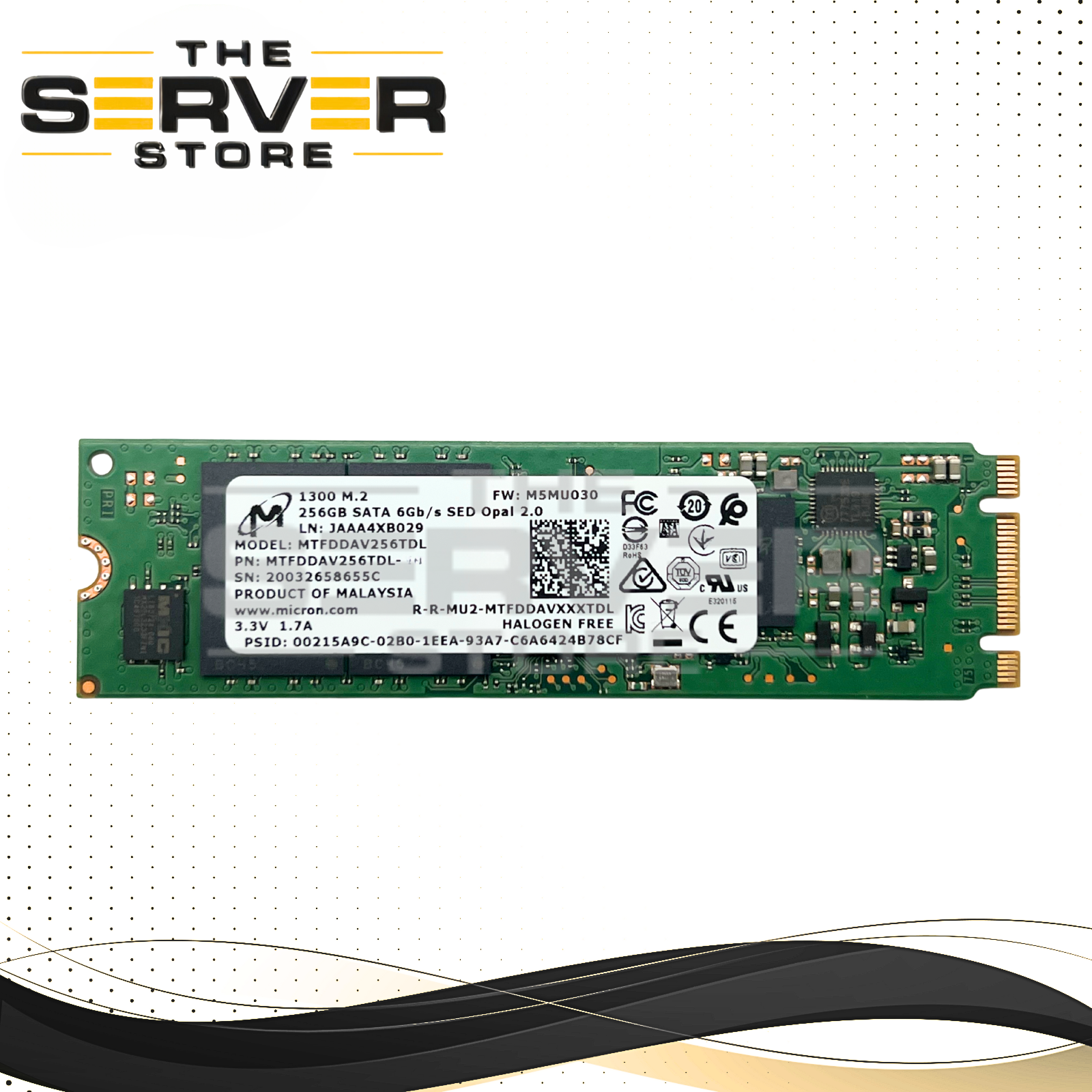

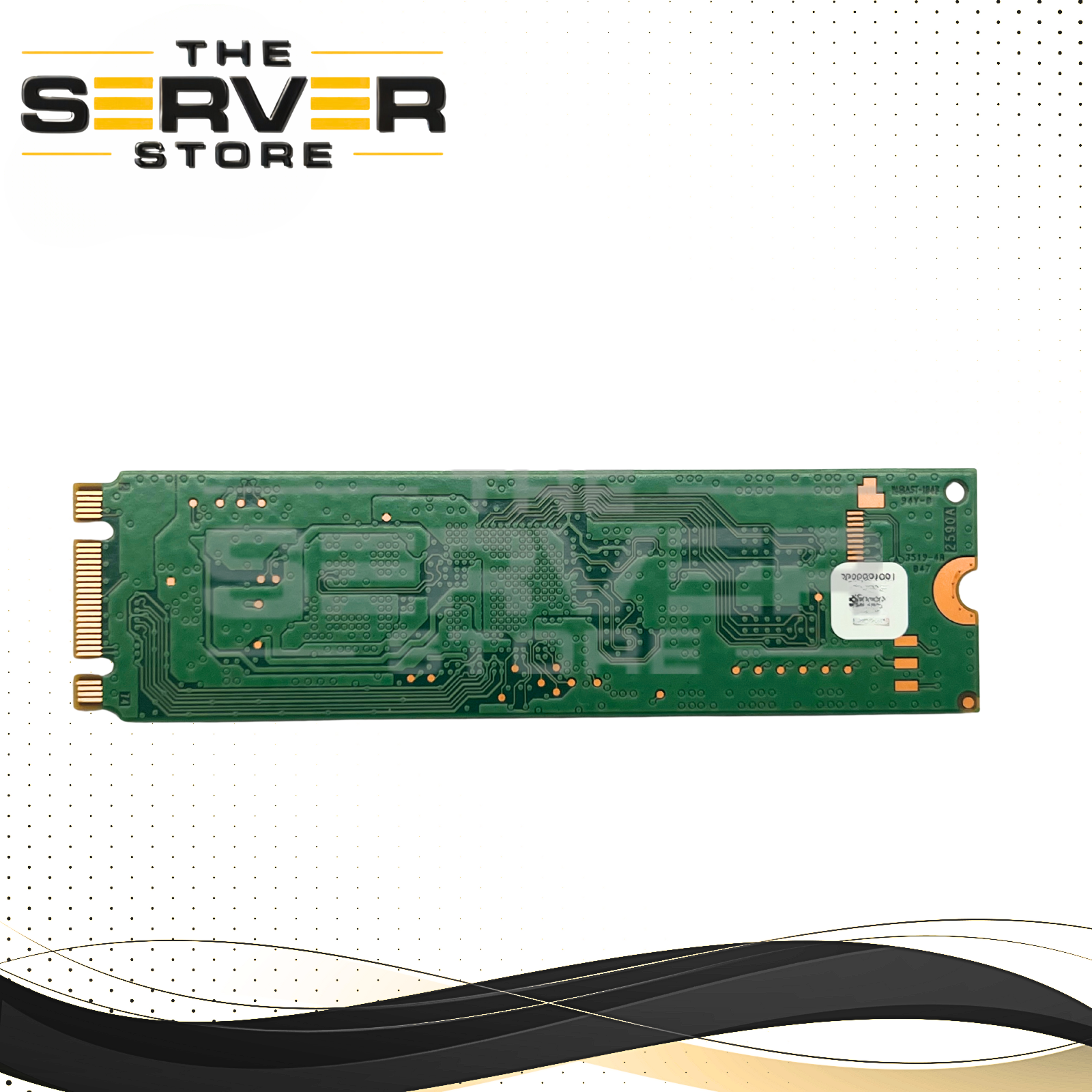

Micron 256GB SATA 6G 2280 M.2 SED SSD 1300 Series

MTFDDAV256TDL / MTFDDAV256TDL-1AW12ABYY

The Micron 1300 Series 256GB M.2 SATA SSD is a compact client/value-class solid-state drive designed for notebooks, desktops, and embedded systems requiring reliable SATA performance in an M.2 2280 form factor. Built with 96-layer 3D TLC NAND and self-encrypting drive (SED) capabilities, it offers a balance of performance, efficiency, and data security.

---

Part Number Identification

The following part numbers reference the same Micron 1300 Series 256GB M.2 SATA SSD, with suffixes indicating firmware, region, or packaging variations:

• MTFDDAV256TDL – Base Micron Model

• MTFDDAV256TDL-1AW12ABYY – Micron OEM / Distribution Part

---

Device Type & Classification

• Device Type: Solid State Drive (SSD)

• Class: Client / Value-Class

• Workload Profile: Read-heavy, light write usage

---

Core Technical Specifications

Attribute	Specification
Capacity	256 GB
Interface	SATA III 6 Gb/s
Protocol	SATA / AHCI (non-NVMe)
Form Factor	M.2 2280 (22 mm × 80 mm)
NAND Flash Type	Micron 96-layer 3D TLC NAND

---

Performance

Metric	Rating
Sequential Read	Up to 530 MB/s
Sequential Write	Up to 520 MB/s
Random Read (4KB)	Up to 90,000 IOPS
Random Write (4KB)	Up to 87,000 IOPS
Sustained Transfer Rate	Up to 600 MB/s (external)

---

Endurance & Reliability

• Endurance: ~180 TBW

• DWPD: ~0.25 DWPD

• MTTF: 1.5 million hours

---

Security & Features

• Self-Encrypting Drive (SED)

• 256-bit AES encryption

• TCG Opal 2.0 support (SKU-dependent)

• Dynamic Write Acceleration

• S.M.A.R.T. monitoring

• TRIM support

• Adaptive thermal monitoring

---

Compatibility & Use Cases

• Systems supporting M.2 2280 SATA slots

• Ideal for:

  • Laptops and desktops

  • Embedded systems

  • Boot drives and light application storage

  • Secure client environments requiring encryption
