Description

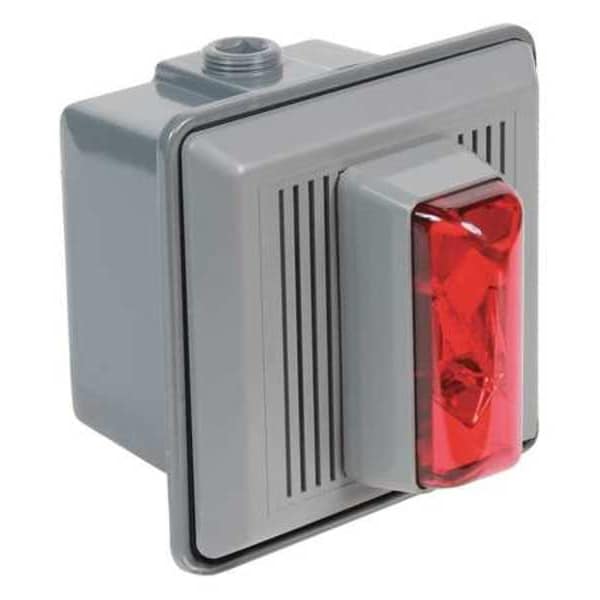

The Edwards Signaling 868STRR-N5 Industrial Electronic Horn/Strobe is a 120 VAC surface-mount audible and visual signaling device designed for heavy-duty industrial environments. Featuring a Xenon strobe and a 90–100 dB horn output, it delivers reliable, high-visibility and high-audibility alerts for process control, machinery status, and safety notification applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Edwards Signaling |
| Category |
Fire Alarm and Safety Devices |
| Part Number |
868STRR-N5 |
| Subcategory |
Strobe/Flashing Light Unit |
| Series |
860 Series |
| Type |
Industrial Electronic Horn/Strobe |
| Operating Voltage |
120 VAC, 50/60 Hz |
| Operating Current |
0.021 A |
| Sound Output |
100 dB @ 1 m / 90 dB @ 10 ft |
| Lamp Type |
Xenon flash tube |
| Lens Color |
Red |
| Flash Rate |
60 flashes per minute (FPM) |
| Housing Material |
Gray engineered thermoplastic |
| Mounting Type |
Surface mount |
| Size (W × H) |
5.5 in × 5.5 in |
| Enclosure Rating |
NEMA 4X equivalent (indoor/outdoor use, series dependent) |
| Operating Temperature Range |
32°F to 120°F (0°C to 49°C) |
| Approvals |
UL 1638 (Strobe), UL 464 (Horn) |
| Power Source |
120 VAC line voltage |
| Horn Type |
Electronic tone, continuous |
| Operation Mode |
Independent horn/strobe circuits |
| Application |
Industrial alarm, process control, emergency notification |
| Country of Origin |
USA |
| Weight |
Approx. 1 lb (0.45 kg) |
Information About 868STRR-N5
The 868STRR-N5 is part of Edwards’ 860 Series of industrial horn/strobe units, designed for demanding indoor and outdoor signaling tasks. Constructed with a durable gray engineered thermoplastic housing, it provides excellent resistance to corrosion, impact, and temperature variation. The device operates on 120 VAC at 50/60 Hz and includes a Xenon flash lamp producing a 60 flashes-per-minute rate through a red lens. The strobe and horn may be operated independently, offering flexibility in installation and function. With UL 1638 (Strobe) and UL 464 (Horn) certifications, the 868STRR-N5 ensures dependable performance in industrial plants, manufacturing facilities, and emergency alert systems.
Key Features:
- Dual Alert Function: Combines a 90–100 dB horn with a bright Xenon strobe for audible and visual signaling.
- Independent Operation: Horn and strobe circuits can be activated separately for custom alert configurations.
- High-Visibility Strobe: 60 flashes per minute through a red lens for clear visual indication.
- Durable Thermoplastic Housing: Corrosion-resistant and impact-resistant for industrial use.
- Standard Power Supply: Operates on 120 VAC at 50/60 Hz for broad system compatibility.
- Low Current Draw: 0.021 A typical current ensures efficient operation.
- Compact Design: 5.5-inch square profile allows easy wall mounting in tight spaces.
- UL Certified: Meets UL 1638 and UL 464 standards for safety and performance.
The 868STRR-N5 delivers the reliability and precision required for industrial safety signaling and process notification systems.
