Description

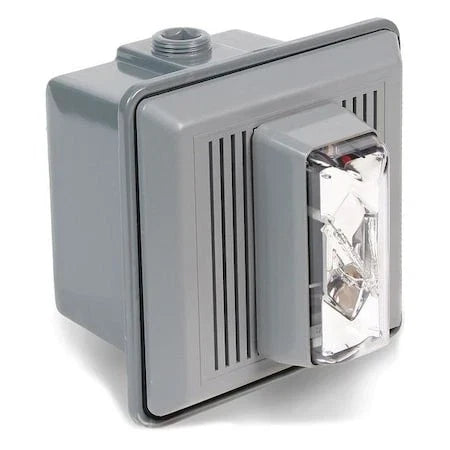

The Edwards 868STRC-N5 is a surface-mounted horn strobe designed for indoor fire alarm and signaling applications. Operating at 120V AC, it combines a 90 dB horn with a clear-lens xenon strobe to provide both audible and visual notification.

Technical Specifications

Information About 868STRC-N5

The 868STRC-N5 is part of Edwards’ 868 series of signaling appliances, built for use in fire alarm and emergency communication systems. Constructed with a durable gray thermoplastic housing, it features a fixed-brightness xenon strobe rated at 150 candela and a horn producing up to 100 dB at one meter. This model operates on 120V AC power and is designed for direct wire connections with surface mounting capability. UL listed for indoor use, the 868STRC-N5 provides dependable audible and visual notification in commercial, institutional, and industrial settings.

Key Features:

• Combined Horn/Strobe: Provides both audible and visual notification for fire alarm systems.
• High Sound Output: Produces 90 dB at 10 feet (100 dB at 1 meter).
• 120V AC Operation: Designed for direct wiring into standard power circuits.
• Xenon Strobe Light: Clear-lens strobe rated at 150 candela with 60 flashes per minute.
• Durable Housing: Gray thermoplastic construction for long-term reliability.
• Surface Mounting: Installs easily on walls or other flat surfaces.
• UL Listed: Meets fire and signaling equipment compliance standards.
• Indoor Rated: Suitable for commercial and institutional indoor environments.

The 868STRC-N5 delivers the reliability and precision required for audible and visual fire alarm notification.
