Description

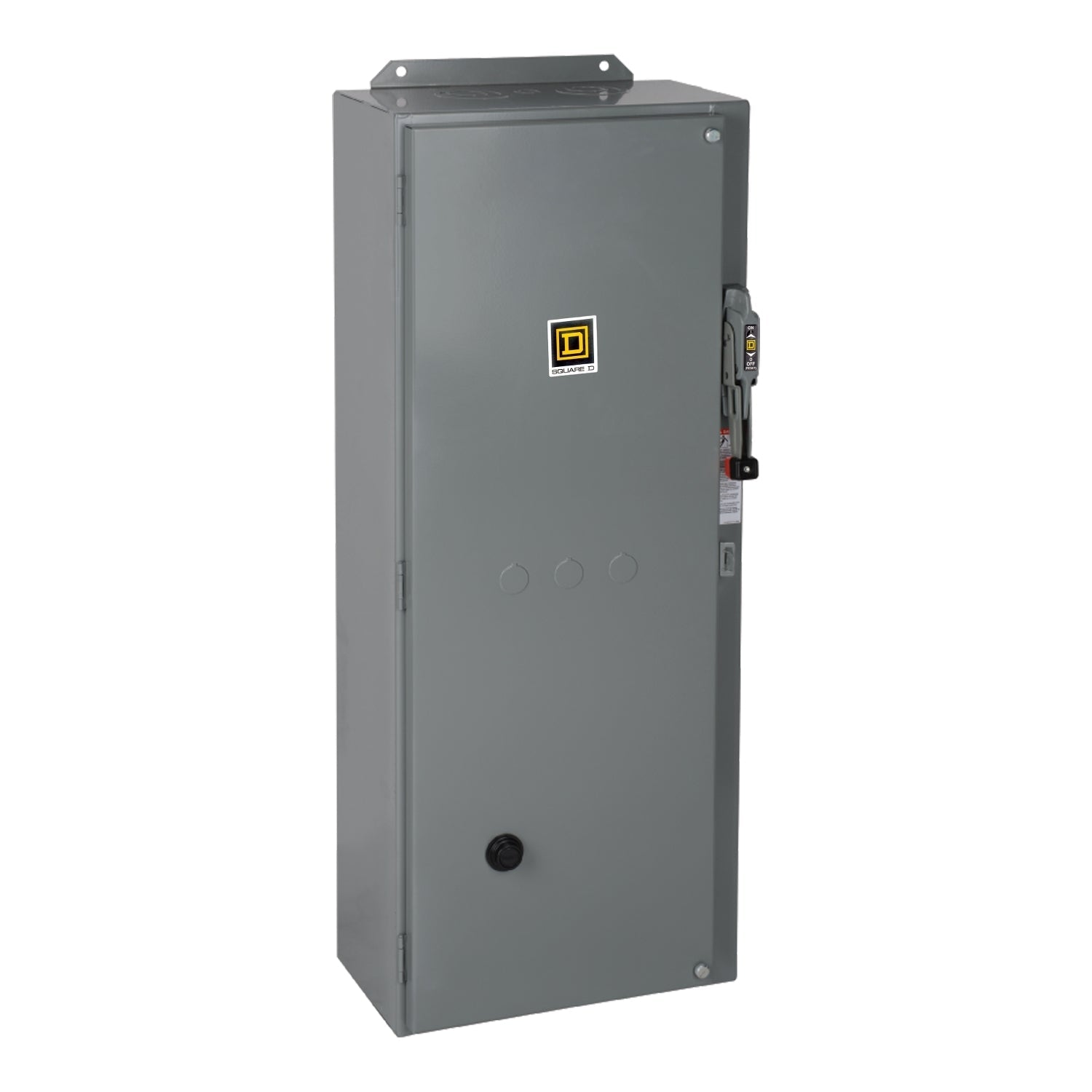

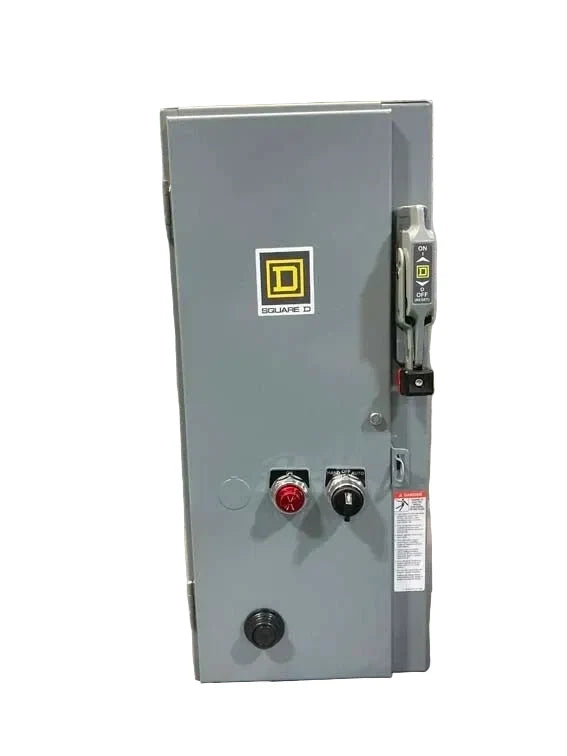

The Square D 8538SEG13V02S is a Type S nonreversing fusible combination starter designed for dependable motor control in industrial and commercial applications. This NEMA Size 3 starter integrates short-circuit and overload protection into a single enclosed assembly for three-phase motors up to 50 HP. Built for 600 VAC systems, it provides robust protection and control for full-voltage motor starting applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Square D |
| Category |
Motor Control |
| Part Number |
8538SEG13V02S |
| Subcategory |
Combination Starters |
| Series |
Type S Series |
| Starter Type |
Nonreversing, Full Voltage |
| NEMA Size |
Size 3 |
| Number of Poles |
3 |
| Phase |
Three Phase |
| Maximum Line Voltage |
600 VAC |
| Horsepower Rating |
50 HP @ 460/575 VAC |
| Disconnect Type |
Fusible Disconnect Switch |
| Disconnect Rating |
100 A |
| Overload Type |
Melting Alloy (Type CC Thermal Units) |
| Control Circuit Voltage |
110 VAC 50 Hz / 120 VAC 60 Hz |
| Enclosure Type |
NEMA 1, Painted Sheet Steel |
| Certifications |
UL Listed, CSA Certified |
| Country of Origin |
Mexico |
| Weight |
112 lb |
Information About 8538SEG13V02S

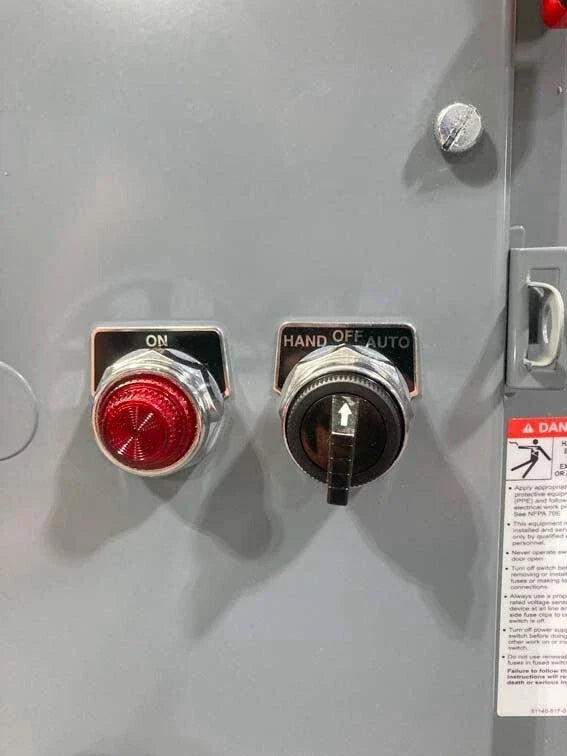

The 8538SEG13V02S is a Square D Type S Series combination starter engineered to meet NEMA construction standards for heavy-duty motor control. It features a fusible disconnect with Class H fuse clips and a melting alloy thermal overload relay using Type CC thermal units for accurate overcurrent sensing. Designed for separate control circuits, it includes a 110/120 VAC operating coil and supports three-pole, three-phase motor applications. The unit is housed in a painted sheet steel NEMA 1 enclosure and is UL listed and CSA certified for use in regulated industrial environments.
Key Features:
- NEMA Size 3 Rating: Supports motors up to 50 HP at 460/575 VAC three-phase

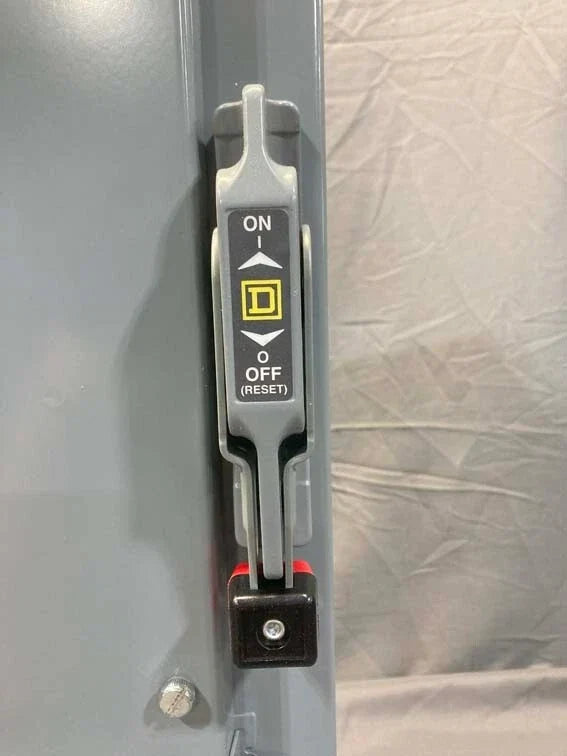

- Fusible Disconnect Switch: Includes 100 A Class H fuse clips for short-circuit protection
- Melting Alloy Overload Relay: Provides reliable thermal overload protection using Type CC units
- Nonreversing Starter Design: Configured for full-voltage motor starting applications
- Separate Control Circuit: Operates with a 110 VAC (50 Hz) or 120 VAC (60 Hz) control coil
- Three-Pole Construction: Designed for three-phase motor control systems
- NEMA 1 Enclosure: Painted sheet steel enclosure for general-purpose indoor use
The 8538SEG13V02S delivers the reliability and precision required for industrial motor starting and protection systems.
