Description

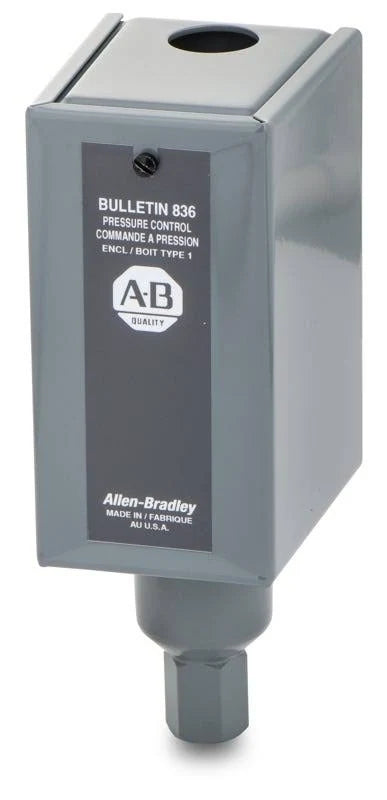

The Allen-Bradley 836-C7A is a rugged solid-state pressure switch from the Style C series, designed to provide reliable electromechanical pressure sensing and switching in industrial applications. With a wide operating range and durable enclosure, it offers dependable system monitoring and control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
836-C7A |
| Subcatecory |
|
| Switch Type |
SPST |
| Contact Configuration |
1 NO, 1 NC |
| Pressure Range (Operating) |
4 – 150 psi (0 – 10.3 bar) |
|
Burst Pressure
|
25.85 bar (10342.1 hPa) |
| Sensor Type |
Electromechanical |
| Enclosure Type |
NEMA Type 1 |
| Mounting |
Surface Mountable |
| Terminal Type |
Screw Terminals |
| Temperature Rating |
–30°C to 66°C |
| Standards Compliance |
CE, CSA, UL, CUL, CCC, KC |
| Weight |
2.2500 lb |
Information About 836-C7A
The 836-C7A solid-state pressure switch is part of Allen-Bradley’s Style C product line, built for consistent performance in industrial control and automation environments. It is rated for system pressures between 4 to 150 psi (0 to 10.3 bar), with a burst pressure threshold of up to 25.85 bar (10342.1 hPa), making it suitable for monitoring compressed air, hydraulic, or process fluid systems.
Key Features:
- Wide Pressure Range: operates from 4 to 150 psi (0–10.3 bar), suitable for a broad spectrum of industrial systems.
- Dual Contact Configuration: features 1 NO and 1 NC contact for flexible control response and redundancy.
- Electromechanical Sensor: provides robust, dependable switching based on system pressure.
- NEMA Type 1 Enclosure: offers dust resistance and physical protection for control room or indoor installations.
- High Burst Pressure: withstands up to 25.85 bar for safe performance in overpressure conditions.
- Mountable Design: simplifies panel or system integration in automation environments.
- Certified Globally: complies with CE, UL, CSA, CCC, KC, and cUL standards for international deployment.
The 836-C7A delivers solid-state precision and safety in pressure-critical industrial processes, making it a reliable choice for pressure monitoring and control.
