Description

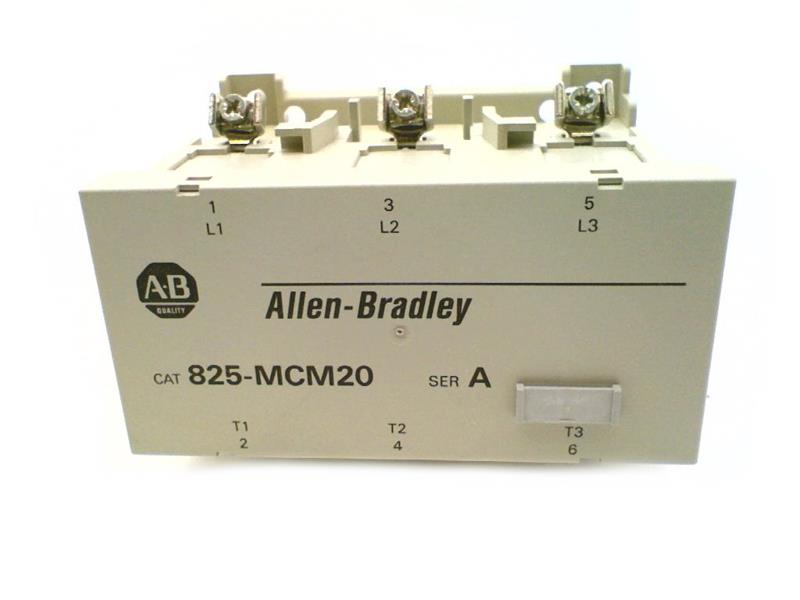

The Allen-Bradley 825-MCM20 is a current converter module from the 825-P series, designed to protect and monitor three-phase industrial motors. It supports a current range of 2.5 to 20 A and a continuous thermal current of 24 A.
Technical Specifications
| Condition |
New/Never Used Surplus |
|
| Brand |
Allen-Bradley
|
|
| Category |
|
|
| Part Number |
825-MCM20
|
|
| Subcatecory |
|
|
| Product Bulletin |
825-P Motor Protection unit |
|
Current Range
|
2.5-20 A |
|
| Motor Circuit per IEC |
660V AC |
|
| Operating Voltage |
690 VAC (IEC); 600 VAC (CSA/UL) |
|
| Rated Continuous Thermal Current |
24 A |
|
| Rated Frequency |
50/60Hz +/- 3Hz |
|
| Rated Saturation Current |
240 Amperes |
|
| Weight |
1.05 kgs |
|
Information About 825-MCM20
The Allen-Bradley 825-MCM20 is a current converter module from the 825-P series, designed to protect and monitor three-phase industrial motors. It supports a current range of 2.5 to 20 A and a continuous thermal current of 24 A. Operating at voltages up to 690 VAC (IEC) or 600 VAC (CSA/UL), it offers comprehensive motor protection features including thermal overload, overcurrent, undercurrent, phase loss, ground fault detection, and more. The module includes inputs for up to six PTC thermistors, discrete I/O, and optional DeviceNet communication. Housed in an IP65/IP20-rated enclosure, it is suitable for various industrial motor protection applications .
Key Features:
-
Current Range: 2.5 to 20 A
-
Continuous Thermal Current: 24 A
-
Operating Voltage: Up to 690 VAC (IEC), 600 VAC (CSA/UL)
-
Protection Features: Thermal overload, overcurrent, undercurrent, phase loss, ground fault detection
-
Inputs: Supports up to six PTC thermistors
-
Communication: Optional DeviceNet
-
Enclosure Rating: IP65/IP20
This module is designed for easy integration into motor control systems, providing reliable protection and monitoring capabilities for industrial applications.
