Description

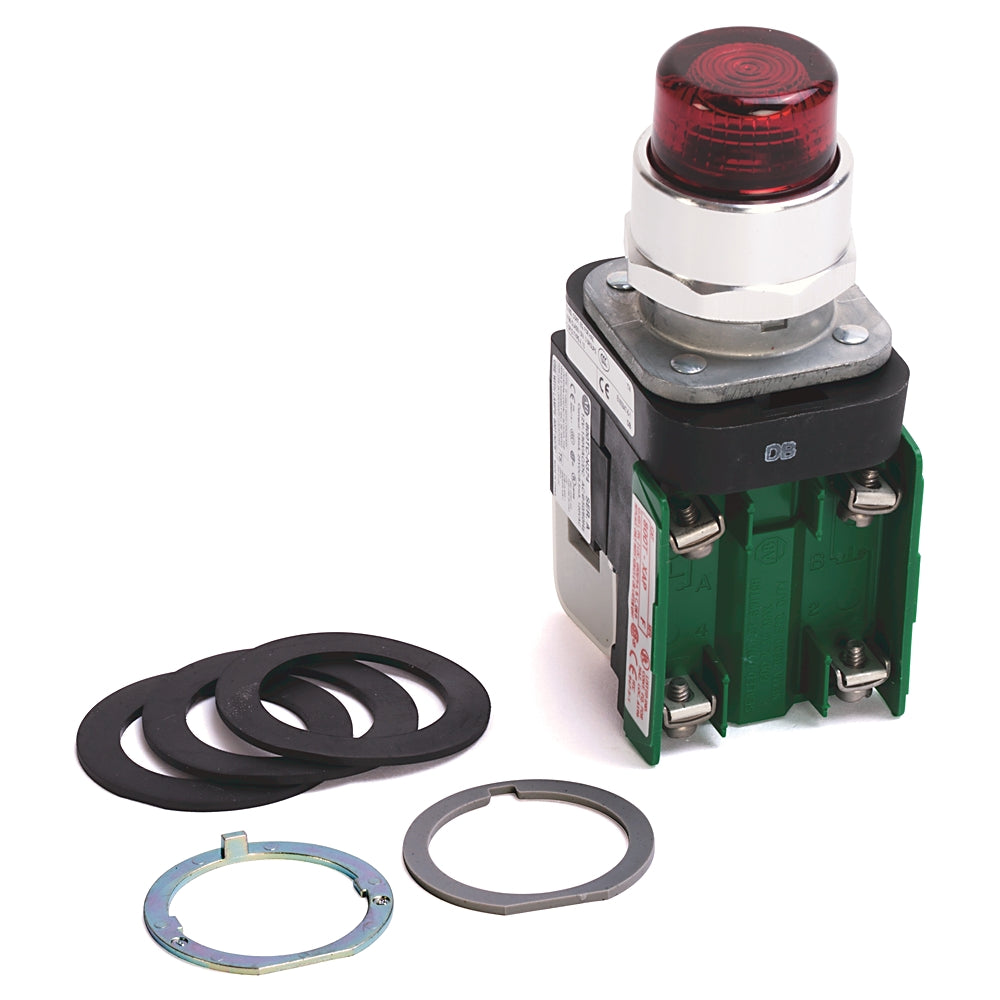

The Allen-Bradley 800T-QBH2R is a 30.5 mm momentary push button designed for high-visibility operator control in industrial environments. Featuring an illuminated extended red head with LED indication, this push button operates on 12–130V AC/DC and includes 1 normally open and 1 normally closed contact.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
800T-QBH2R
|
| Subcatecory |
|
| Series |
Momentary Push Button |
| Mounting Diameter |
30.5 mm |
| Operator Type |
Extended Head, Illuminated |
| Illumination |
LED, Full Voltage |
| Voltage Range |
12–130V AC/DC |
| Color |
Red |
| Contact Configuration |
1 N.O. / 1 N.C. |
| Weight |
0.07 kgs |
Information About 800T-QBH2R
The 800T-QBH2R belongs to the Allen-Bradley Bulletin 800T series of heavy-duty push buttons. This model features a round, illuminated extended head operator without a guard and is mountable in standard 30.5 mm panel cutouts. It is rated for full voltage LED operation at 12–130V AC/DC and includes 1 N.O. and 1 N.C. contact block in standard configuration. The push button is designed for use in rugged environments, offering Type 4/13 (NEMA) protection against water, oil, and dust.
Key Features:
-
30.5 mm Mounting Size: Standard industrial mounting diameter for easy integration.
-
Momentary Operation: Returns to the default state when released, ideal for start or acknowledgment functions.
-
Red Extended Head (Illuminated): High-visibility actuator for quick operator identification.
-
LED Illumination (12–130V AC/DC): Wide voltage range with long-lasting and efficient lighting.
-
1 N.O. / 1 N.C. Contacts: Provides dual-circuit switching in a compact form factor.
-
No Guard, No Block in Position 3: Streamlined build for applications where additional protection or extra blocks are not needed.
-
Type 4/13 Watertight/Oiltight: Suitable for industrial applications exposed to fluids or contaminants.
The 800T-QBH2R offers a durable and visible operator interface solution for control panels in manufacturing, processing, and automation environments.
