Description

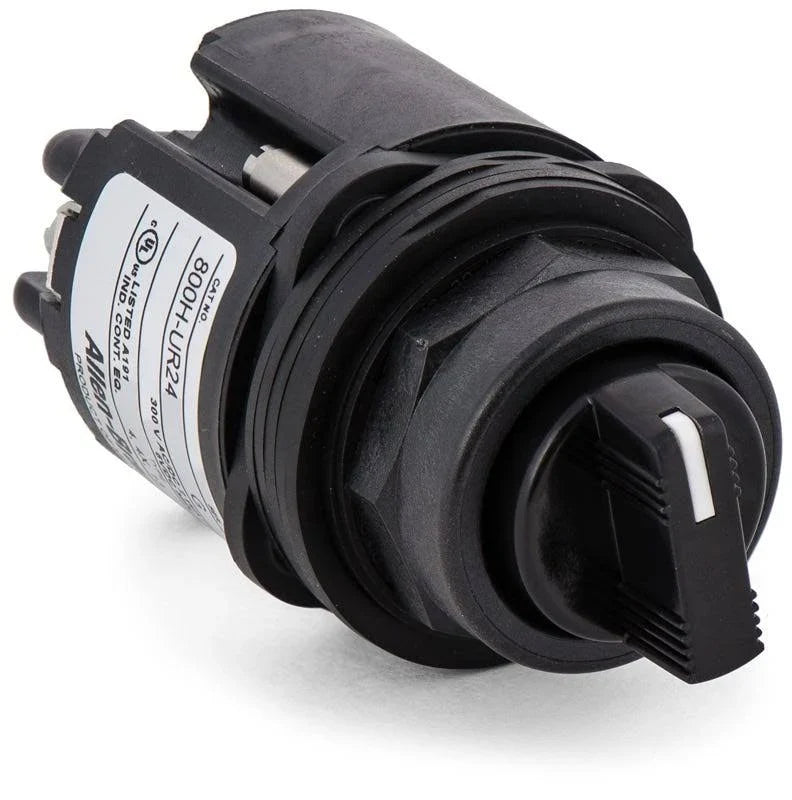

The Allen-Bradley 800H-UR24 is a 30 mm panel-mount potentiometer with a 10 kΩ resistance and 24 V rating, designed for precise manual control of analog signals in industrial control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
Pilot Devices |
| Part Number |
800H-UR24 |
| Subcatecory |
|
|
Applications
|
No Guards - on Terminals |
| Size |
|
| Type |
30 mm Potentiometer Unit
|
| Wattage |
2 Watt |
| Resistance |
5000 Ohms |
| Standard |
CCC,CE,CSA,CUL,KC,MARINE,UL |
| Voltage |
300 VAC/DC |
| Weight |
0.30 lbs |
Information About 800H-UR24
The 800H-UR24 is a durable and precision-engineered 30 mm potentiometer from Allen-Bradley’s 800H series, designed for analog signal adjustment in industrial control applications, featuring a 10 kΩ resistance, 24 V rating, and robust construction suited for harsh operating environments.
Key Features:
-
Type: Potentiometer
-
Series: Allen-Bradley 800H
-
Category: Operator Interface Device
-
Subcategory: 30 mm Panel-Mount Potentiometer
-
Functionality: Allows manual adjustment of analog values in control systems
-
Resistance Value: 10 kΩ
-
Voltage Rating: 24 V
-
Knob Style: Rotary
-
Mounting Hole Size: 30 mm standard panel cutout
-
Bezel Type: Chrome-plated metal bezel
-
Terminal Type: Screw terminals
-
Enclosure Rating: IP66 / NEMA 4, 13 (protection against water, oil, and dust)
-
Operating Temperature Range: -20 °C to +65 °C
-
Construction: Industrial-grade housing designed for rugged applications
-
Standards Compliance: UL Listed, CSA Certified, CE Marked
The 800H-UR24 delivers smooth, reliable analog control in demanding environments, making it ideal for operator panels, machine interfaces, and applications where precise manual adjustment is essential.
