Description

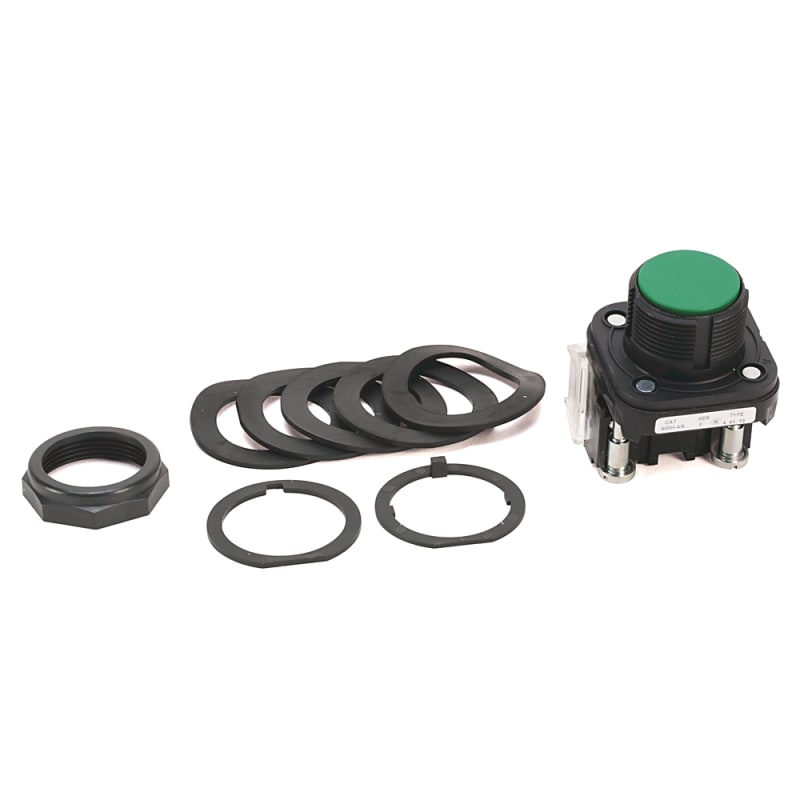

The Allen-Bradley 800H-AR1D1 is a robust momentary push button designed for industrial environments requiring reliable manual control. Featuring a flush head, bootless design, and non-illuminated actuator, this push button is ideal for standard signaling applications.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
800H-AR1D1
|
| Subcatecory |
|
| Series |
800H Series |
| Action |
Momentary |
| Actuator Type |
Flush Head |
| Contact Configuration |
1 NO (Normally Open) |
| Housing Material |
Plastic |
| Operator Size |
30.5 mm |
| Illumination |
Non-Illuminated |
| Mounting Type |
Panel Mount |
| Standards & Certifications |
CCC, CE, CSA, CUL, KC, MARINE, UL |
| Ingress Protection Rating |
Type 4, 4X, 13 |
| Color |
Green |
| Weight |
0.46 lbs
|
Information About 800H-AR1D1
The 800H-AR1D1 is part of the Allen-Bradley 800H series, recognized for its durability and environmental protection. This push button supports a momentary contact action, meaning it returns to its default position once released—perfect for control operations like starting a motor or initiating a signal. The device features a flush green head for a clear visual cue, and includes a single Normally Open (1 NO) contact block for simple and effective integration into a control circuit.
Key Features:
-
Momentary Action: Press-to-activate with automatic spring return for safe, temporary operation.
-
Flush Head Design: Flat, non-illuminated actuator provides a sleek look and tactile feedback.
-
Industrial Durability: Plastic housing meets Type 4/4X/13 for resistance to dust, water, and corrosion.
-
Simple Contact Configuration: Includes 1 Normally Open (NO) contact for basic control circuit needs.
-
Wide Certification Range: Certified for use in harsh and regulated environments worldwide.
The 800H-AR1D1 offers reliable functionality and rugged protection in a compact operator control solution for industrial automation systems.
