Description

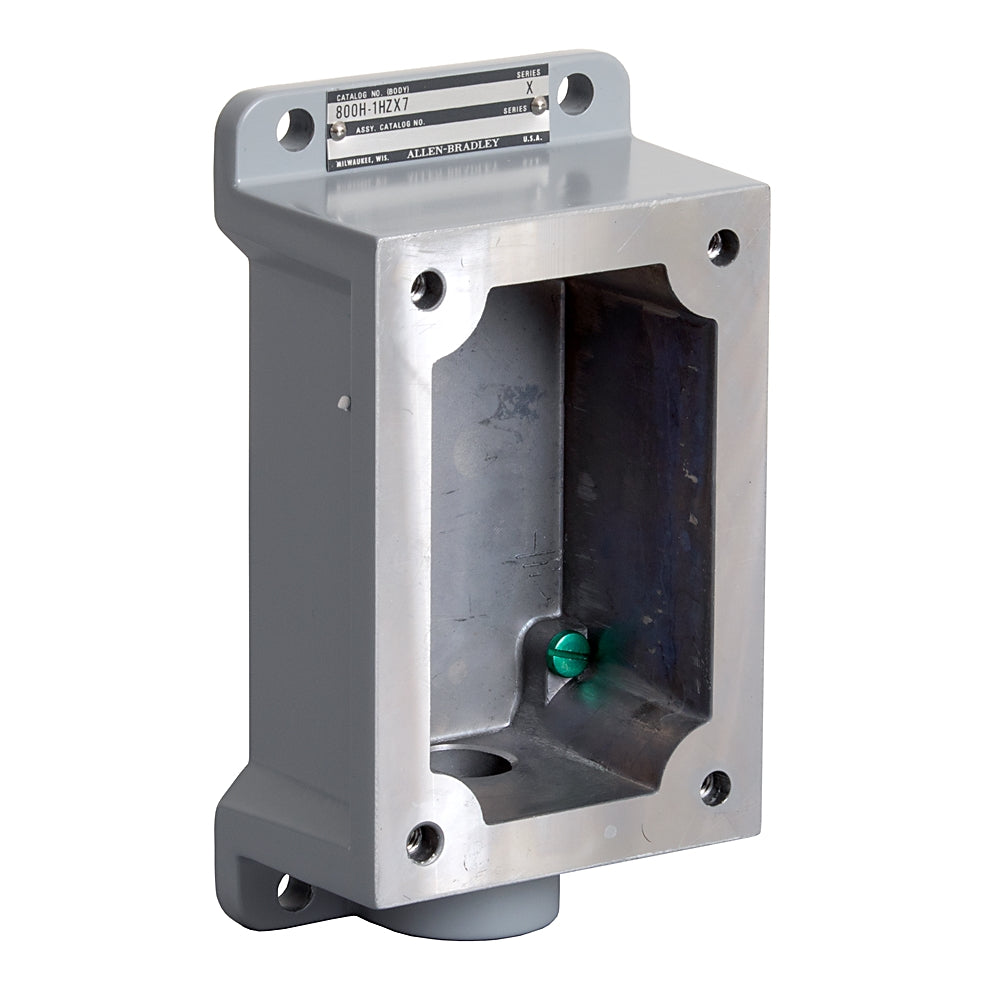

The Allen-Bradley 800H-1HZX7 is a 1-gang shallow push button enclosure base built for hazardous location applications. Made of aluminum and rated for NEMA Type 7 & 9, it provides a secure housing for 30 mm operators in Class I, II, and III Division 1 environments.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
800H-1HZX7 |
| Subcatecory |
|
| Material |
Aluminum |
| Enclosure Rating |
NEMA Type 7 & 9 |
| Cable Entry |
3/4 in. Dead End, 14 NPSM |
| Mounting Type |
Base |
| Operator Cutout |
30 mm |
| Hazardous Location Rating |
Class I & II Div. 1, Class III |
| Certifications |
CSA, UL, CUL, KC |
| Weight |
2.2200 lb |
Information About 800H-1HZX7
The 800H-1HZX7 enclosure base is designed for use in hazardous classified areas, supporting installation in Class I & II Division 1 and Class III locations. It features a 3/4-inch dead-end cable entry with 14 NPSM threading, suitable for conduit-based wiring in industrial settings. The base supports 30 mm operator cutouts from the Allen-Bradley 800H series, making it ideal for housing selector switches, push buttons, and pilot lights in explosion-proof control applications.
Key Features:
-
NEMA Type 7 & 9 Rated: Suitable for hazardous environments requiring explosion-proof construction
-
1-Gang Shallow Design: Space-saving form factor for compact installations
-
Aluminum Housing: Provides corrosion resistance and rugged durability
-
3/4" Dead-End Cable Entry: Standard conduit entry for industrial wiring
-
30 mm Operator Knockout: Compatible with 800H series push buttons and devices
The 800H-1HZX7 offers a certified and rugged solution for mounting 30 mm devices in explosion-proof environments.
