Description

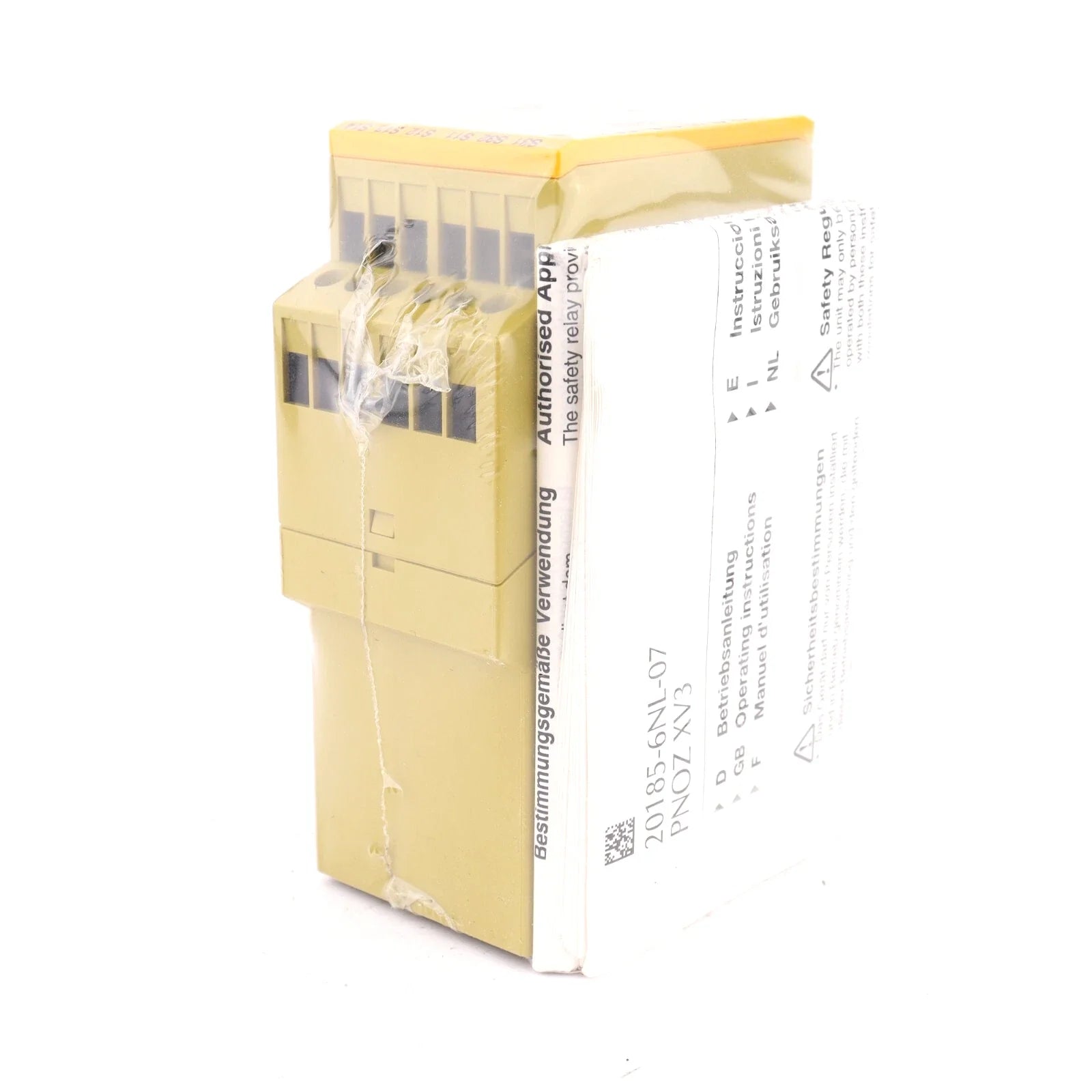

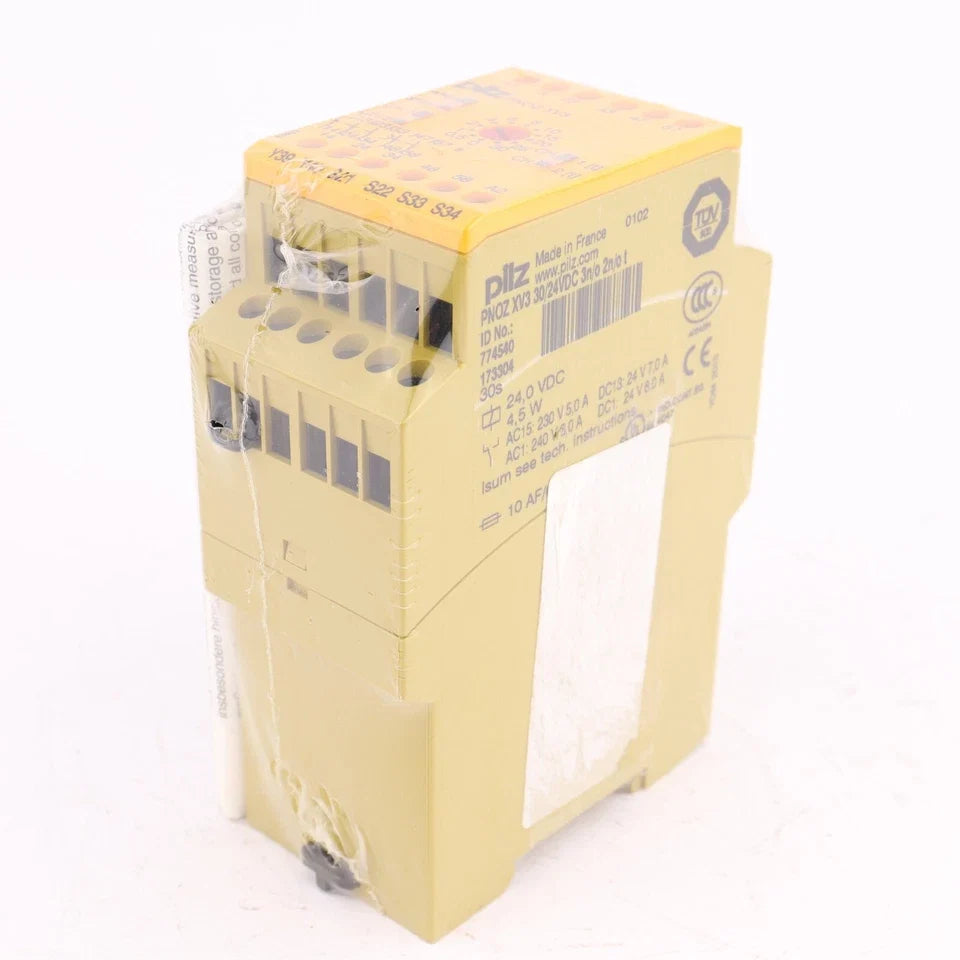

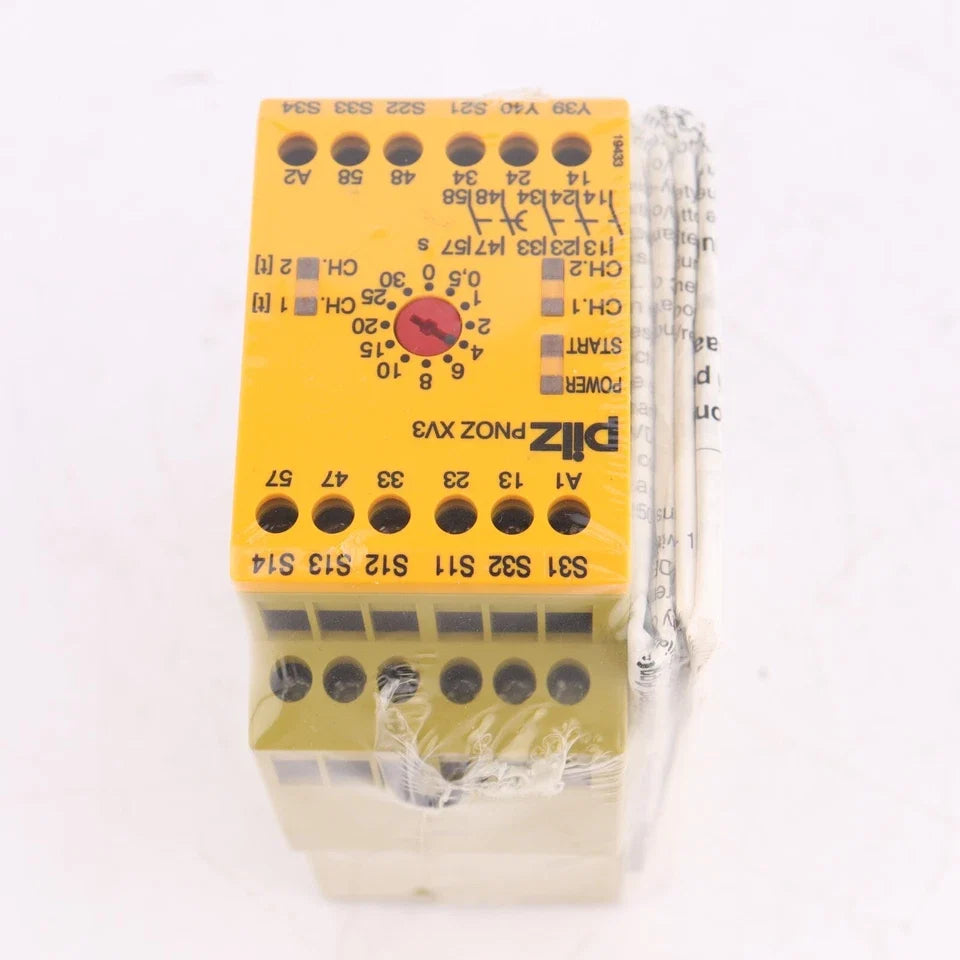

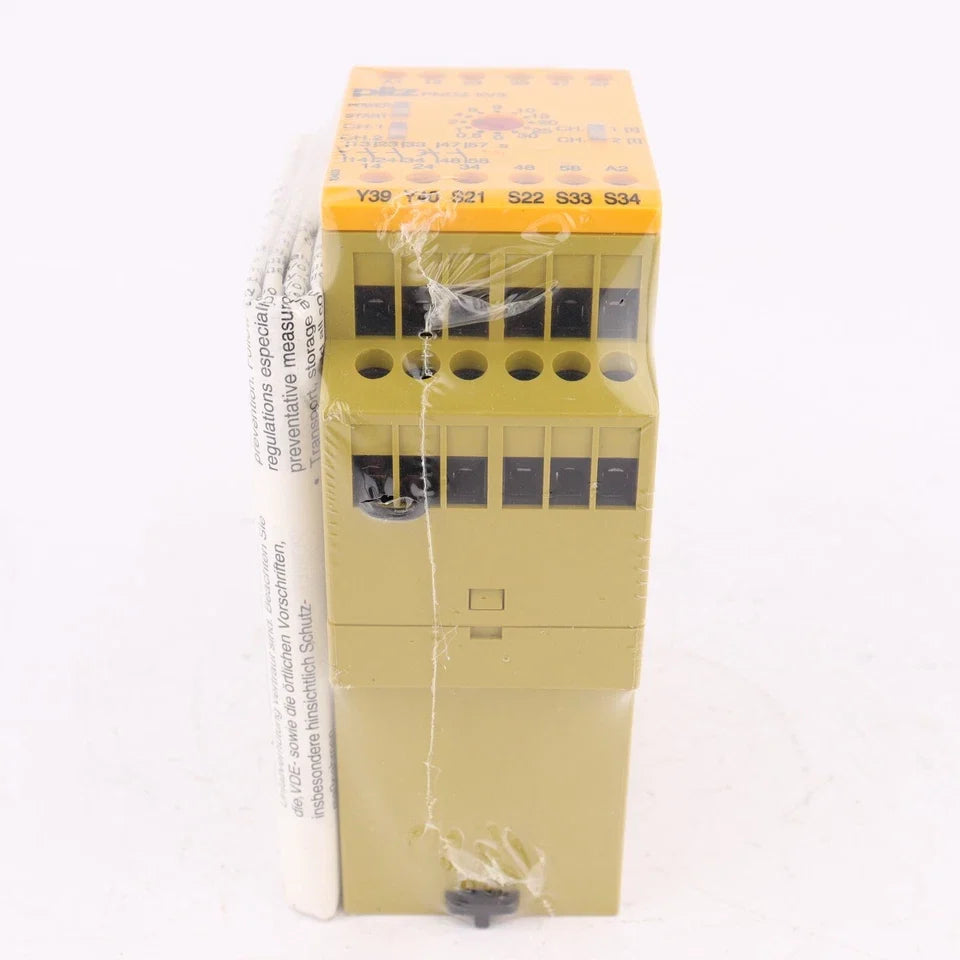

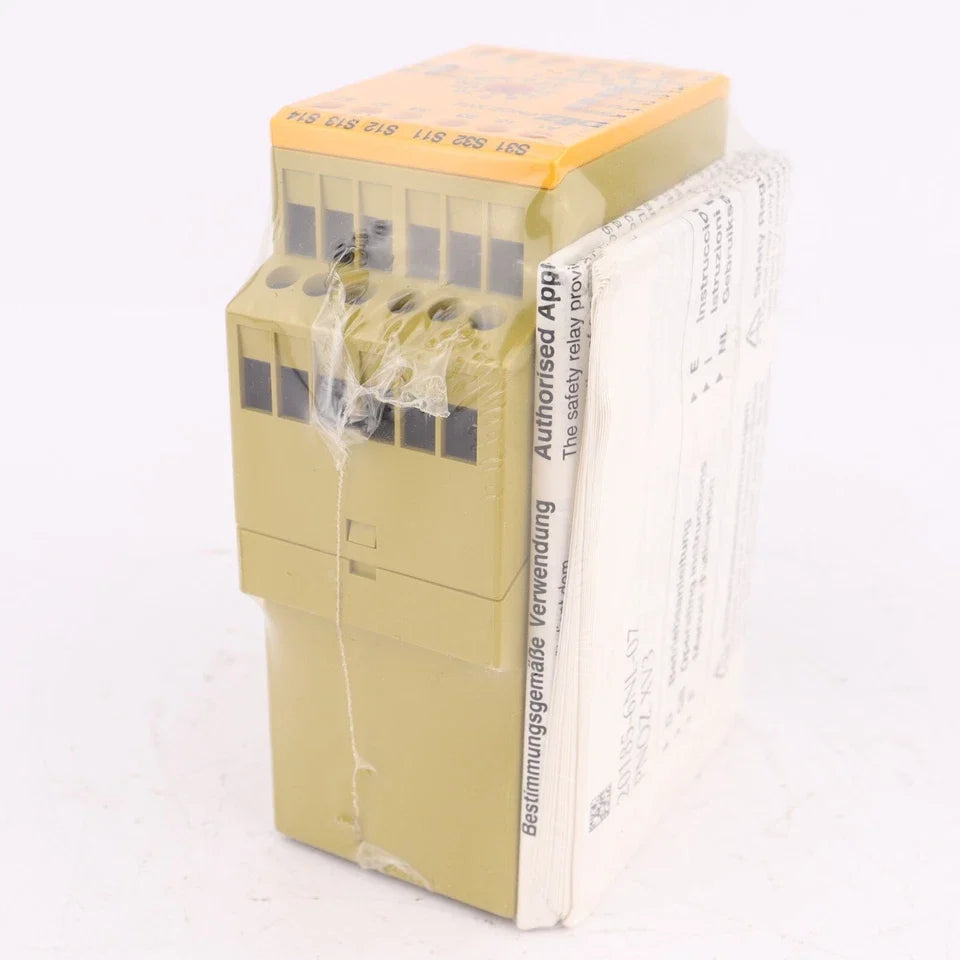

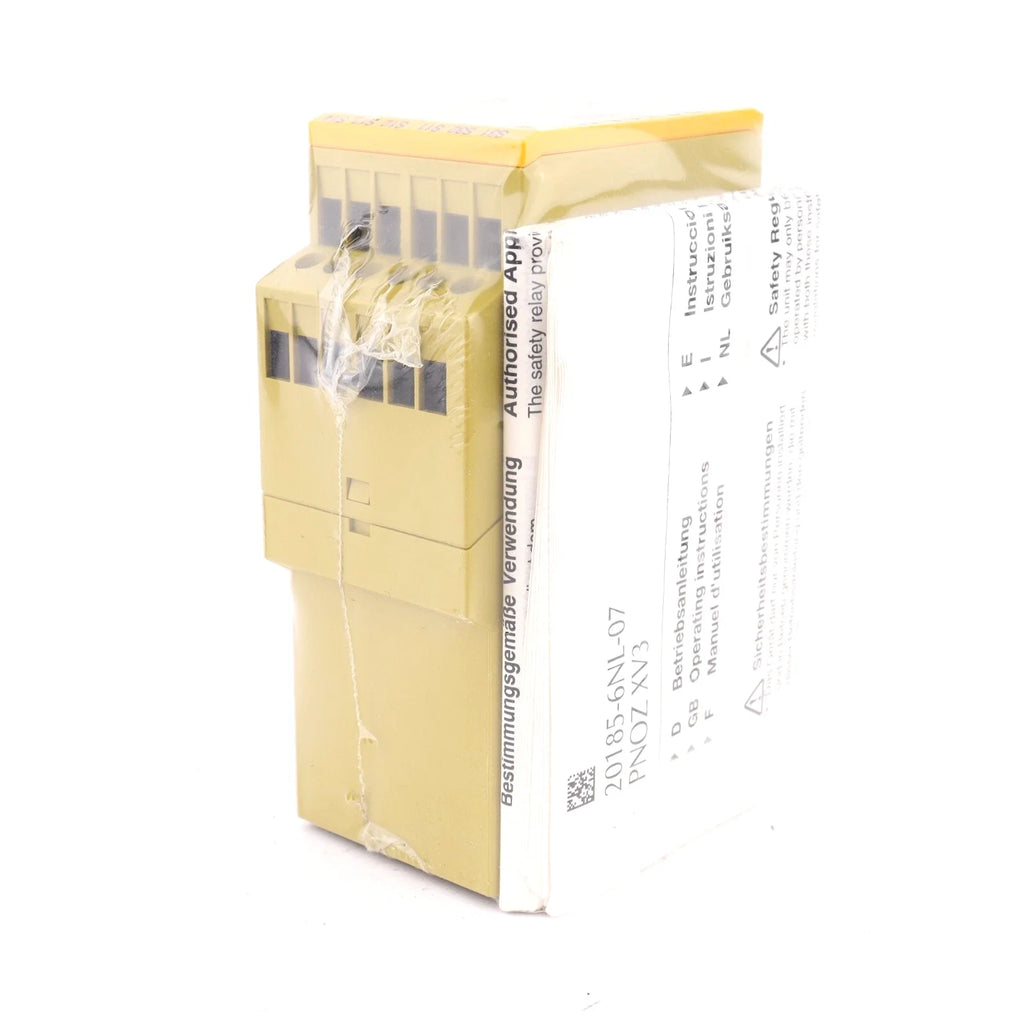

The Pilz 774540 safety relay is a standalone control device designed for monitoring emergency stop circuits and safety gates in industrial machinery. Operating on a 24 VDC supply, it provides multiple safety-rated relay outputs including integrated delay-on de-energization functions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Pilz |
| Category |
Safety Relays |
| Part Number |
774540 |
| Subcategory |
Safety Control Relays |
| Product Series |
PNOZ X Series |
| Model |
PNOZ XV3 |
| Relay Type |
Standalone safety relay |
| Supply Voltage |
24 V DC |
| Power Consumption |
4.5 W |
| Number of Inputs |
2 |
| Input Configuration |
1- or 2-channel wiring, with or without short-circuit detection |
| Safety Outputs |
3 N/O |
| Time-Delayed Outputs |
2 N/O, delay-on de-energization |
| Adjustable Delay Time |
0.1 to 30 s (12 steps) |
| Max Switching Voltage AC1 |
240 V |
| Max Switching Current AC1 |
8 A |
| Max Switching Voltage DC1 |
24 V |
| Max Switching Current DC1 |
8 A |
| Utilization Category |
AC1 / DC1, AC15 / DC13 |
| Ambient Temperature |
-10 to +55 °C |
| Humidity Rating |
93% RH at 40 °C |
| Terminal Style |
Fixed screw terminals |
| Conductor Size |
24–10 AWG |
| Dimensions (H x W x D) |
87 x 45 x 121 mm |
| Weight |
360 g |
Information About 774540
The 774540 is part of the Pilz PNOZ X safety relay series developed for compact and flexible safety control in fixed industrial installations. It supports both single-channel and dual-channel input wiring, allowing adaptation to different safety requirements and machine designs. The relay integrates two delay-on de-energization safety outputs with adjustable release times, supporting controlled shutdown of machinery where run-down time is required. Its slim 45 mm housing and integrated screw terminals enable efficient installation in space-constrained control cabinets.
Key Features
- PNOZ X Series Safety Platform: Built on the proven Pilz PNOZ X architecture to ensure consistent safety performance and standardized integration.
- Flexible Safety Input Wiring: Supports 1- or 2-channel input configurations with optional short-circuit detection to match different risk levels.
- Multiple Immediate Safety Outputs: Provides 3 normally open safety contacts for direct control of contactors and safety circuits.
- Dual Time-Delayed Safety Outputs: Includes 2 normally open delay-on de-energization contacts with adjustable delay times from 0.1 to 30 seconds in 12 defined steps.
- High Electrical Load Capacity: Safety contacts are rated up to 8 A at 240 VAC or 24 VDC, supporting direct switching of industrial loads.
- Compact Cabinet Design: Narrow 45 mm width allows high-density mounting in control panels with limited space.
- Industrial Screw Terminals: Fixed terminals support conductor sizes from 24 to 10 AWG for secure, vibration-resistant wiring.
The 774540 delivers the reliability and precision required for emergency stop and safety gate monitoring with controlled shutdown timing in industrial safety systems.
