Description

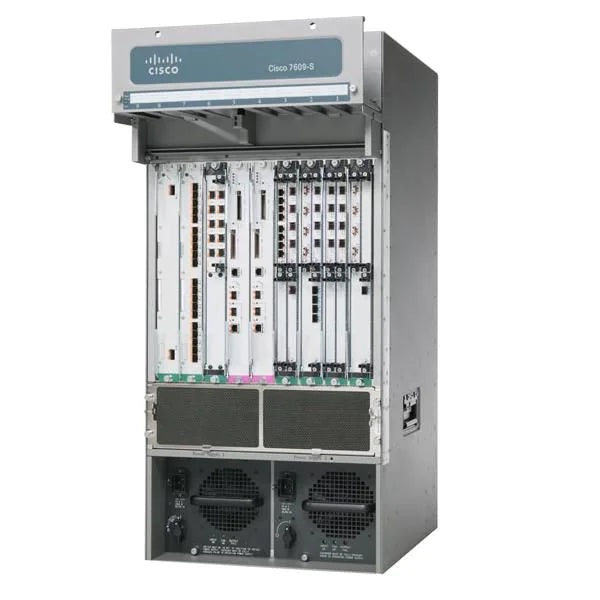

The Cisco 7609-S is a high-capacity, modular 9-slot router chassis engineered for carrier-class and enterprise core networks. Designed to deliver high availability, scalability, and performance, the 7609-S supports a broad range of routing, security, and service applications in a single 21U rack-mountable form factor.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
|
Category
|
|
|
Part Number
|
7609-S
|
| Subcatecory |
|
| Series |
7600 Series |
| Form Factor |
Rack-Mountable, 21U |
| Slot Count |
9 Modular Slots |
| Dimensions (W x D x H) |
36.75 x 17.2 x 20.7 in |
| Weight |
54.9 kg (Chassis Only) |
| Power Input (AC) |
-208 to 240 VAC (Recommended) |
| Power Input (DC) |
-48 to -60 VDC |
| Power Circuit Requirement |
30A for 4000W AC supplies |
| Operating Temperature |
32 to 104°F (0 to 40°C) |
| Storage Temperature |
-4 to 149°F (-20 to 65°C) |
| Humidity (Operating) |
10% to 85% RH, non-condensing |
| Cooling System |
Integrated Fans |
Information About 7609-S
The 7609-S is part of the Cisco 7600 Series, offering exceptional modularity and investment protection for expanding network infrastructures. It features 9 modular slots and comes standard with integrated system fans, supporting both AC and DC power options. The chassis is built for carrier-grade reliability, with an MTBF of 7 years, making it ideal for high-demand environments.
Key Features:
-
9-Slot Modular Design: Supports a wide range of network modules for scalable routing, switching, and service integration.
-
High Availability Platform: Designed for critical environments with redundant power and fan options.
-
21U Rack-Mountable Form Factor: Suitable for standard server and telecom racks.
-
Integrated Fan Assembly: Ensures optimal cooling across all installed modules.
-
Dual Power Support: Operates on both -208 to 240V AC or -48 to -60V DC input for flexible deployment.
-
Long System Lifecycle: 7-year MTBF ensures long-term stability in enterprise or service provider use.
-
Wide Environmental Range: Operates in temperatures from 0°C to 40°C with up to 85% relative humidity (non-condensing).
The 7609-S is designed to meet the performance and reliability demands of service provider cores and large-scale enterprise networks.
