Description

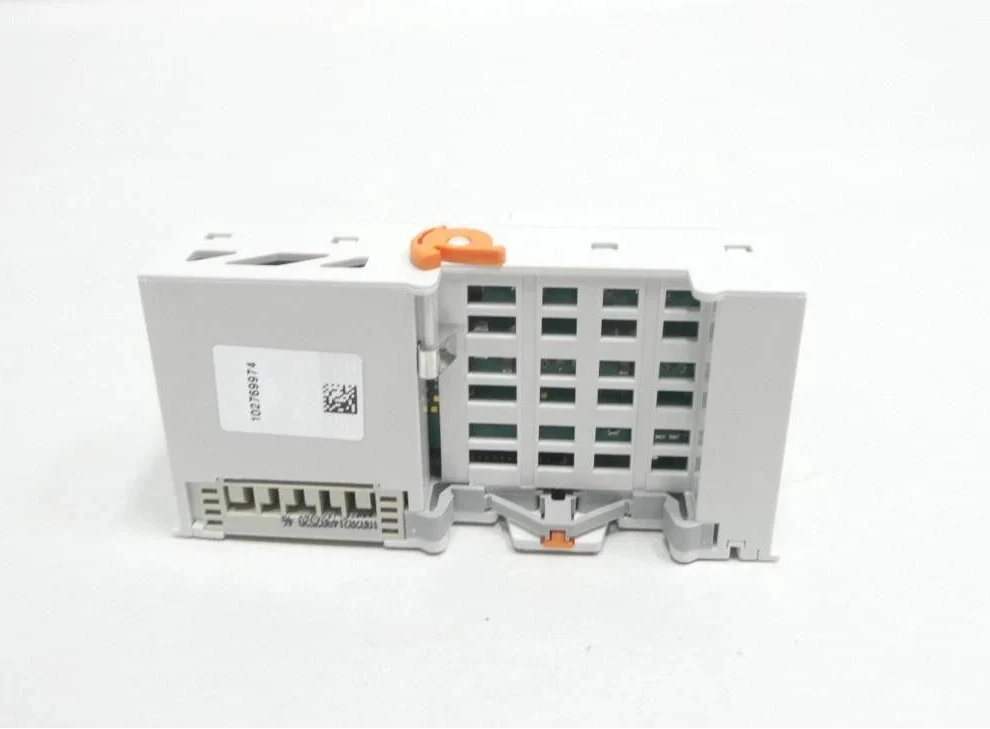

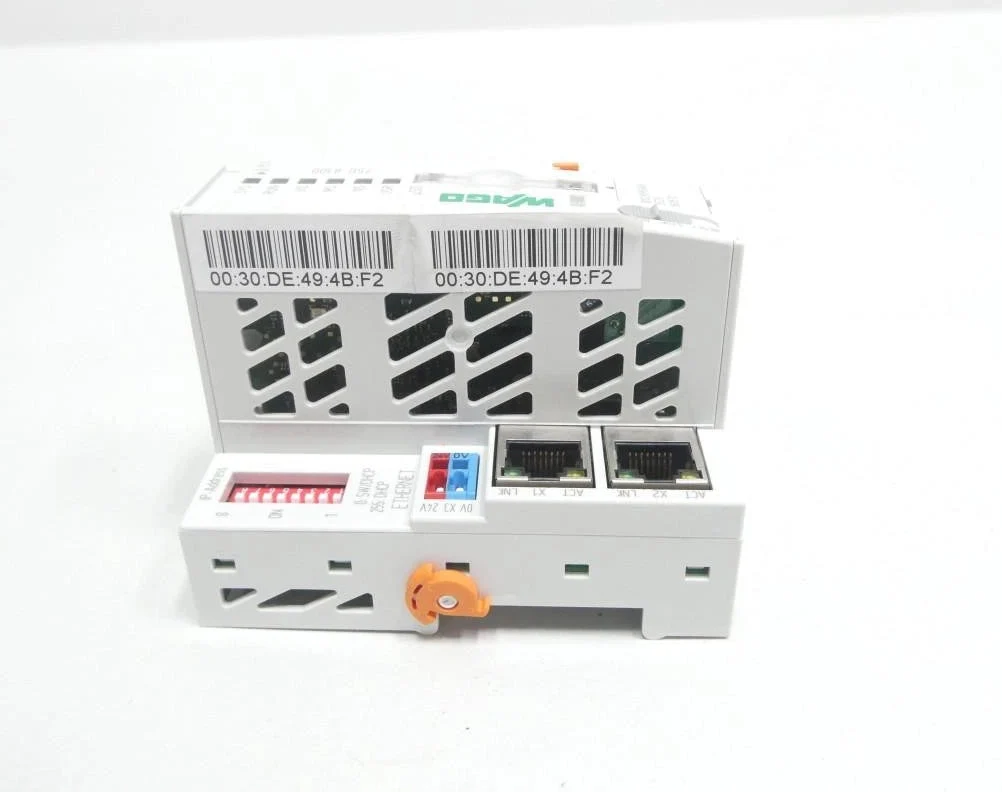

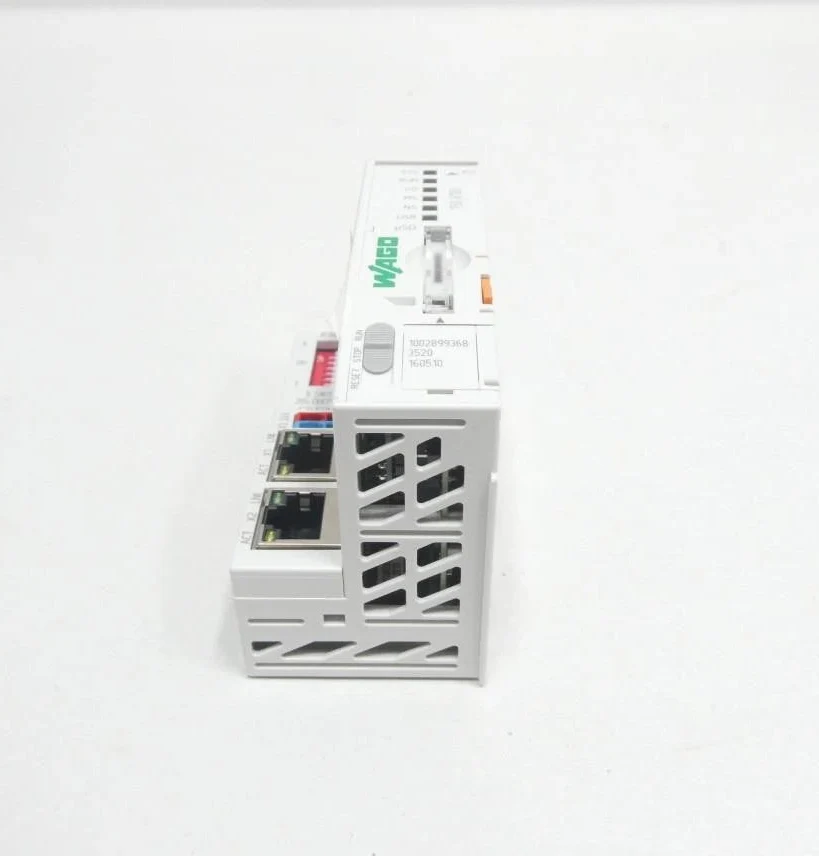

The WAGO 750-8100 PFC100 Controller is a compact PLC designed for modular control within the WAGO I/O System. Featuring dual Ethernet interfaces, part number 750-8100 supports flexible network integration and decentralized automation across industrial and building applications. It delivers reliable real-time control using a Linux-based operating system and IEC 61131-3 compliant programming.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
WAGO |
| Category |
Industrial Automation Controllers |
| Part Number |
750-8100 |
| Subcategory |
PLC Controllers |
| Controller Series |
PFC100 |
| CPU |
Cortex-A8, 600 MHz |
| Operating System |
Real-Time Linux 3.18 with PREEMPT_RT |
| Programming Environment |
e!COCKPIT |
| Supported Languages |
IEC 61131-3 (IL, LD, FBD, CFC, ST, SFC) |
| Ethernet Interfaces |
2 × Ethernet (10/100 Mbit/s) |
| Supported Protocols |
Modbus TCP/UDP, EtherNet/IP Adapter, MQTT |
| Main Memory (RAM) |
256 MB |
| Internal Flash Memory |
256 MB |
| Program/Data Memory |
10 MB (dynamically distributed) |
| Removable Storage |
microSD Card Slot |
| Max. I/O Modules per Node |
250 |
| Supply Voltage (System) |
24 VDC (-25…+30%) |
| Mounting Type |
DIN-35 Rail |
| Protection Rating |
IP20 |
| Isolation |
500 V System / Field |
| Weight |
Approx. 0.6 lb |
Information About 750-8100
The 750-8100 is part of WAGO’s PFC100 controller family, engineered for scalable and maintenance-free automation solutions. It supports direct connection of WAGO 750/753 Series I/O modules, enabling flexible system expansion without additional couplers. The controller operates on a real-time Linux 3.18 OS with a PREEMPT_RT patch to ensure deterministic performance. Designed for machinery, process automation, and building systems, it combines network communication, control logic, and diagnostics in a single compact unit.
Key Features:
- PFC100 Compact PLC Design: Integrates control, networking, and diagnostics in one controller.
- Dual Ethernet Interfaces: Two configurable Ethernet ports with integrated switch support line topology wiring.
- IEC 61131-3 Programming Support: Compatible with IL, LD, FBD, CFC, ST, and SFC languages.
- Real-Time Linux Operating System: Runs Linux 3.18 with PREEMPT_RT patch for deterministic control.
- e!COCKPIT Programming Environment: Enables configuration, programming, and diagnostics through a unified platform.
- Integrated Web Server: Provides web-based configuration and real-time status monitoring.
- Wide Communication Protocol Support: Includes Modbus TCP/UDP, EtherNet/IP Adapter, MQTT, and standard Ethernet services.
- Direct I/O Module Connection: Supports all digital, analog, and specialty modules of the 750/753 Series.
- High Module Capacity: Supports up to 250 I/O modules per node for scalable automation.
- Maintenance-Free Operation: Designed for long-term industrial use without routine servicing.
The 750-8100 delivers the reliability and precision required for decentralized PLC control in industrial, process, and building automation systems.
