Description

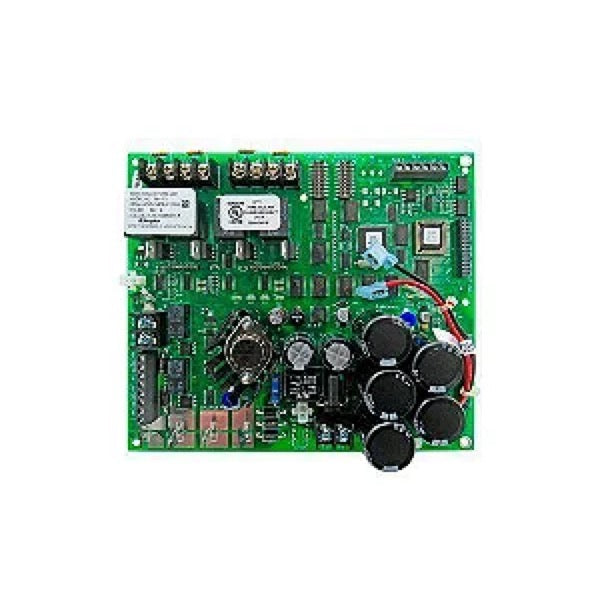

The Simplex 742-590 is a 2x40 IFC door assembly PC board designed for use with 4100U and 4100ES fire alarm control panels. This board provides interface support and reliable integration within the door-mounted assemblies of the system.

Technical Specifications

Information About 742-590

The 742-590 is a dedicated PC board that forms part of the 2x40 IFC (Indicator/Function Control) door assembly used in Simplex 4100U and 4100ES panels. It supports programmable switches, LED indicators, and display integration to enhance operator interface at the cabinet door. The board enables efficient configuration and monitoring of system points, making it critical for fire alarm control customization. While discontinued, it continues to play an important role in servicing and maintaining legacy 4100U/ES systems.

Key Features:

• IFC Door Assembly Board: Designed for 2x40 Indicator/Function Control assemblies.
• 4100U/ES Compatibility: Supports Simplex 4100U and 4100ES fire alarm panels.
• Operator Interface: Provides interface functions for switches, LEDs, and indicators.
• PC Board Construction: Reliable PCB design for long-term use.
• Customizable Functions: Supports site-specific programming of control points.
• Direct Mounting: Installed within door assemblies of fire alarm cabinets.
• Legacy System Role: Essential for servicing existing 4100U/ES installations.
• Discontinued Part: No longer manufactured but critical for system maintenance.
• Manufacturer Quality: Built to Simplex standards for life-safety equipment.

The 742-590 delivers the reliability and precision required for operator interface and system control within Simplex fire alarm panels.
