Description

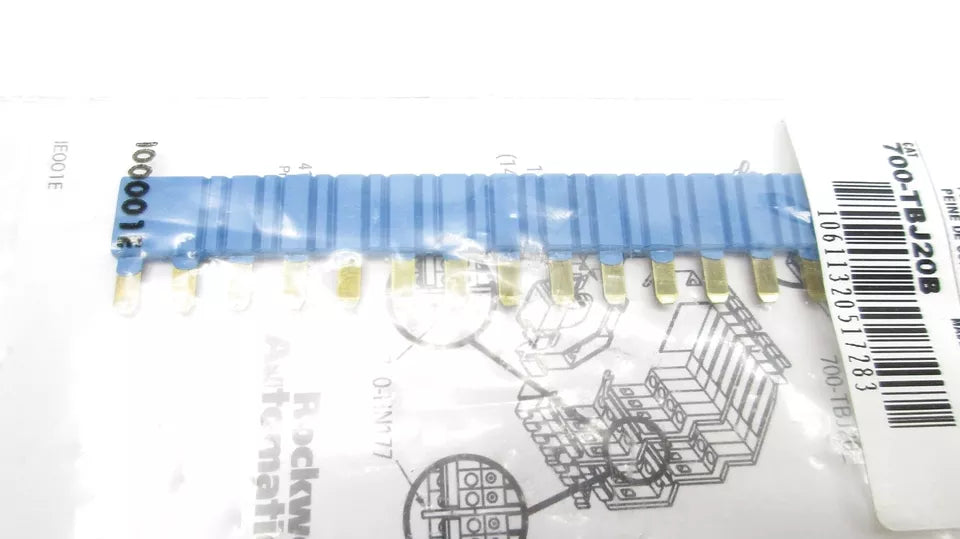

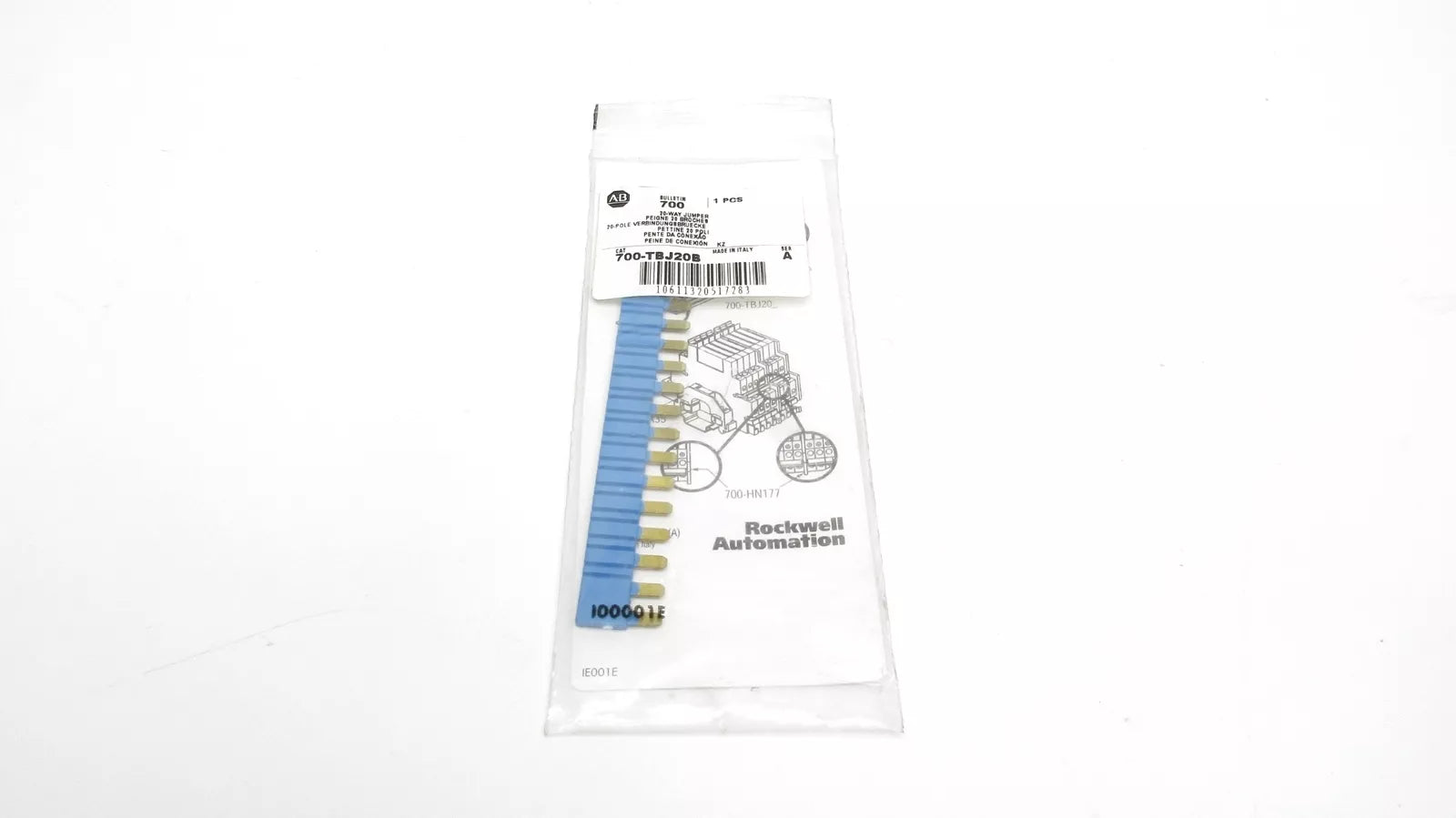

The Allen-Bradley 700-TBJ20B is a 20-way connection jumper link designed for quick and reliable interconnection of terminals in 700-HL relay bases. With a vibrant blue color for easy identification, this jumper significantly reduces wiring time and enhances panel organization.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
Automation and Control Systems
|
|
Part Number
|
700-TBJ20B
|
| Subcatecory |
|
| Amperage |
36 Amp |
| Standard |
CCC,CSA,CUL,KC,UL |
| Voltage |
240 Volt |
| Applications |
700HL 1-Pole Relay |
| Type |
Jumper Link |
| Color |
Blue |
| Used With |
Relay Socket |
| Number of Ways |
20 |
| Weight |
0.6600 lb |
Information About 700-TBJ20B
The 700-TBJ20B is used specifically with 1-pole 700-HL series relays, allowing up to 20 terminals to be electrically bridged with a single component. It supports a maximum current rating of 36 Amps and a voltage rating of 240V, ensuring dependable performance in control panels and automation systems.
Key Features:
-
20-Way Jumper Link: Connects up to 20 terminals in one operation.
-
Compatible with 700-HL Series Relays: Specifically designed for 1-pole base configurations.
-
Blue Color Coding: Enhances visual clarity and wiring identification.
-
High Current Rating: Supports up to 36 A, suitable for demanding relay circuits.
-
Voltage Rating: 240V: Safe operation within industrial control voltages.
-
Standards Compliant: UL, CSA, CUL, CCC, KC certified for global use.
-
Easy Installation: Reduces wiring effort and improves layout efficiency.
The 700-TBJ20B simplifies terminal block connectivity and is a reliable accessory for modular relay systems in automation, machinery, and process control.
