Description

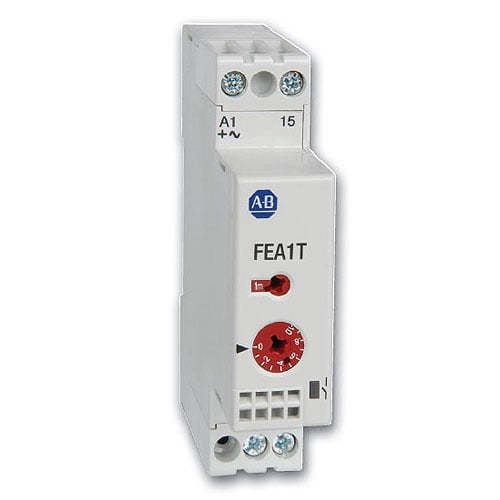

The Allen-Bradley 700-FEL3TU23 is a compact, cost-effective timing relay designed for general-purpose control applications. It offers flexible time delay settings and dependable performance in automation systems.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
700-FEL3TU23
|
| Subcatecory |
|
| Timing Range |
0.05 seconds to 10 hours |
| Function |
Pulse Converter |
| Contact Configuration |
SPDT (Single Pole Double Throw) |
| Output Contacts |
1 NO (Changeover) |
| Voltage Range |
24–48V DC / 24–240V AC (50/60 Hz) |
| Time Setting Options |
6 Ranges |
| Mounting Type |
DIN Rail / Panel Mount |
| Standard Compliance |
IEC, UL, CSA |
Information About 700-FEL3TU23
The 700-FEL3TU23 is a general-purpose economy timing relay from Allen-Bradley, engineered to support pulse conversion operations. It features a single-pole double-throw (SPDT) contact configuration, allowing for simple yet effective control switching. This relay supports a wide timing range from 0.05 seconds to 10 hours, adjustable across six different time settings. It operates on both 24–48V DC and 24–240V AC (50/60Hz), providing versatile voltage compatibility for various applications. The device is built for reliable integration into control panels or standalone use in timed switching tasks.
Key Features:
-
Wide Timing Range: Adjustable from 0.05 seconds to 10 hours for flexible control
-
Multi-Voltage Operation: Accepts 24–48V DC or 24–240V AC 50/60 Hz
-
Pulse Converter Function: Ideal for pulse-to-delay or delay-to-pulse applications
-
SPDT Contact: Provides single normally open (changeover) switching
-
Compact and Economical Design: Optimized for space-saving and cost-efficiency
The 700-FEL3TU23 combines functionality and flexibility, making it well-suited for general automation and timing applications.
