Description

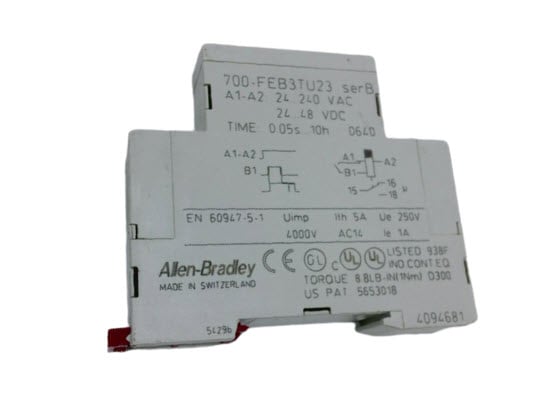

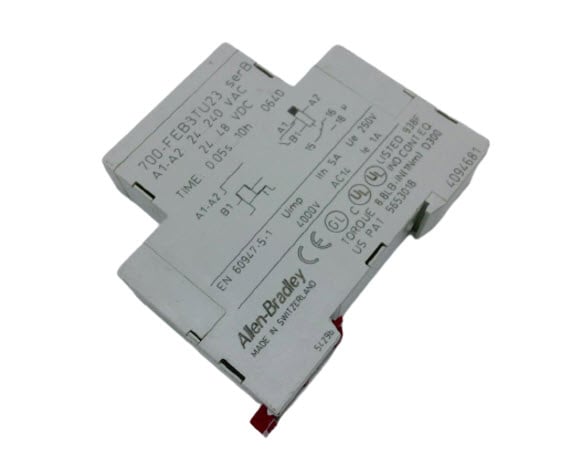

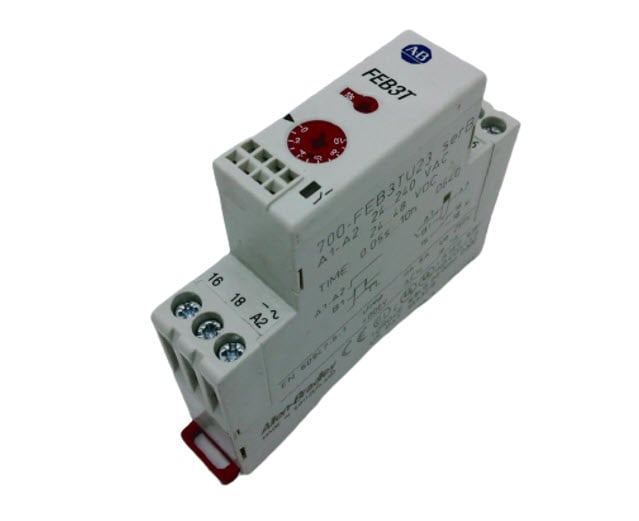

The Allen-Bradley 700-FEB3TU23 is a compact, DIN rail-mounted off-delay timing relay from the 700-FE Economy series. It features a single-pole double-throw (SPDT) contact configuration and supports a wide timing range from 0.05 seconds to 10 hours.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
|
| Part Number |
700-FEB3TU23 |
| Subcategory |
|
| Control Voltage |
24-48V DC / 24-240V 50/60Hz |
| Contact Configuration |
1 C/O ( Changeover - SPDT) |
| Timing Range |
0.05 seconds to 10 hour (6 settings)Time Ranges:*0.05 ...1 s*0.5 ...10 s*0.05 ...1 min*0.5 ...10 min*0.05 ...1 hr*0.5 ...10 hr |
| Timing Function |
Off-Delay |
| Relay Type |
Economy Timing Relay |
| Mounting Type |
DIN Rail Mounted |
| Contact Rating |
5 A |
| Frequency |
50/60 Hz |
| Surge Protection |
Coil Surge Protection Included |
| Weight |
0.15 kgs |
Information About 700-FEB3TU23
The Allen-Bradley 700-FEB3TU23 is an off-delay timing relay from the 700-FE Economy series, designed for industrial control applications requiring precise timing functions. This compact relay is DIN rail-mounted and offers a range of features suitable for various automation tasks.
Key Features:
-
Function: Off-Delay
-
Timing Range: 0.05 seconds to 10 hours (6 selectable ranges)
-
Control Voltage: 24–48 V DC / 24–240 V AC, 50/60 Hz
-
Contact Configuration: SPDT (Single-Pole Double-Throw)
-
Contact Rating: 5 A at 250 V AC (resistive load)
-
Mounting: 35 mm DIN rail
-
Connection Type: Screw terminals
-
Housing Width: 17.5 mm
-
Weight: Approximately 60 g
-
Operating Temperature Range: –25°C to +60°C
-
Storage Temperature Range: –40°C to +85°C
-
Protection Ratings: IP40 (housing), IP20 (terminals)
-
Mechanical Service Life: 20 million cycles
-
Certifications: UL, CSA, CE
