Description

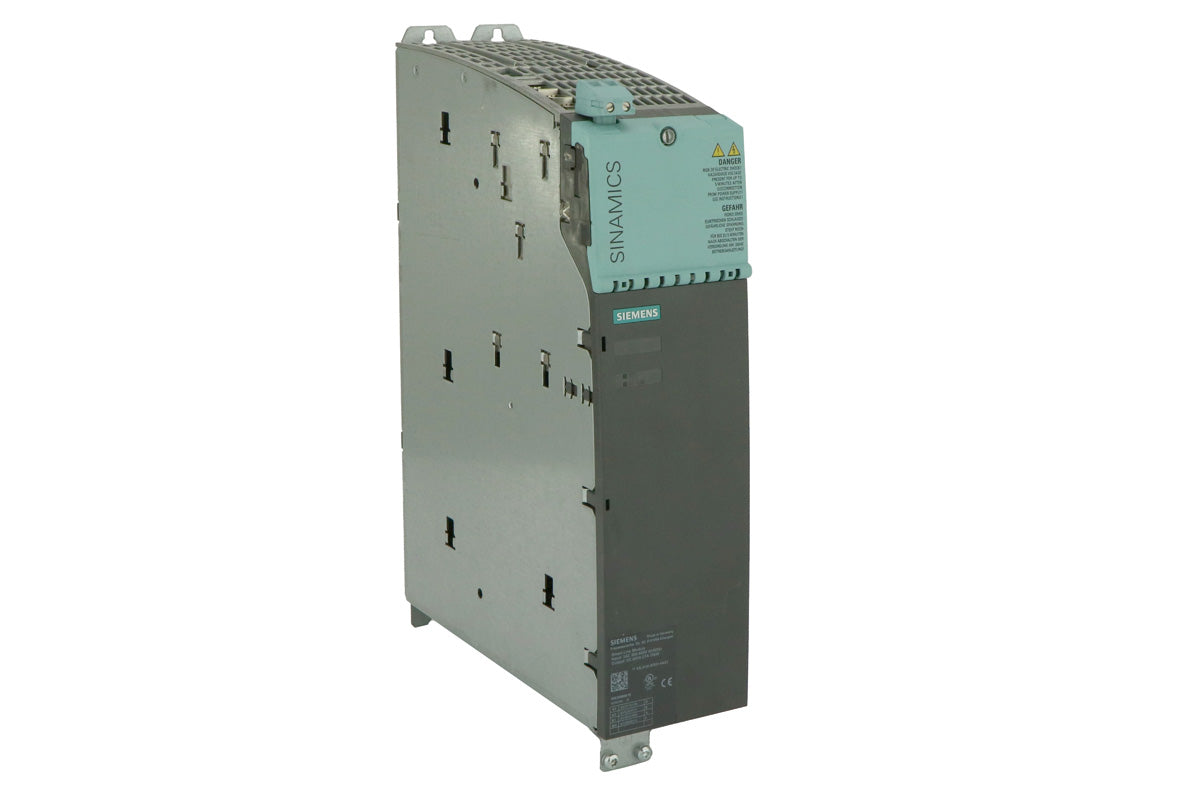

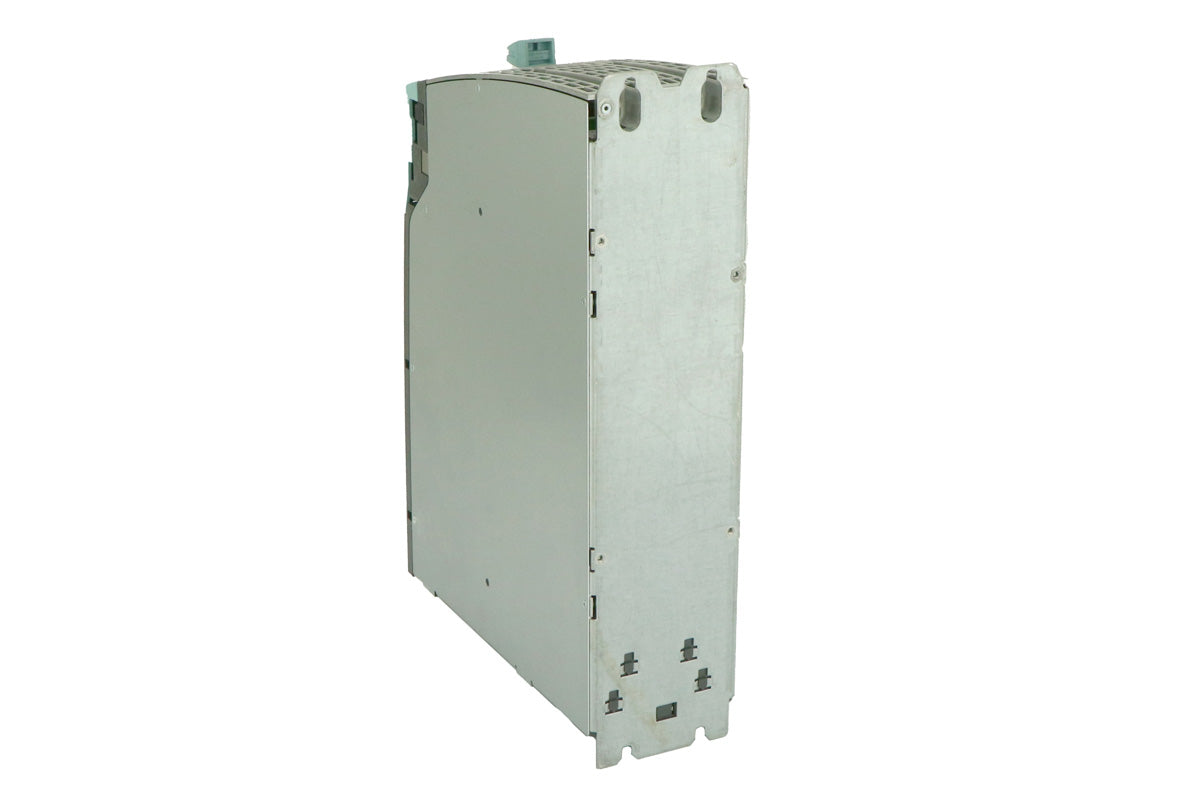

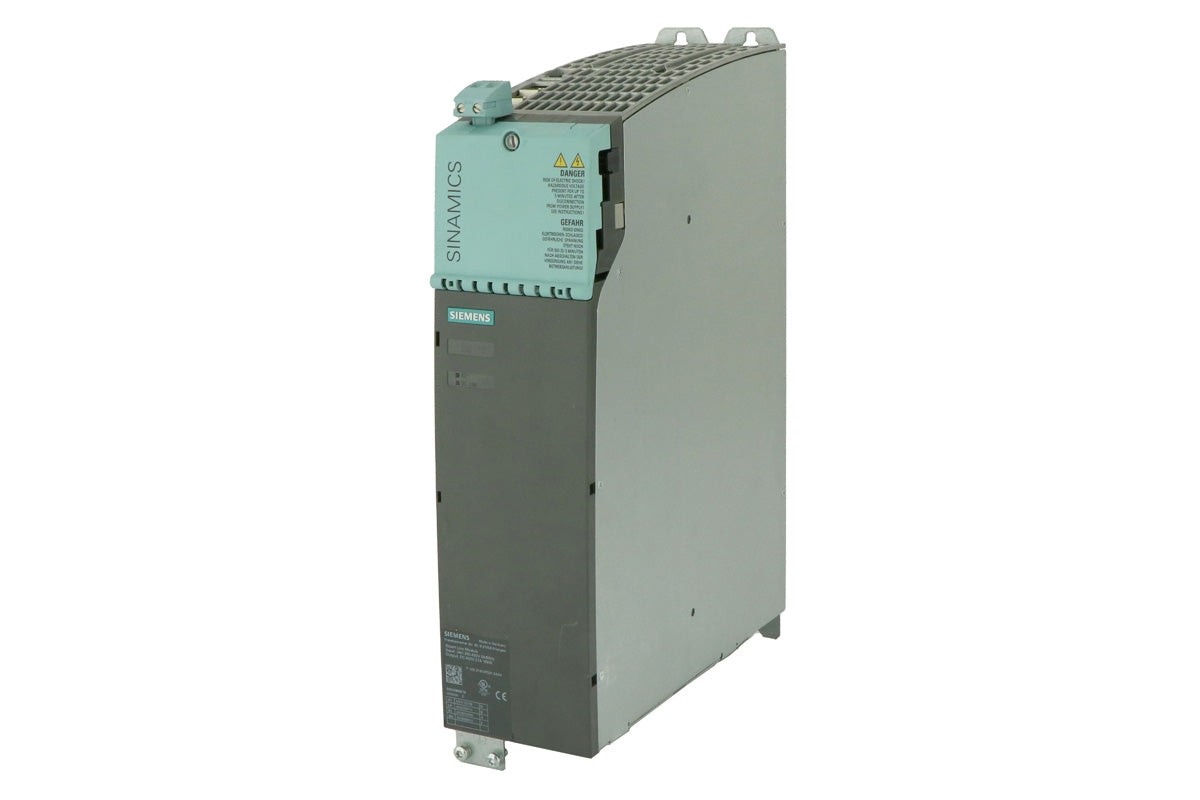

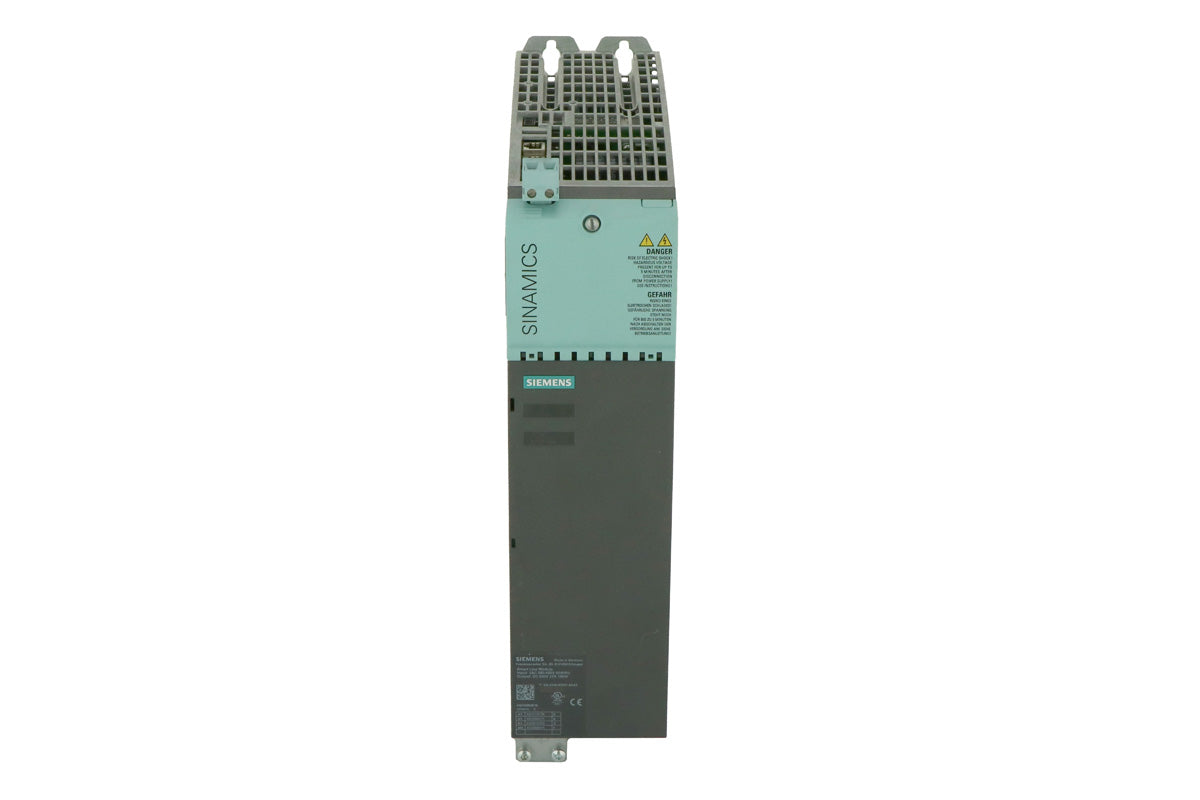

The Siemens 6SL3130-6TE21-6AA3 is a SINAMICS S120 Smart Line Module with a 16 kW power rating. It accepts 3-phase 380–480 VAC input and provides a 600 VDC, 27A output for reliable power conversion in industrial drive systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Power Modules |
| Part Number |
6SL3130-6TE21-6AA3 |
| Subcategory |
Smart Line Module |
| Series |
SINAMICS S120 |
| Product Type |
Line Module |
| Input Voltage |
3AC 380–480 V, 50/60 Hz |
| Output Voltage |
600 VDC |
| Output Current |
27 A |
| Power Rating |
16 kW |
| Cooling Method |
Internal air cooling |
| Application |
Industrial drive and automation systems |
| Protection Class |
Standard IP-rated for cabinet installation |
| Weight |
13.23 lbs |
Information About 6SL3130-6TE21-6AA3
The 6SL3130-6TE21-6AA3 is part of Siemens’ SINAMICS S120 family, specifically designed as a Smart Line Module for regenerative DC link supply. With a rated output of 600 VDC at 27A and a 16 kW capacity, it converts incoming 3-phase AC power into a stable DC supply for drive systems. Operating on a wide input voltage range of 380–480 VAC at 50/60 Hz, this module is well-suited for global industrial environments. Its efficient design with internal cooling ensures reliable operation while supporting dynamic applications in automation and motion control.
Key Features:
- Smart Line Module: Converts 3-phase AC supply into regulated 600 VDC output for SINAMICS S120 systems.
- Rated Power: Provides 16 kW capacity for stable and efficient drive operation.
- Output Performance: Supplies 600 VDC at 27A, ensuring consistent power delivery to connected inverters.
- Wide Input Range: Operates on 380–480 VAC, 50/60 Hz, adaptable to global industrial standards.
- High Efficiency: Designed for low energy losses, improving system performance and reducing operating costs.
- Cooling System: Uses internal air cooling for dependable thermal management without additional components.
- Robust Integration: Engineered for SINAMICS S120 drive systems, ensuring seamless system compatibility.
- Industrial Reliability: Built for demanding automation tasks in CNC, robotics, and process control.
- Compact Design: Lightweight at 13.23 lbs, simplifying handling and installation in electrical cabinets.
- Siemens Engineering: Part of the trusted SINAMICS family, ensuring long service life and consistent quality.
The 6SL3130-6TE21-6AA3 delivers the reliability and precision required for efficient DC link power supply in SINAMICS S120 drive applications.
