Description

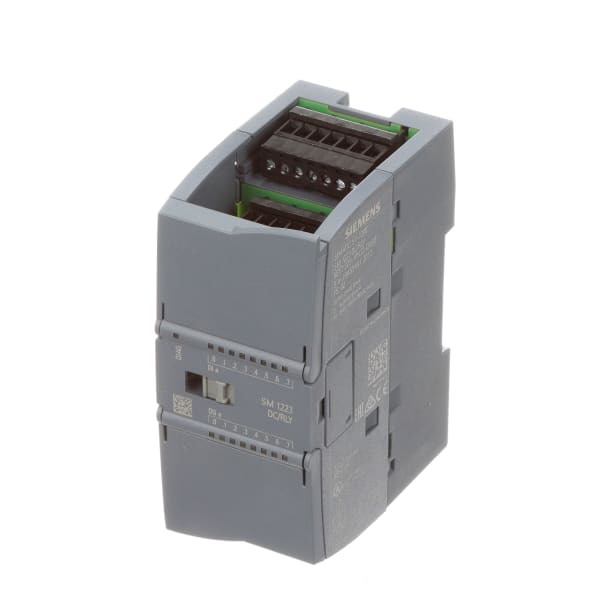

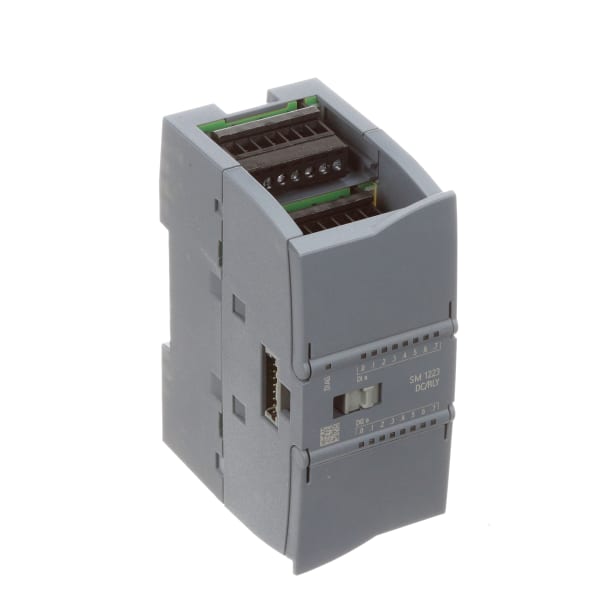

The Siemens 6ES7223-1PH32-0XB0 is a digital I/O expansion module from the SIMATIC S7-1200 automation system series. Featuring 8 digital inputs and 8 relay outputs, this compact module is designed to extend the I/O capacity of an S7-1200 PLC, providing versatile connection options for field devices in industrial automation applications.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Siemens
Category	PLCs and Accessories
Part Number	6ES7223-1PH32-0XB0
Subcatecory	PLC Expansion Modules
Series	SIMATIC S7-1200
Module Type	Digital I/O Module (SM 1223)
Digital Inputs	8 x 24 V DC (Sink/Source)
Digital Outputs	8 x Relay Outputs (2 A each)
Output Type	Relay
Mounting	DIN Rail
Terminal Type	Removable Connectors
Net Weight (kg)	0,218 Kg
Packaging Dimension	8,90 x 11,10 x 5,70
Package size unit of measure	CM





Information About 6ES7223-1PH32-0XB0

The 6ES7223-1PH32-0XB0, also known as SM 1223, is engineered for seamless integration with SIMATIC S7-1200 CPUs. It offers 8 digital inputs rated at 24 V DC, supporting both sink and source wiring, and 8 relay outputs rated for 2 A per channel, allowing the switching of higher-current loads such as solenoids, contactors, and lamps.

Key Features:

• 8 Digital Inputs (24 VDC): Compatible with a variety of field sensors.

• 8 Relay Outputs (2 A): Enables control of actuators and switching devices.

• Sink/Source Input Wiring: Flexible wiring options for different configurations.

• Designed for SIMATIC S7-1200: Fully compatible and auto-detectable by the CPU.

• Compact and DIN Rail Mountable: Space-saving installation in control cabinets.

• Removable Terminals: Simplifies installation and maintenance procedures.

The 6ES7223-1PH32-0XB0 is a robust and flexible I/O module that enhances automation solutions by offering additional digital channels for both monitoring and control tasks.
