Description

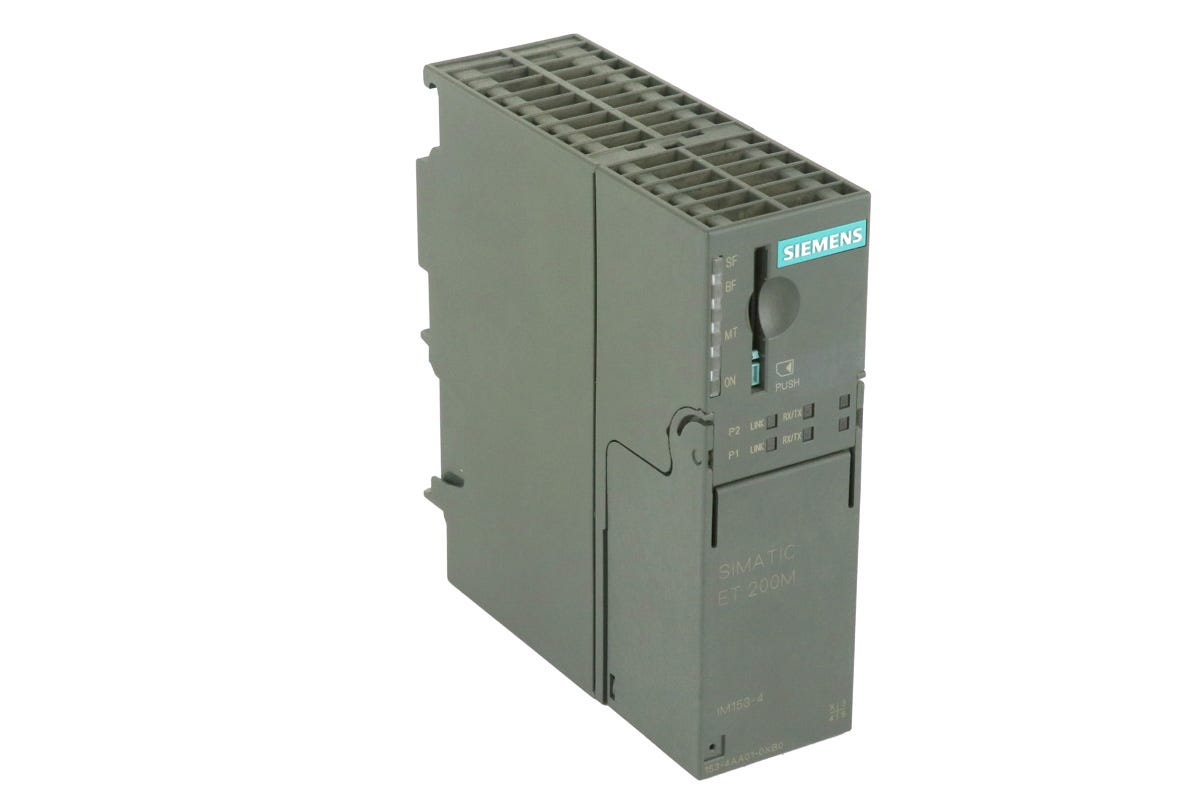

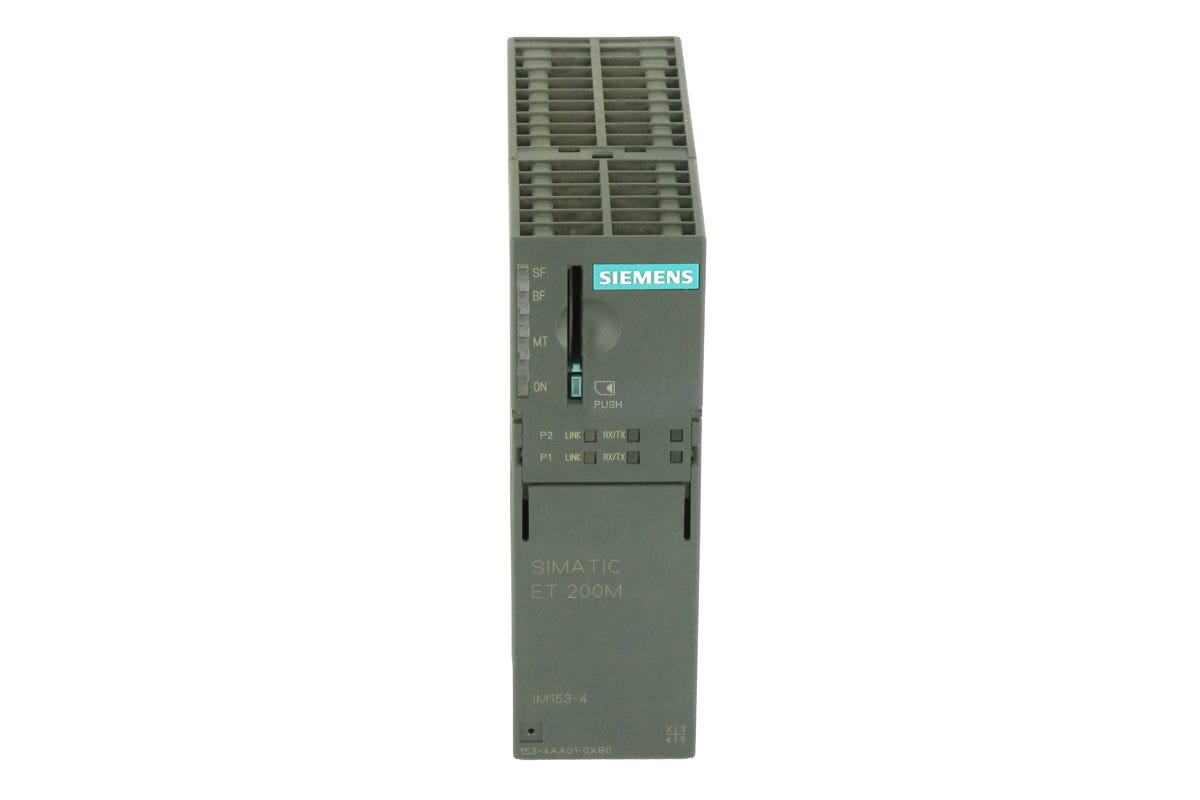

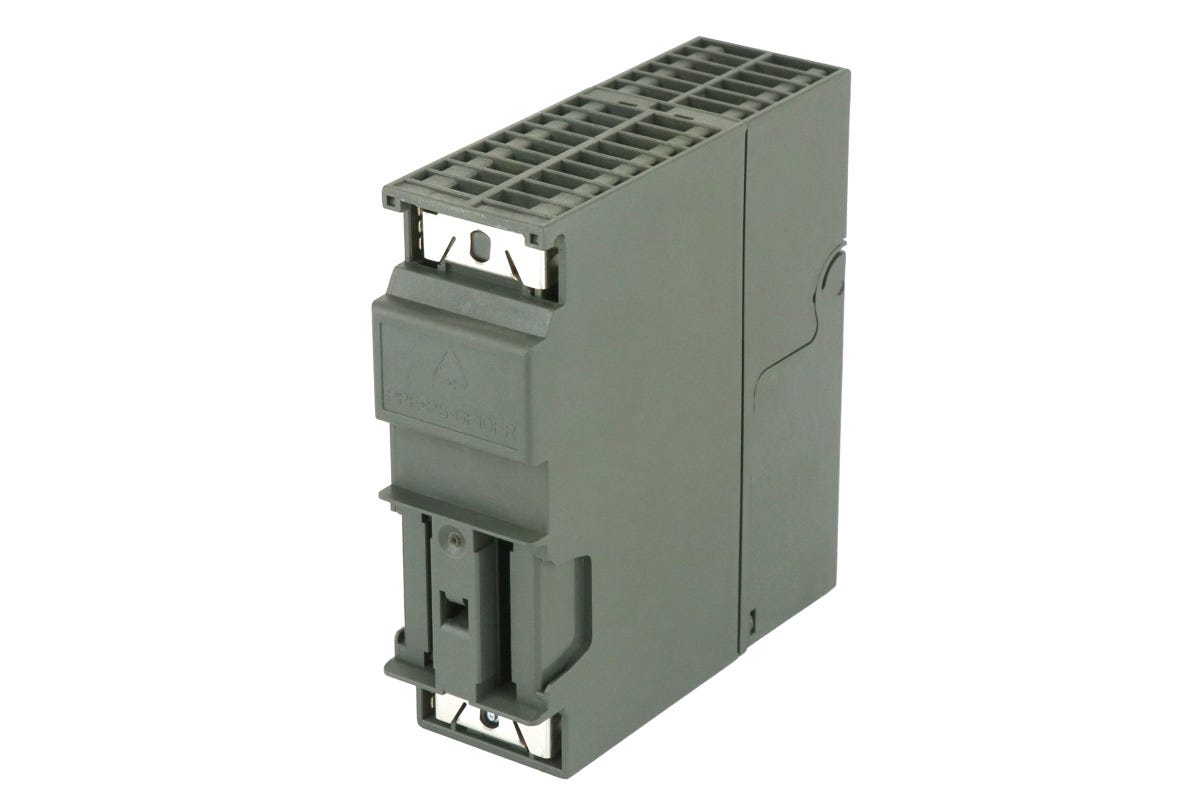

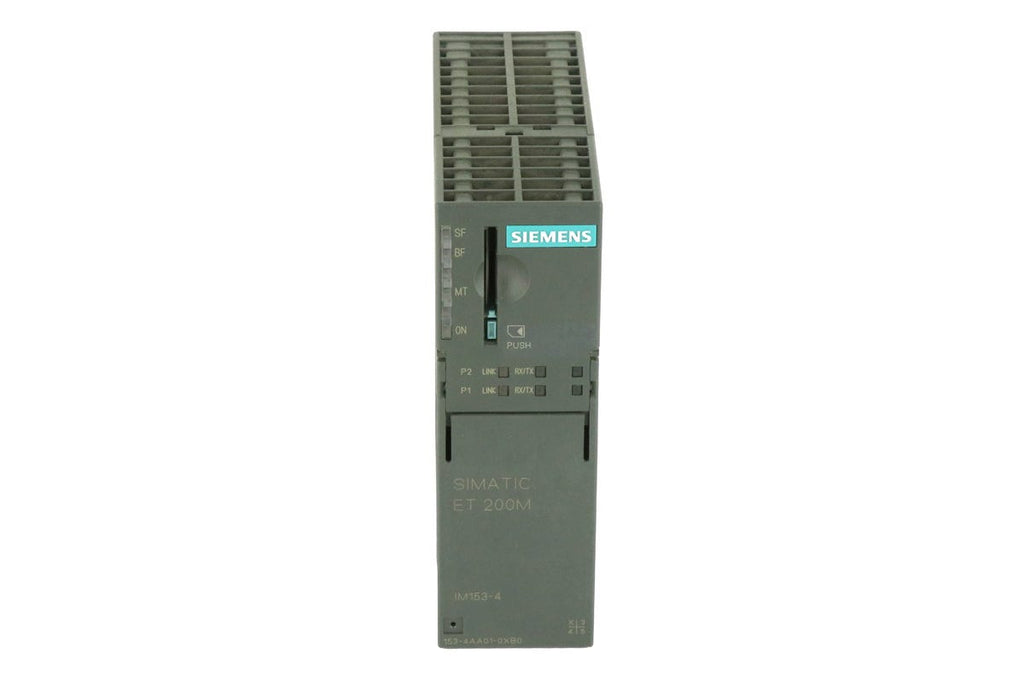

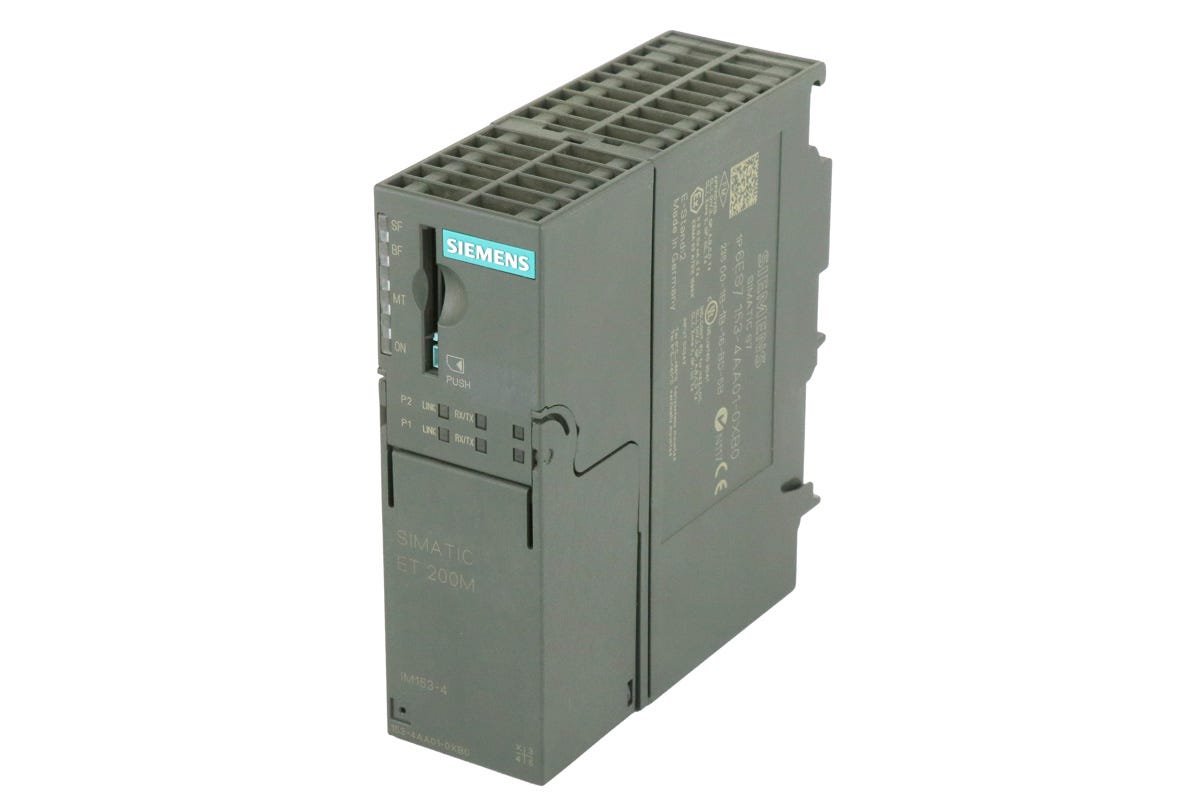

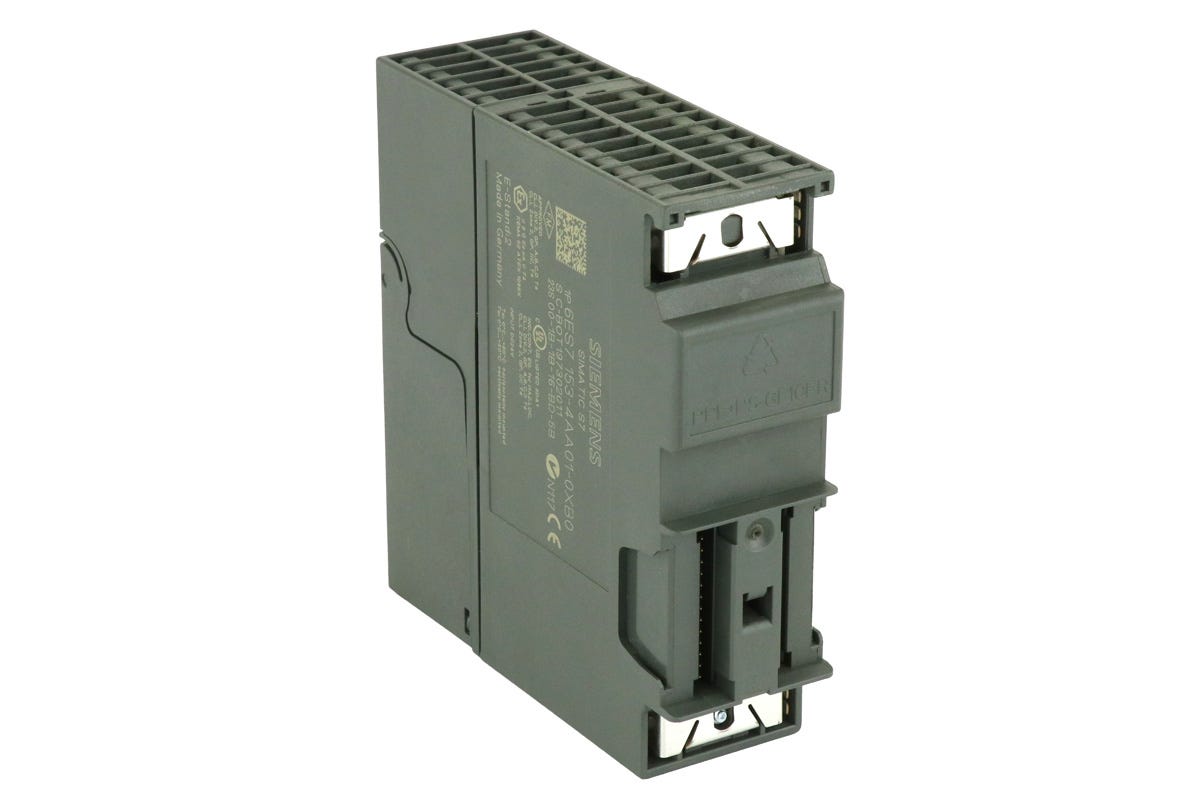

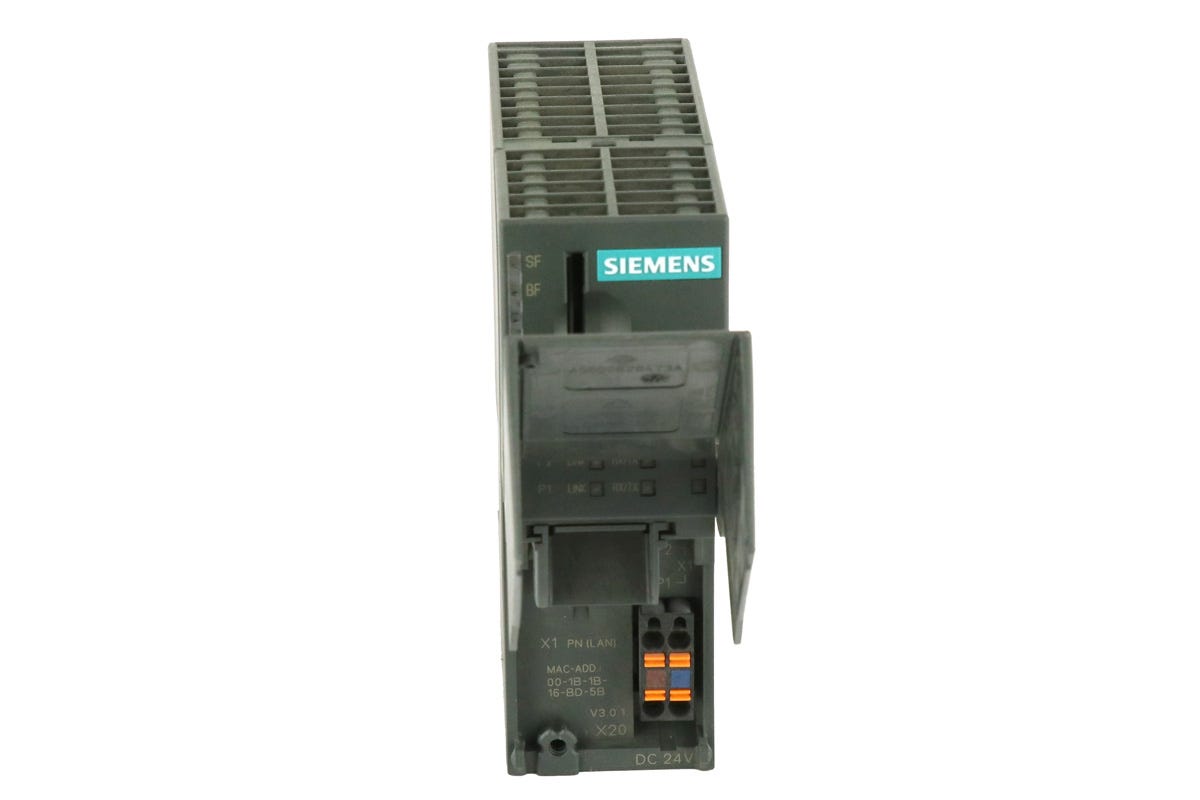

Siemens 6ES7153-4AA01-0XB0 Interface Module, ET 200S IM153-4, for connecting ET 200S I/O to PROFIBUS networks. Enables distributed automation with high-speed data exchange and modular expandability.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Siemens
Category	PLCs and Accessories
Part Number	6ES7153-4AA01-0XB0
Subcategory	PLC Expansion Modules
Supply Voltage	20,4-28,8V DC
Protection Type	IP20
Weight	0.263 kgs





Information About 6ES7153-4AA01-0XB0

The Siemens 6ES7153-4AA01-0XB0 is a SIMATIC DP ET 200M IM 153-4 PN IO interface module designed to connect up to 12 S7-300 modules to a PROFINET IO network. It facilitates seamless communication between distributed I/O devices and central controllers in industrial automation systems.

Key Features:

• PROFINET IO Connectivity: Enables integration of ET 200M I/O modules into PROFINET networks, supporting real-time data exchange.

• Isochronous Real-Time Communication: Supports Class 1 and Class 2 isochronous communication, ensuring precise synchronization for time-critical applications.

• Module Exchange Without Programming Device (PG): Allows for the replacement of modules without the need for a programming device, simplifying maintenance procedures.

• Operation Without Memory Card (MMC): Eliminates the requirement for an MMC, streamlining system configuration.

• Maintenance Support for New I/O Modules: Accommodates the integration of newer I/O modules, enhancing system scalability.

Technical Specifications:

• Supply Voltage: 24 V DC (permissible range: 20.4 V to 28.8 V)

• Current Consumption: Up to 600 mA at 24 V DC supply

• Inrush Current: Typically 4 A

• Power Loss: Approximately 6 W

• Addressing Volume: 192 bytes for inputs and 192 bytes for outputs

• Dimensions: 40 mm (W) x 125 mm (H) x 118 mm (D)

• Weight: Approximately 215 g

• Operating Temperature Range: 0°C to +60°C

• Protection Rating: IP20

The 6ES7153-4AA01-0XB0 interface module is ideal for industrial automation environments requiring reliable and efficient communication between distributed I/O stations and central controllers. Its support for isochronous real-time communication makes it suitable for applications demanding precise timing and synchronization.
