Description

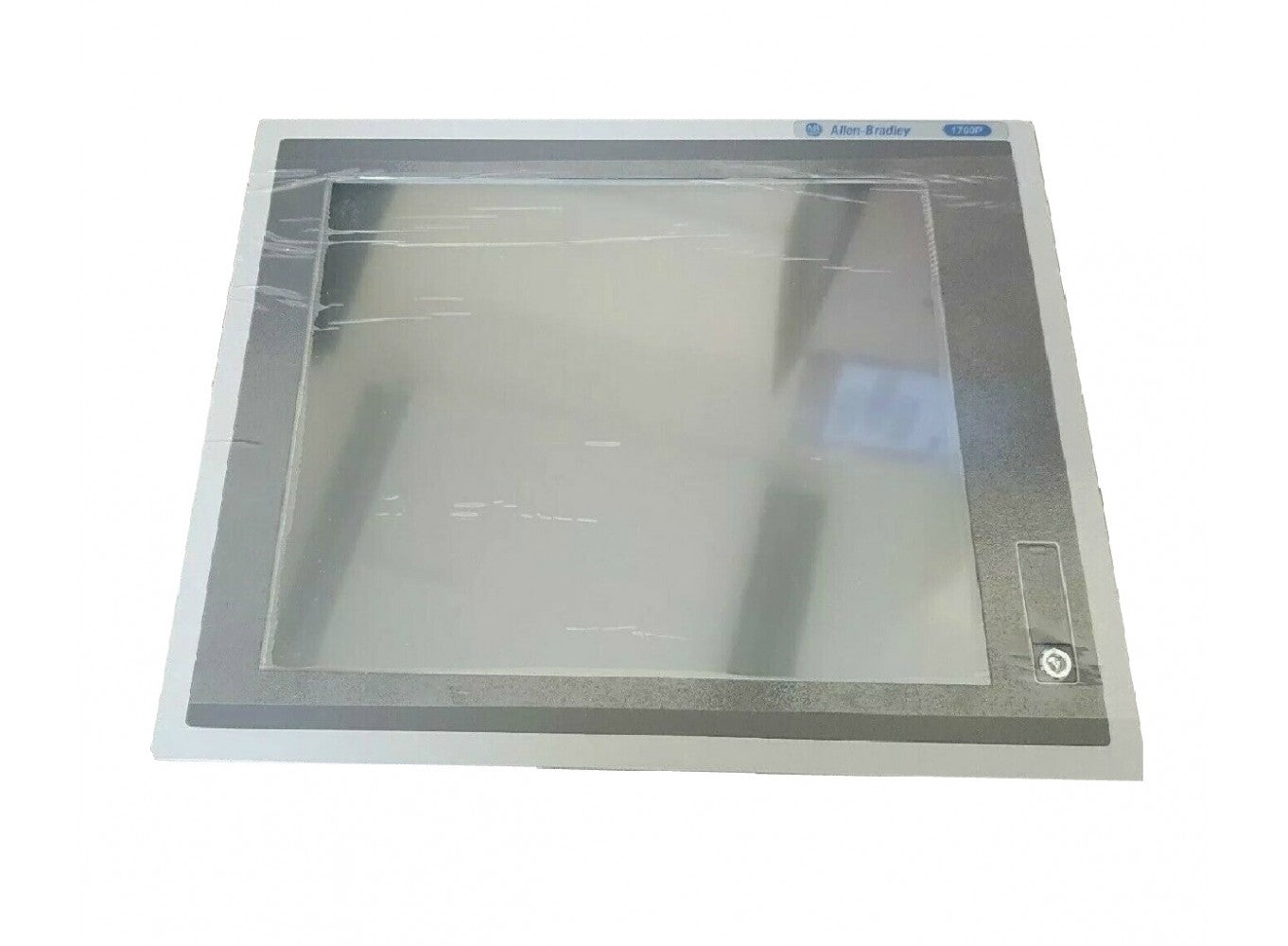

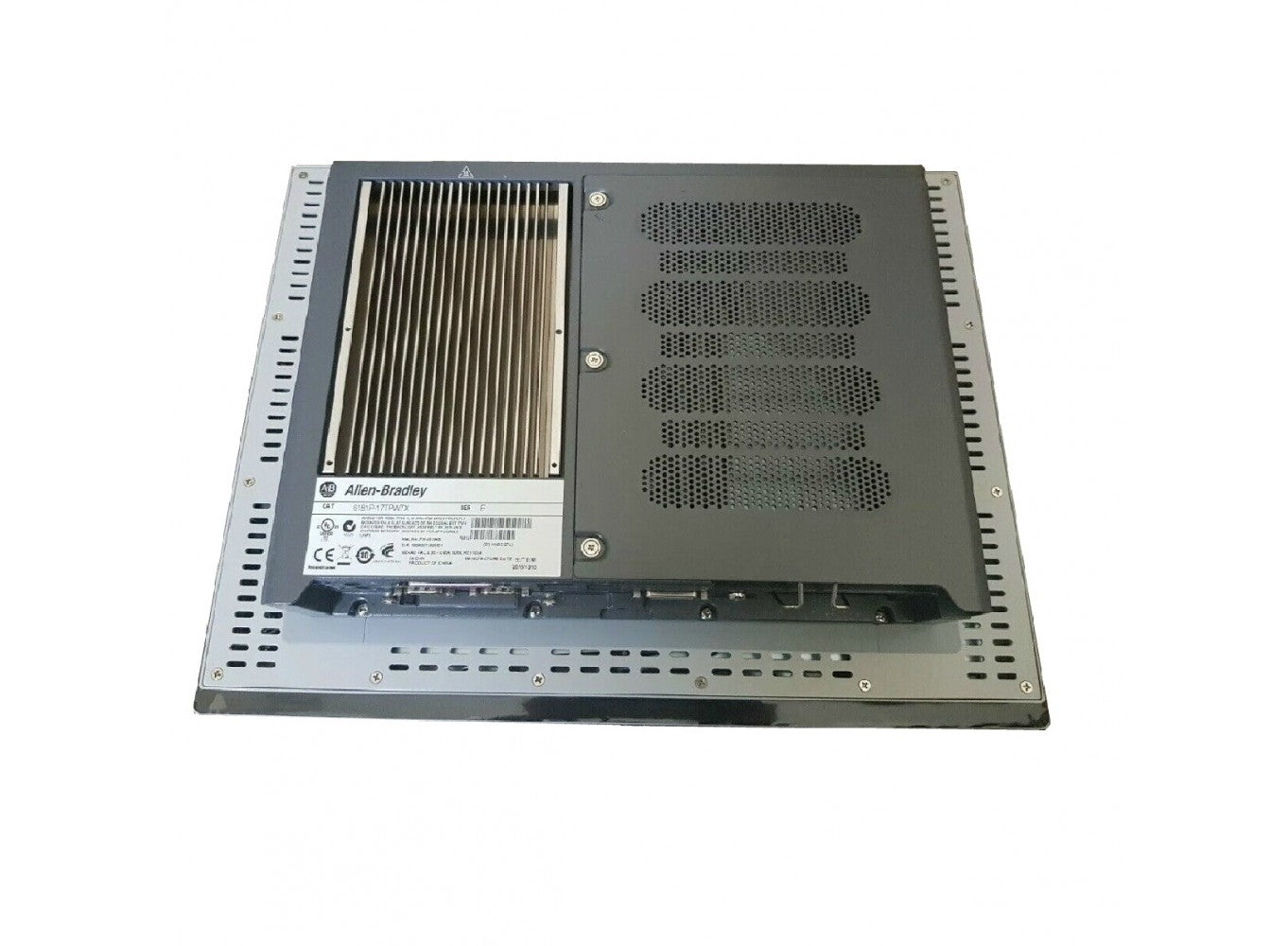

The 6181P-17TSXP is a VersaView 1700P industrial integrated display computer featuring a 17-inch touchscreen and rotating media storage.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
6181P-17TSXP
|
| Subcatecory |
|
| Product Line |
VersaView 1700P |
Display Size
|
17 in. |
| Display Color |
Color |
| Input Type |
PCAP Touchscreen |
| Communication |
2 Serial ports, 1 Parallel port, and 2 Ethernet ports |
| Input Power |
100-240V AC |
| Memory |
256 GB |
| Processor Type |
Intel Celeron M423 |
| Mounting Options |
Panel Mount |
| Weight |
24.12 lbs |
Information About 6181P-17TSXP
The Allen-Bradley 6181P-17TSXP is a VersaView 1700P integrated industrial display computer featuring a 17-inch TFT touchscreen and a 2.5-inch SATA hard disk drive. Powered by an Intel Celeron M 1.06 GHz processor with 2 GB DDR2 RAM (expandable to 4 GB), it operates on Windows XP Professional and is designed for panel mounting in industrial environments. The unit includes 4 USB 2.0 ports, 2 Gigabit Ethernet ports, and 1 serial port, making it suitable for applications such as machine control, SCADA, and HMI systems.
Key Features:
-
Display: 17-inch TFT touchscreen
-
Processor: Intel Celeron M 1.06 GHz
-
Memory: 2 GB DDR2 RAM (expandable to 4 GB)
-
Storage: 2.5-inch SATA hard disk drive
-
Operating System: Windows XP Professional
-
I/O Ports:
-
4 x USB 2.0
-
2 x Gigabit Ethernet
-
1 x Serial port
-
Power Supply: 100–240V AC
-
Mounting: Panel-mounted
