Description

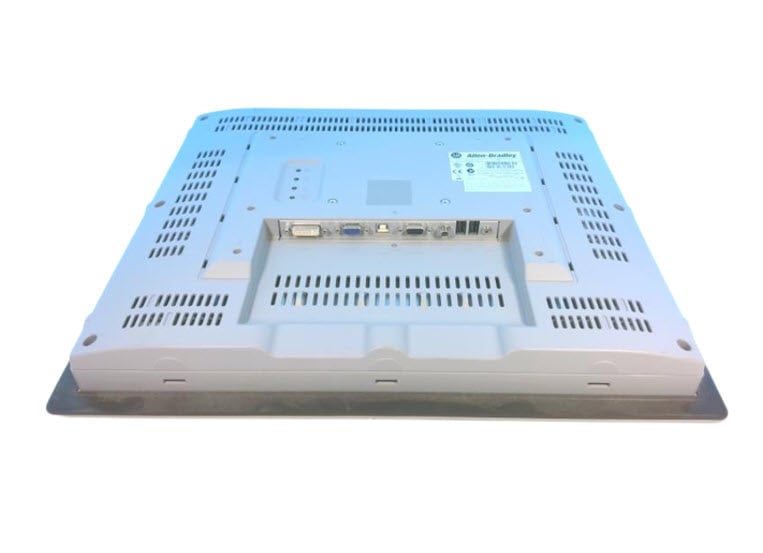

The 6176M-19PT is a 19-inch industrial flat-panel touch monitor from Allen-Bradley, designed for rugged environments.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley |
|
Category
|
HMI (Human Machine Interfaces)
|
|
Part Number
|
6176M-19PT
|
| Subcatecory |
|
| Product Line |
1950M Industrial Monitor |
| Display Size |
19 inches |
| Display Color |
Color Active Matrix TFT
|
| Input Type |
Resistive Touchscreen |
| Input Power |
90 to 264 Volts AC |
| Memory |
DIMM |
| Bezel Type |
Aluminum |
| Backlight |
CCFT tubes |
| Mounting Option |
Panel Mount |
| Communication |
RS-232 and USB |
| Weight |
4.54 kgs |
Information About 6176M-19PT
The Allen-Bradley 6176M-19PT is a 19-inch industrial flat-panel monitor designed for demanding industrial environments. It features a resistive touchscreen with an antiglare shield, providing a responsive and clear interface for operators. The monitor delivers a 1280 x 1024 pixel resolution with a contrast ratio of 800:1, ensuring sharp and detailed visuals. Its backlight, composed of CCFT tubes, offers a typical luminance of 250 cd/m² and a lifespan of approximately 50,000 hours to half-brightness.
Key Features:
-
Display: 19-inch color active matrix TFT with support for 16.7 million colors.
-
Touchscreen: Resistive type with an antiglare shield for enhanced visibility.
-
Resolution: 1280 x 1024 pixels.
-
Contrast Ratio: 800:1.
-
Backlight: CCFT tubes with a typical luminance of 250 cd/m² and a lifespan of ~50,000 hours.
-
Bezel: Durable aluminum alloy.
-
Mounting: Panel-mounted with an enclosure rating of NEMA Type 1/12/4, offering protection against water and solid particles.
-
Video Inputs: Auto-select feature for both VGA and DVI inputs.
-
Controls: Rear adjustments for brightness, contrast, image lock, automatic screen setup (OSD), video information, color balance, and positioning.
-
Power Supply: Auto-ranging input power of 90 to 264 Volts AC with a line frequency of 47 to 63 Hertz.
-
Environmental Tolerance: Operating temperature range of 0 to 40 degrees Celsius, shock tolerance of 10 G at ½ sine for 11 milliseconds, and vibration tolerance of 1 G peak at 10 to 500 Hertz.
