Description

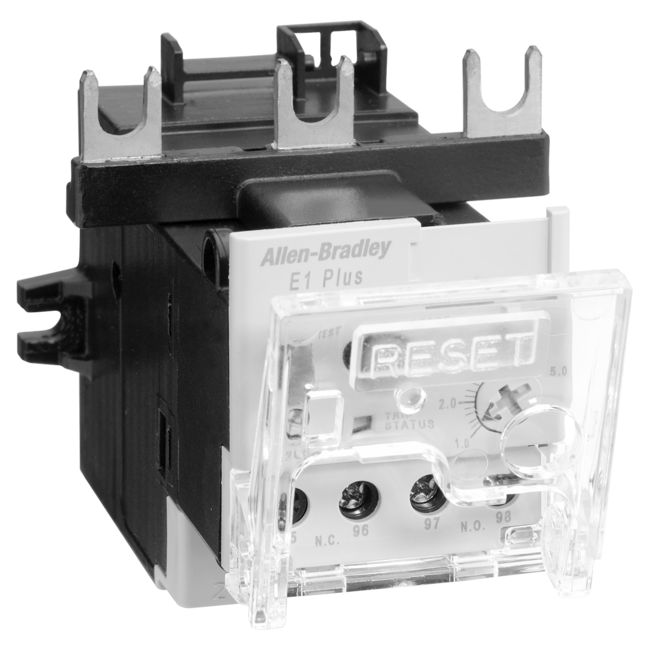

The 592-EEFC is an Allen-Bradley E1 Plus NEMA overload relay with an adjustable current range of 9 to 45 Amps, designed for mounting on NEMA Size 0-2 Bulletin 500 contactors. It features selectable manual or auto-manual reset and provides robust motor protection with dual auxiliary contacts.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
592-EEFC
|
| Subcatecory |
Solid State Overload/Relay
|
| Series |
E1 Plus Series |
| Amperage Range |
9 to 45 Amps
|
| Compatible Contactors |
NEMA Size 0-2 Bulletin 500 |
| Reset Type |
Selectable Manual or Auto-Manual |
| Contact Configuration |
1NO and 1NC Auxiliary Contacts |
| Terminal Type |
Screw Type |
| Standards Compliance |
C-TICK, CCC, CE, cUL, KC, UL |
| Weight |
0.6500 lb |
Information About 592-EEFC
The Allen-Bradley 592-EEFC is a solid-state E1 Plus NEMA overload relay, delivering reliable and precise motor overload protection for industrial applications. Designed to mount directly onto NEMA Size 0 to 2 Bulletin 500 contactors, it supports fast installation and compact control panel integration. This relay provides a wide adjustable current range of 9 to 45 Amps, making it flexible for protecting a variety of motor sizes within this range. It supports both manual and auto-manual reset modes, offering adaptability to match operational and safety requirements based on the application.
Key Features:
-
Adjustable Current Range: 9 to 45 Amps for flexible motor protection.
-
Direct Mounting: Designed for use with NEMA Size 0–2 Bulletin 500 contactors.
-
Selectable Reset Options: Manual or auto-manual reset to fit safety and operational needs.
-
Integrated Auxiliary Contacts: 1NO and 1NC for flexible control and monitoring.
-
Global Standards Compliance: Certified for international use under C-TICK, CCC, CE, cUL, KC, and UL.
The 592-EEFC ensures precise, reliable protection against overload conditions, extending motor life and supporting safe operation in industrial systems.
