Description

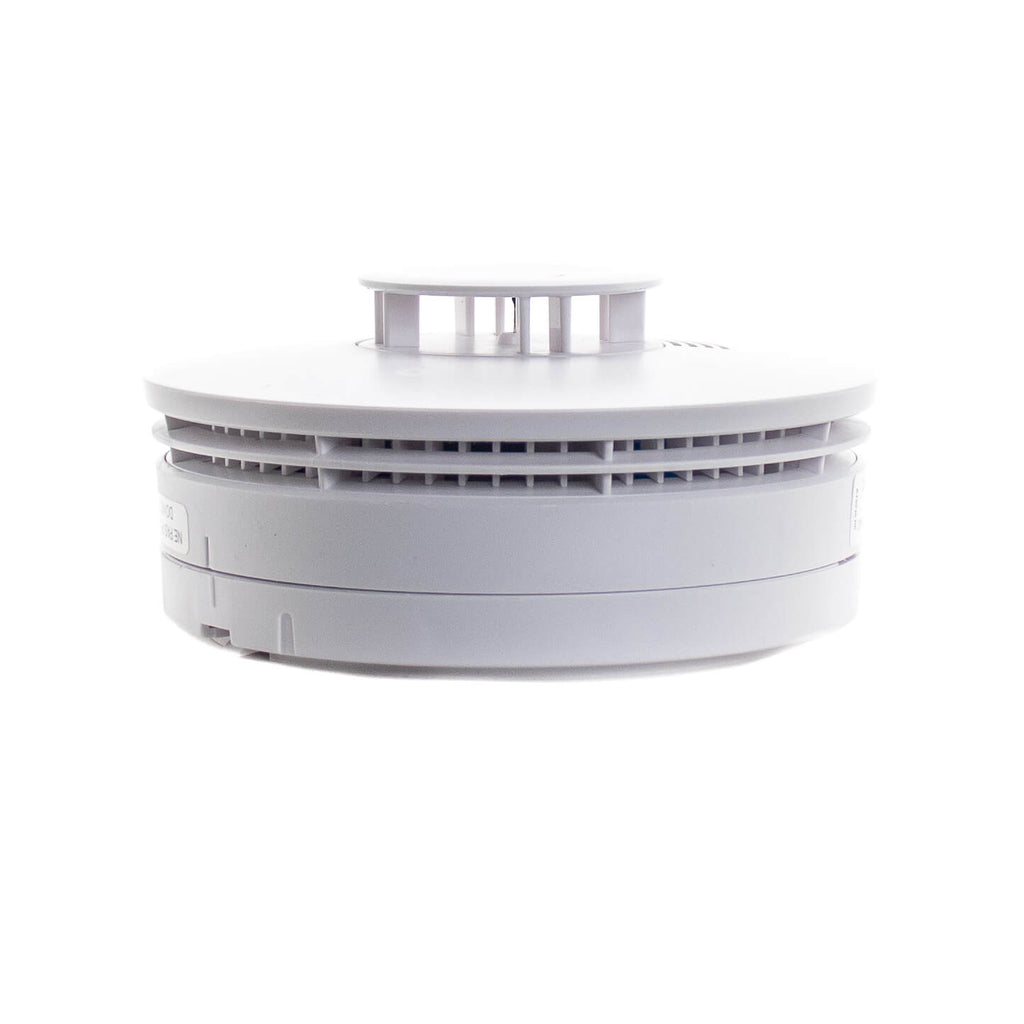

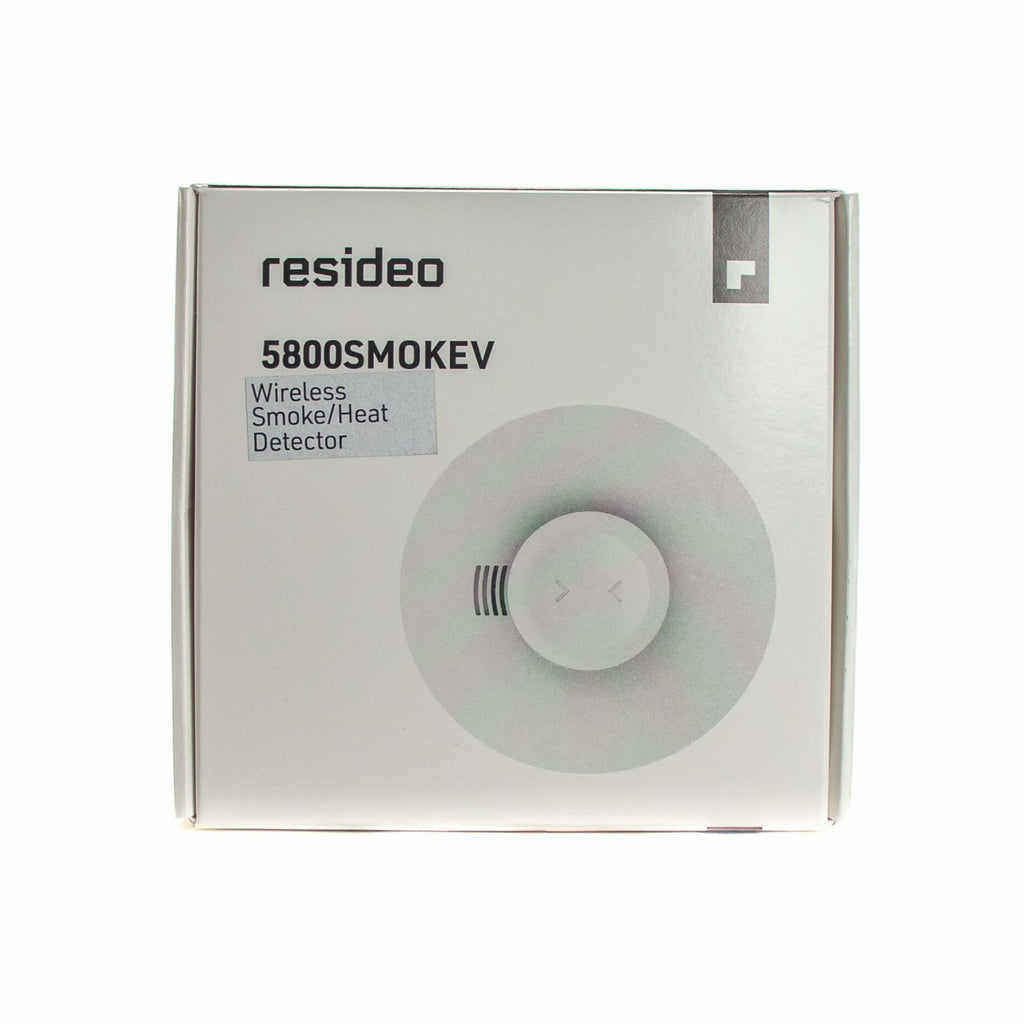

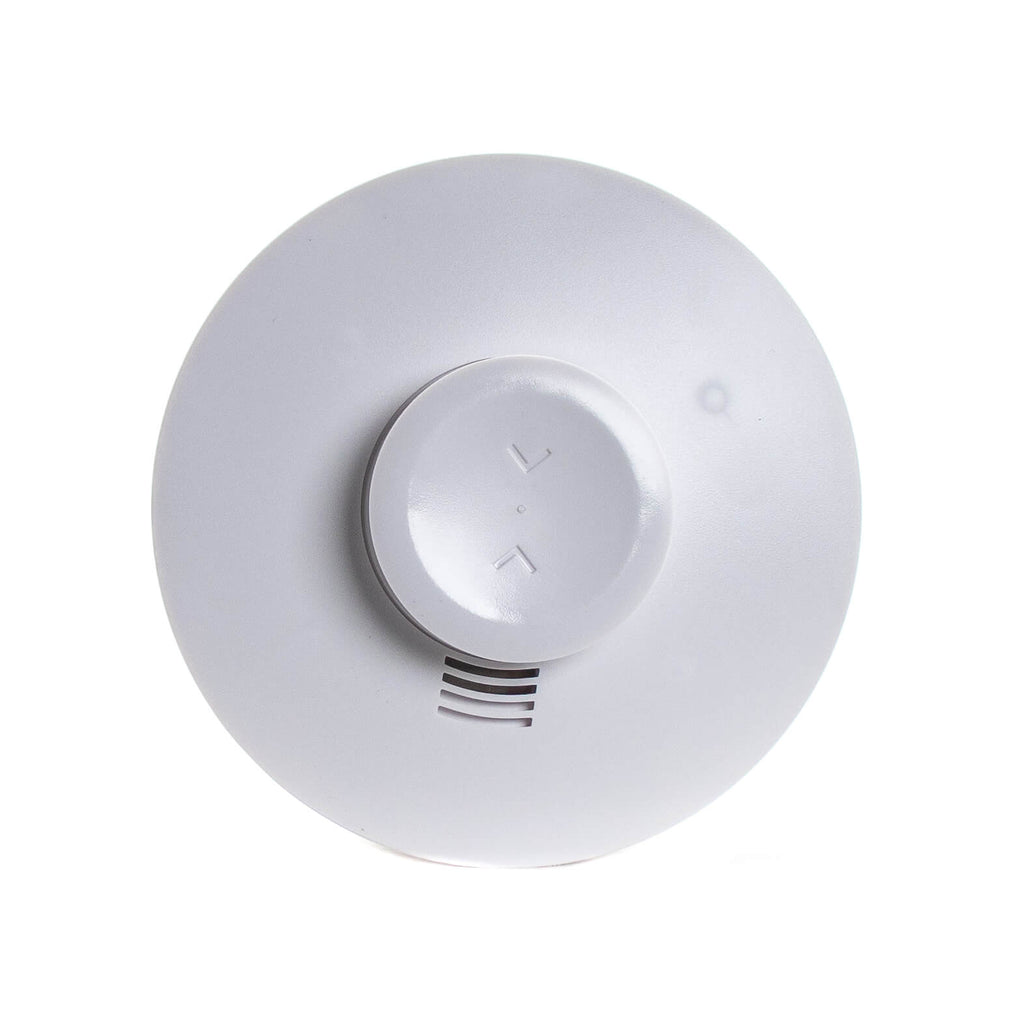

The Honeywell 5800SMOKEV is a multi-criteria wireless smoke and heat detector designed for residential and commercial alarm systems using Honeywell/Resideo 5800-series wireless technology. This device features four integrated sensors: photoelectric smoke, fixed heat, rate-of-rise heat, and low-temperature detection, with an integrated 85 dB sounder for local notification. Engineered for reliability and simplicity, it offers long battery life, easy testing, and advanced maintenance alerts.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell / Resideo |
| Category |
Fire & Life Safety |
| Part Number |
5800SMOKEV |
| Subcategory |
Smoke & Heat Detectors |
| Smoke Sensor Type |
Photoelectric |
| Fixed Temp Heat Detection |
135°F (57°C) |
| Rate-of-Rise Detection |
>104°F @ 15°F/min (40°C @ 8.33°C/min) |
| Low Temp Alert Threshold |
41°F (5°C) |
| Wireless Protocol |
Honeywell 5800 Series (345 MHz) |
| Supervision Interval |
60–70 minutes |
| Sounder Output |
85 dB @ 10 ft |
| Power Supply |
2 × CR123A 3V lithium batteries |
| Battery Life |
Up to 5 years |
| LED Indicators |
Multi-color status LEDs |
| Testing Method |
Physical button / canned smoke / direct heat |
| Tamper Protection |
Yes (base tamper reporting – Loop 4) |
| Mounting Location |
Ceiling or wall (indoor use only) |
| Mounting Hardware |
Included |
| Max Coverage Area |
50 ft × 50 ft |
| Dimensions (in) |
4.74 × 2.31 in |
| Dimensions (mm) |
120 × 59 mm |
| Weight |
0.40 lbs (approximate) |
Information About 5800SMOKEV
The 5800SMOKEV from Honeywell is part of the 5800-series wireless sensor family, supporting a wide range of Honeywell/Resideo security panels. It combines advanced fire detection with wireless convenience, making it ideal for retrofit or new alarm installations. This detector transmits multiple supervised loops (smoke/heat, maintenance, freeze, and tamper) and features an onboard 85 dB sounder and LED indicators for diagnostics and alarms. With a five-year battery life and simplified mounting, it's a dependable solution for comprehensive protection.
Key Features:
- 4-in-1 Sensor Integration: Smoke, fixed heat, rate-of-rise, and freeze alert in one device.
- Wireless 5800-Series: Compatible with any Honeywell panel supporting 5800 wireless protocol.
- Built-In Sounder: 85 dB alarm at 10 feet for immediate local notification.
- Easy Enrollment: Supports loop programming for full feature control (heat, freeze, maintenance).
- Maintenance Alerts: Internal contamination sensor alerts when cleaning is required.
- Battery Powered: Two CR123A 3V batteries with up to 5-year life.
- Status Indicators: Visual LED and audible feedback for alarms, low battery, and faults.
- Mounting Flexibility: Ceiling or wall-mountable with tamper protection option.
The 5800SMOKEV delivers the multi-sensor protection and wireless convenience required for smart and secure fire detection systems.
