Description

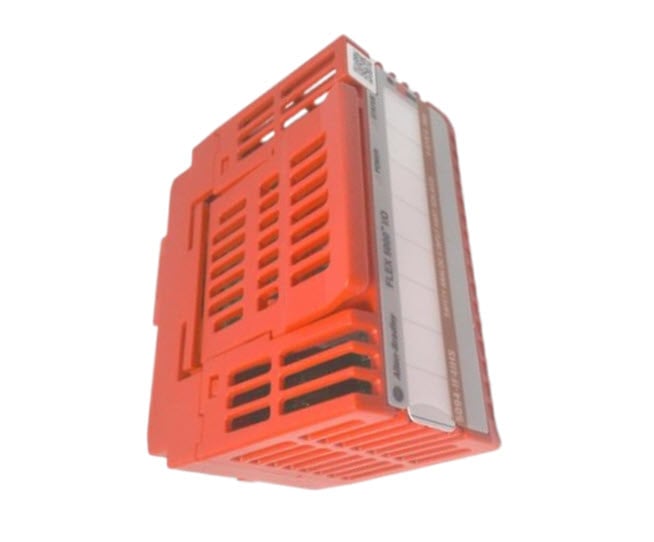

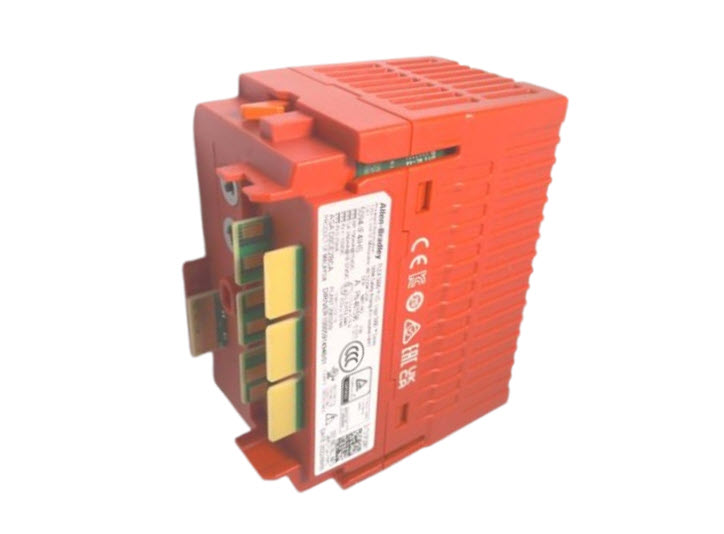

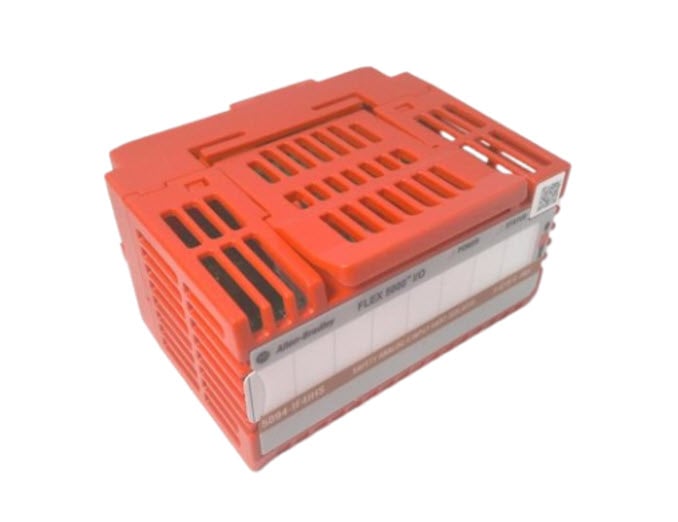

The Allen-Bradley 5094-IF4IHS is a high-speed safety analog input module designed for use with Compact 5000 I/O systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
5094-IF4IHS
|
| Subcatecory |
|
| Channels |
4 (independent, isolated) |
| Input Signal Types |
4–20 mA, 0–10 V |
| Communication |
HART-enabled |
|
Safety Rating
|
SIL 3 / PLe certified |
| Isolation |
Channel-to-channel and channel-to-backplane
|
| Indicators |
LED status indicators per channel |
| Mounting |
DIN rail mountable |
| Compatible Platform |
Compact 5000 I/O |
| Weight |
0.33 lbs |
Information About 5094-IF4IHS
The Allen-Bradley 5094-IF4IHS is a safety-rated analog input module designed for use within the FLEX 5000™ I/O platform. With four isolated channels, it supports both 4–20 mA and 0–10 V analog input signals and includes integrated HART communication. Engineered for SIL 3 / PLe applications, it provides high integrity, diagnostics, and isolation for safety-critical process control environments.
Key Features:
-
Product Type: Safety Analog Input Module
-
Channels: 4 isolated analog input channels
-
Input Signal Types: 4–20 mA, 0–10 V
-
HART Communication: Supported
-
Safety Rating: SIL 3, PLe, Category 4 compliant
-
Isolation: Channel-to-channel and channel-to-backplane
-
LED Indicators: Per channel for status and diagnostics
-
Mounting System: DIN rail mountable
-
Compatible Systems: GuardLogix® 5580, Compact GuardLogix® 5380
-
Configuration Software: Studio 5000 Logix Designer®
-
Typical Applications: Process automation, oil & gas, chemical, pharmaceutical industries
The 5094-IF4IHS offers a compact, high-reliability solution for integrating analog safety signals into distributed control architectures. With HART capability and robust isolation, it ensures safe and accurate data acquisition in hazardous and demanding environments.
