Description

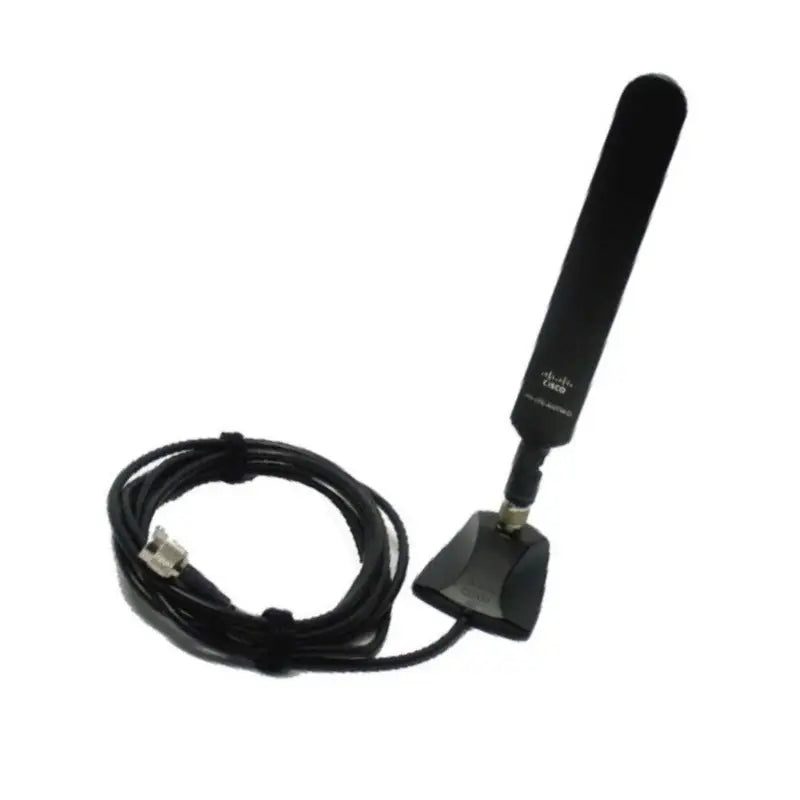

The Cisco 4G-LTE-ANTM-D is an omnidirectional dipole antenna designed to enhance 4G LTE wireless connectivity for Cisco routers and gateways.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
|
| Part Number |
4G-LTE-ANTM-D |
| Subcatecory |
|
| Maximum Input Power |
3W |
| Connector |
TNC male |
| VSWR1 |
2.5:1 or less |
|
Characteristic Impedance
|
50 ohm |
| Operating Temperature |
-22° to 158°F (-30° to 70°C) |
| Maximum Peak Gain |
2 dBi |
| Dimensions |
9 (L) x 1.2 (W) x 7/16 in (D)
(229 x 30.5 x 11 mm) |
| Weight |
0.30 lbs |
Information About 4G-LTE-ANTM-D
The 4G-LTE-ANTM-D is a high-performance LTE antenna designed for reliable wireless connectivity in industrial, commercial, and remote networking applications. It combines a rugged construction, wide frequency compatibility, and ease of installation for enhanced signal reception in demanding environments.
Key Features:
- Type: 4G LTE Antenna
- Frequency Range: 698–960 MHz / 1710–2700 MHz (supports global LTE bands)
- Gain: Typically 2 dBi to 5 dBi (depending on frequency band)
- Connector: SMA Male (standard)
- Cable Length: Typically 1 to 3 meters (varies by model variant)
- Polarization: Vertical
- Radiation Pattern: Omnidirectional
- Operating Temperature Range: -40°C to +85°C
- Mounting: Adhesive, magnetic base, or screw mount options (model dependent)
- Ingress Protection (IP Rating): IP67 (ruggedized for outdoor/industrial use)
- Certifications: RoHS compliant, meets industry wireless communication standards
The 4G-LTE-ANTM-D is an ideal choice for system integrators and network engineers requiring dependable LTE connectivity in harsh or remote locations. Its robust design ensures consistent performance while offering flexible installation options across a wide range of applications including industrial automation, transportation, and IoT deployments.
