Description
Compact diffuse photoelectric sensor with a 5 ft sensing range, visible red beam and 880 nm infrared LED. Operates on 10-40V DC and features a 4-pin M12 Micro QD connector for quick installation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
42GRP-9000-QD |
| Subcatecory |
|
| Sensing Range |
5 ft (approximately 1.5 m) |
| Light Source |
Visible Red Beam / Infrared LED |
| Beam Wavelength |
880 nm |
| Sensing Mode |
Diffuse |
| Operating Voltage |
10-40 VDC |
| Connection Type |
4-pin M12 Micro QD |
| Weight |
0.35 lbs |
Information About 42GRP-9000-QD

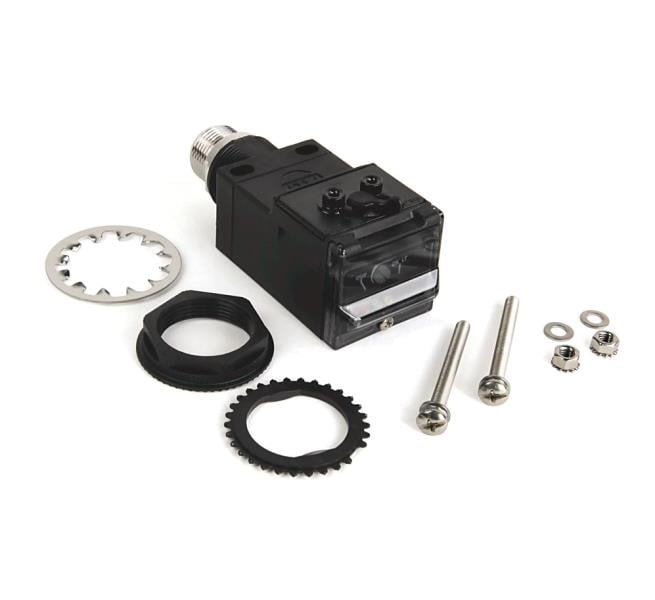

The 42GRP-9000-QD is a robust photoelectric sensor from Allen-Bradley’s PHOTOSWITCH Series, designed for reliable object detection in industrial environments with flexible installation and durable performance.
Key Features:
- Type: Photoelectric Sensor (Diffuse Mode)
- Sensing Range: 5 ft (1.5 m)
- Light Source: Infrared LED
- Wavelength: 880 nm
- Output Type: Dual NPN/PNP transistor output
- Operating Voltage: 10–40 VDC
- Sensitivity Adjustment: Manual (single-turn potentiometer)
- Operating Modes: Selectable Light Operate (LO) or Dark Operate (DO)
- Connection Type: 4-pin M12 Micro Quick Disconnect (QD)
- Enclosure Ratings: NEMA 3, 4X, 6P, 12, 13; IP67/IP69K
- Status Indicators: Power, output, and margin LEDs
- Housing Dimensions: 41.91 mm (W) × 74.93 mm (H) × 40 mm (D)
- Applications: Ideal for general-purpose object detection, packaging machinery, material handling, and automated assembly lines
- Compliance: Meets industrial environmental and safety standards
The 42GRP-9000-QD provides versatile, high-performance sensing with easy integration and durability for demanding automation applications.
