Description
The Allen-Bradley 2098-DSD-HV100-SE is a high-performance digital servo drive from the Ultra3000 series, designed for precision motion control in demanding industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
Sensors & Switches |
| Part Number |
42EF-P2JBB-F4
|
| Subcategory |
Photoelectric |
|
|
Polarized Retroreflective |
| Conductor Size |
22 AWG |
|
|
|
| Sensor Type |
|
|
TC Connection
|
4 Pin Micro QD on Pigtail |
|
Voltage
|
10.8-30 Volt |
| Circuit Type |
PNP/NPN |
| Connection Type |
M12 Connector |
| Output |
100 mA |
| Standard |
C-TICK |
| Response Time |
1 ms |
| Maximum Sensing Distance |
3m (9.8ft) |
| Weight |
0.10 lbs |
Information About 42EF-P2JBB-F4

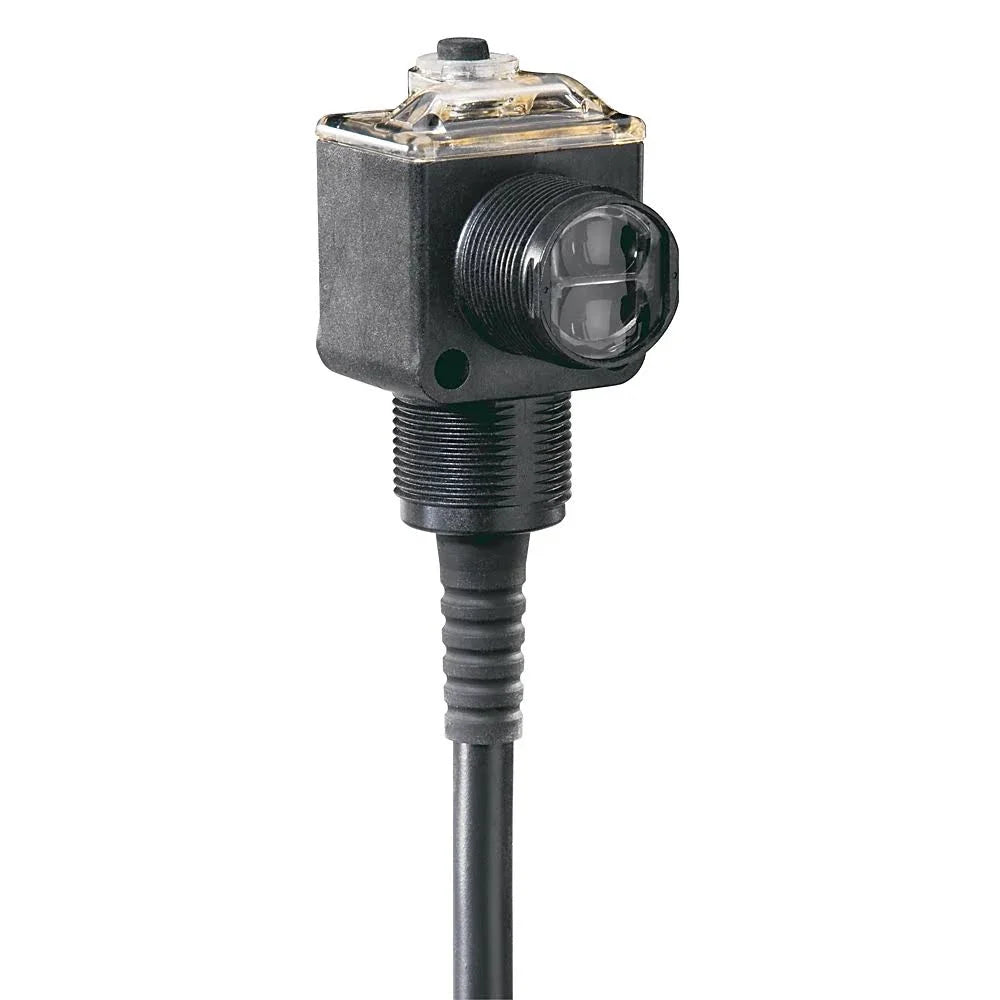

The Allen-Bradley 42EF-P2JBB-F4 is a RightSight™ polarized retroreflective photoelectric sensor designed for general-purpose industrial applications. It operates on 10.8–30 V DC and features a visible red LED light source for reliable object detection up to 3 meters. This sensor offers both NPN and PNP output configurations and includes a 4-pin DC micro (M12) quick-disconnect connector on a 152 mm (6 in.) pigtail. Its compact 18 mm cylindrical housing allows for versatile mounting options, making it suitable for various automation environments.
Key Features:
-
Sensing Mode: Polarized retroreflective
-
Sensing Range: 25 mm to 3 m (0.98 in. to 9.84 ft)
-
Light Source: Visible red LED
-
Operating Voltage: 10.8–30 V DC
-
Output Type: NPN and PNP (light operate)
-
Response Time: 1 ms
-
Connection: 4-pin DC micro (M12) quick-disconnect on 152 mm (6 in.) pigtail
-
Housing: 18 mm cylindrical plastic body
-
Enclosure Rating: IP67, IP69K
-
Certifications: CE, cULus
This sensor is ideal for applications requiring reliable detection of reflective materials, such as packaging lines and conveyor systems, where space constraints and robust performance are critical.
