Description

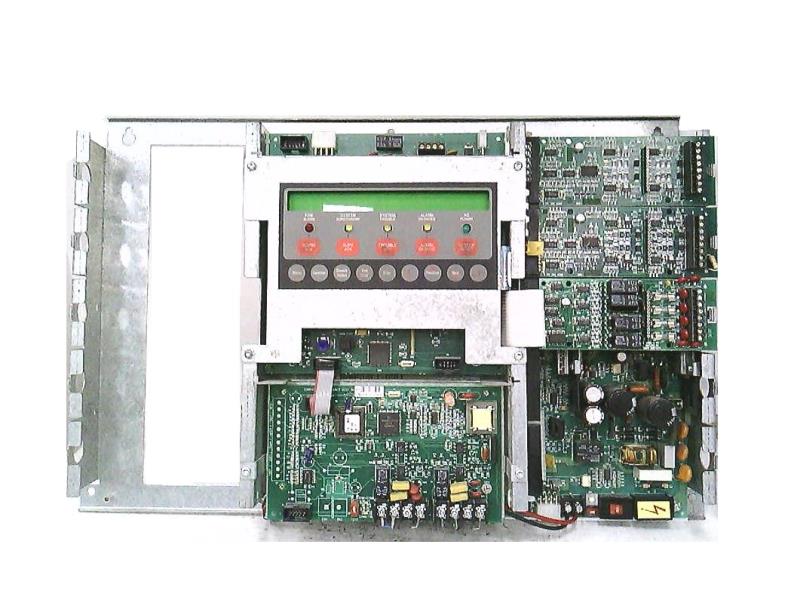

The Simplex 4005-9150 High-Current Base Panel Electronics module is a core component of the 4005 Series LifeAlarm Fire Alarm Control Panels. It provides the essential electronic infrastructure for managing high-current circuits, device monitoring, and notification control in mid-size fire alarm installations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Simplex |
| Category |
Fire Alarm Components |
| Part Number |
4005-9150 |
| Subcategory |
High-Current Base Panel Electronics |
| System Type |
LifeAlarm Fire Alarm Control Panel |
| Display Type |
80-Character Alphanumeric LCD |
| Circuit Capacity |
Expandable IDCs and NACs |
| Communication |
Integrated Digital Alarm Communicator Transmitter (DACT) |
| Programming Method |
Menu-Driven Interface with Custom Label Support |
| Power Output |
High-Current Capacity for System Devices |
| Modular Design |
Field-Expandable for Custom Configurations |
| Compatibility |
Simplex 4005 Series Panels |
| Application |
Fire Detection, Monitoring, and Notification Control |
| Operating Environment |
Indoor, Controlled Conditions |
| Compliance |
UL Listed Fire Alarm Equipment |
| Weight |
20.00 lbs |
Information About 4005-9150
The 4005-9150 is an electronic base panel assembly for Simplex 4005 LifeAlarm systems, designed to deliver high-current capacity and dependable control performance. It supports a flexible range of initiating and notification circuits, allowing efficient management of alarm and supervisory devices. The panel includes a clear 80-character LCD readout and on-board DACT for direct alarm reporting to monitoring centers. With its modular architecture and intuitive programming interface, the 4005-9150 provides a reliable foundation for scalable fire detection systems in commercial, institutional, and industrial environments.
Key Features:
- High-Current Power Handling: Provides robust current delivery to support multiple notification appliance circuits and field devices.
- Expandable Circuit Design: Allows on-site configuration of initiating device circuits (IDCs) and notification appliance circuits (NACs) to suit system size.
- Integrated DACT Functionality: Features a built-in digital communicator for remote alarm and trouble reporting.
- Advanced Display Interface: Equipped with an 80-character LCD display for real-time system feedback and event information.
- Flexible Programming Options: Offers menu-driven programming and customizable labeling for simplified configuration and diagnostics.
- Reliable Modular Construction: Engineered for long-term performance and compatibility with the entire 4005 Series LifeAlarm platform.
- UL Listed Compliance: Meets industry standards for safety and operational reliability in fire alarm systems.
- Service-Friendly Design: Modular layout facilitates easy field upgrades, replacements, and maintenance.
The 4005-9150 delivers the reliability and precision required for dependable control and monitoring within Simplex 4005 LifeAlarm fire protection systems.
