Description

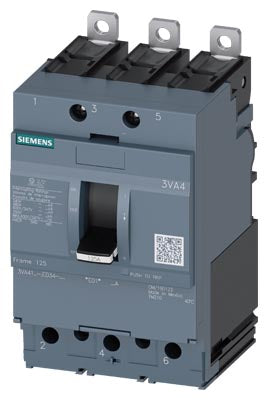

The Siemens 3VA4110-4ED34-0AA0 is a 3-pole molded case circuit breaker engineered for dependable electrical protection in low-voltage power distribution systems. Rated at 100 amps and 600 volts, it provides a breaking capacity of 25kA at 480V. With its thermal-magnetic trip unit and durable 3VA41 frame, this breaker offers reliable overcurrent and short-circuit protection for commercial and industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Circuit Breakers, Fuses & Protection |
| Part Number |
3VA4110-4ED34-0AA0 |
| Subcategory |
Molded Case Circuit Breakers |
| Series |
3VA4 |
| Frame Size |
3VA41 |
| Poles |
3 |
| Voltage Rating |
600V AC |
| Amperage Rating |
100A |
| Interrupting Capacity |
25kA @ 480V |
| Trip Unit Type |
TM210 Thermal-Magnetic |
| Trip Functions |
Fixed Ir / Fixed Ii (Long-Time, Instantaneous) |
| Breaking Capacity Class |
Class S (Standard) |
| Connection Type |
Bolt-On |
| Terminal Connection |
Load Side Lug |
| Standards Compliance |
UL Listed, CSA Approved |
| Country of Origin |
Mexico |
| Dimensions (W x H x D) |
3 x 5.5 x 3.7 in |
| Weight |
1.638 lbs |
Information About 3VA4110-4ED34-0AA0
The 3VA4110-4ED34-0AA0 is part of Siemens’ 3VA Series, designed for advanced circuit protection with high efficiency and reliability. This molded case circuit breaker features a TM210 thermal-magnetic trip unit with fixed long-time and instantaneous trip settings for optimal protection performance. Built with a 3VA41 frame, it provides standard (Class S) breaking capacity and load-side lugs for simplified installation. Engineered to meet UL and CSA standards, it supports use across diverse low-voltage applications requiring robust protection and minimal maintenance.
Key Features:
- Rated Current 100A: Ensures consistent performance for medium to heavy electrical loads.
- Voltage Rating 600V AC: Suitable for a wide range of low-voltage distribution systems.
- Interrupting Capacity 25kA @ 480V: Offers strong fault-clearing performance.
- Thermal-Magnetic Trip Unit (TM210): Provides both overload and short-circuit protection.
- 3-Pole Configuration: Supports 3-phase power systems with reliable load management.
- Bolt-On Connection: Enables quick and secure installation in panelboards.
- UL and CSA Certified: Meets international electrical safety and performance standards.
- Compact Design: Measures only 3 x 5.5 x 3.7 inches for efficient panel integration.
The 3VA4110-4ED34-0AA0 delivers the reliability and precision required for secure, long-term protection in commercial and industrial electrical systems.
