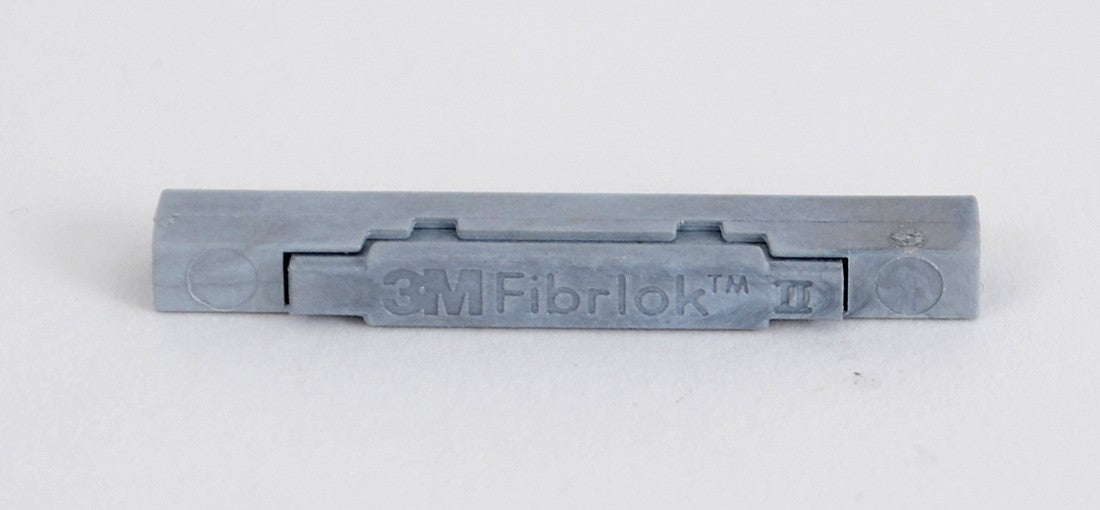

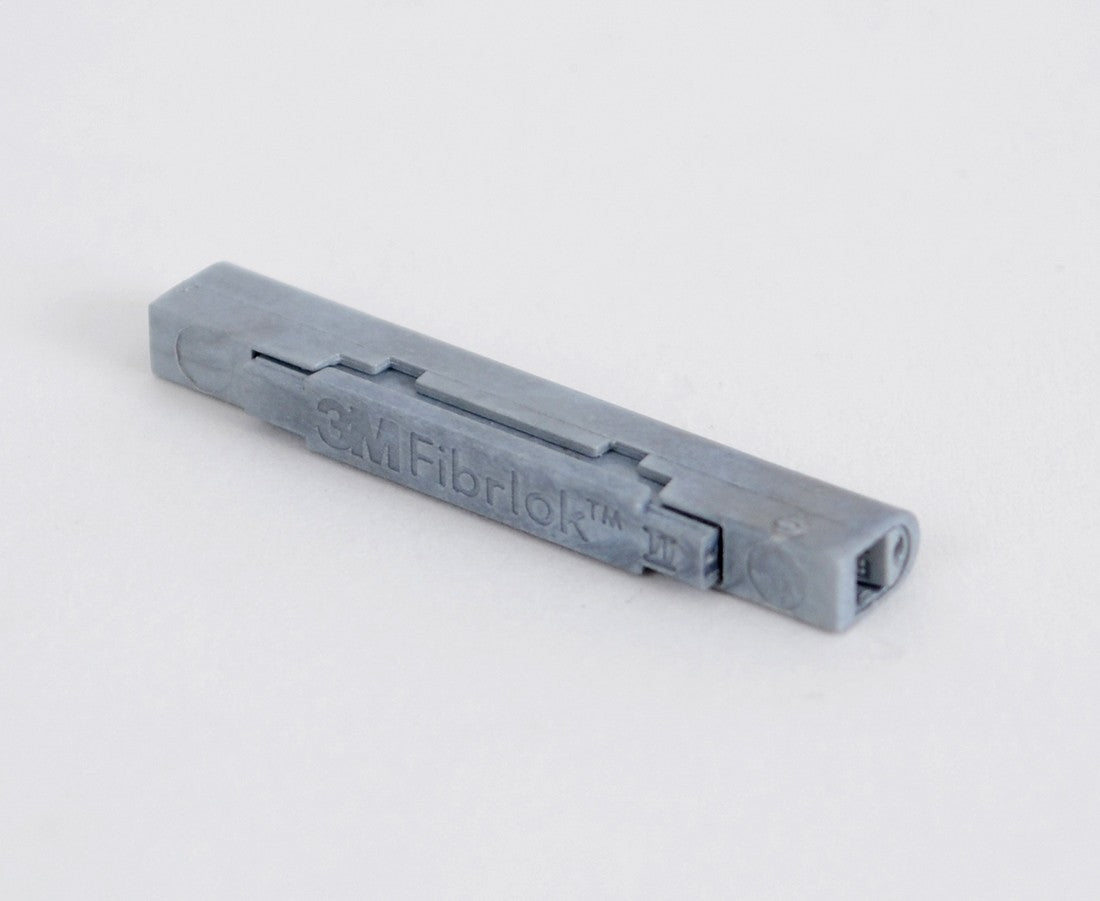

The Fibrlok Fiber Optic Mechanical Splice from 3M is great for your restoration work and many other applications that require fiber optic splicing to be done in a quick and efficient manner. Using the 3M Fibrlok Fiber Optic Mechanical Splice, you can complete a fiber optic splice within 30 seconds after preparing the ends of the optical fiber.
This Fiber Optic Mechanical Splice has an insertion loss < 0.2dB, and the optical fiber has a retention of >7.75 lbs. The Fibrlok Fiber Optic Mechanical Splice is known for its low reflection characteristics of -35dB and has thermal stability of -40°C to 80°C. The Fibrlok Fiber Optic Mechanical Splice is designed to accommodate 250-900µm buffer sizes.
Using V groove technology, the Fibrlok Fiber Optic Mechanical Splice requires no epoxy. For assembling this Fiber Optic Mechanical Splice, use the Fibrlok Assembly Tool #2501.
Features:
- Fast Installation
- Insertion Loss < 0.2dB
- Fiber Retention of >7.75 lbs
- Low Reflection of -35dB
- 250-900µm Buffer Sizes
- Download product spec sheet
