Description

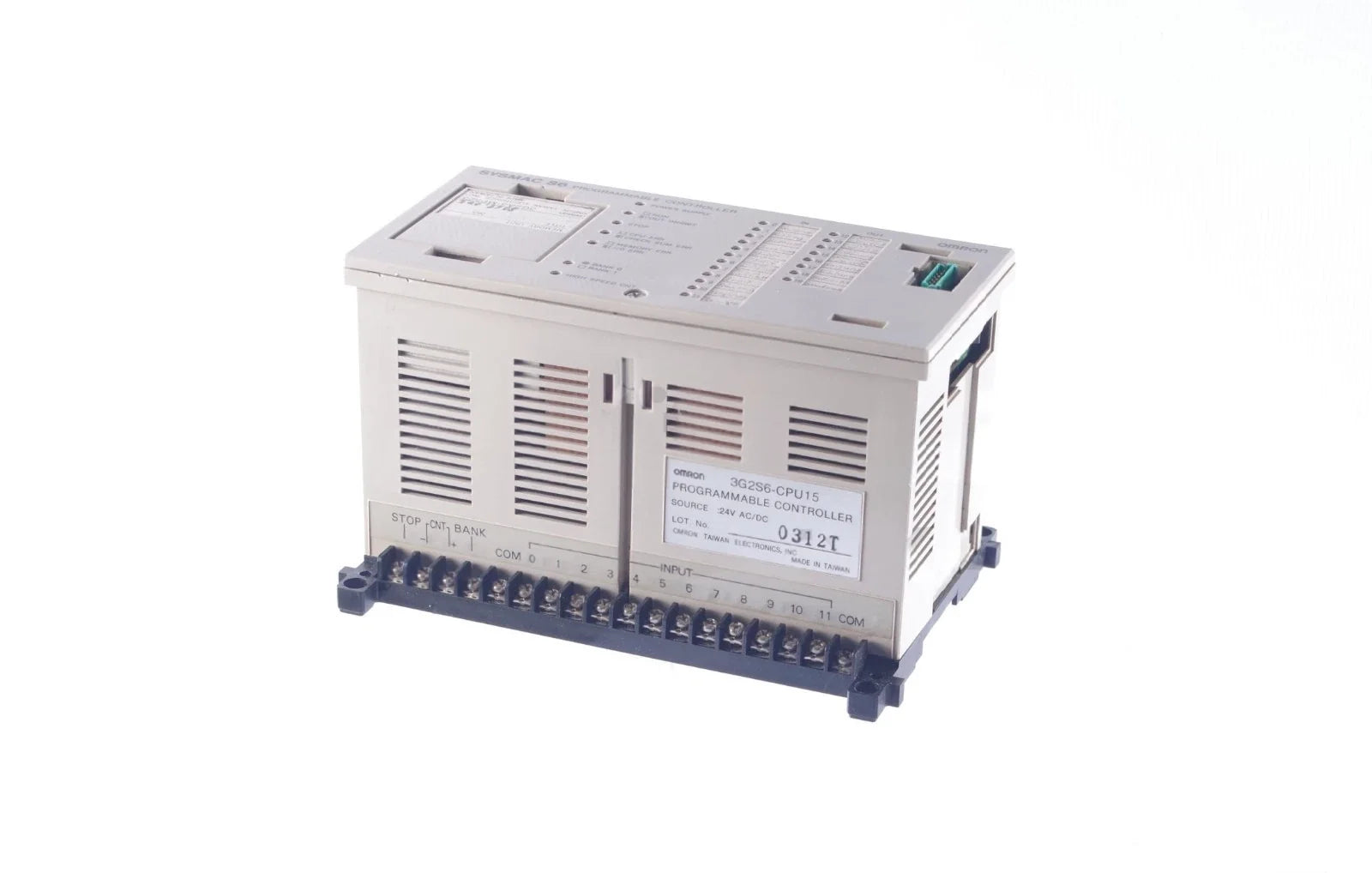

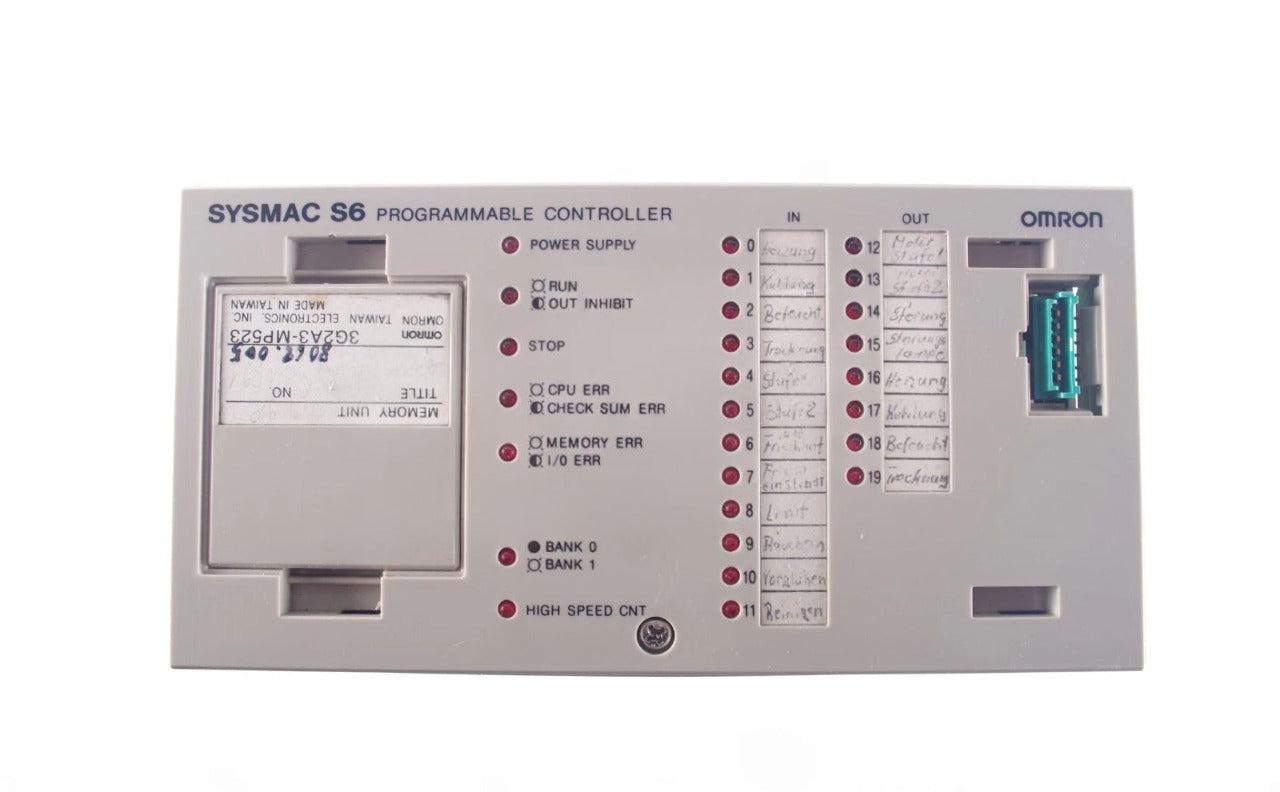

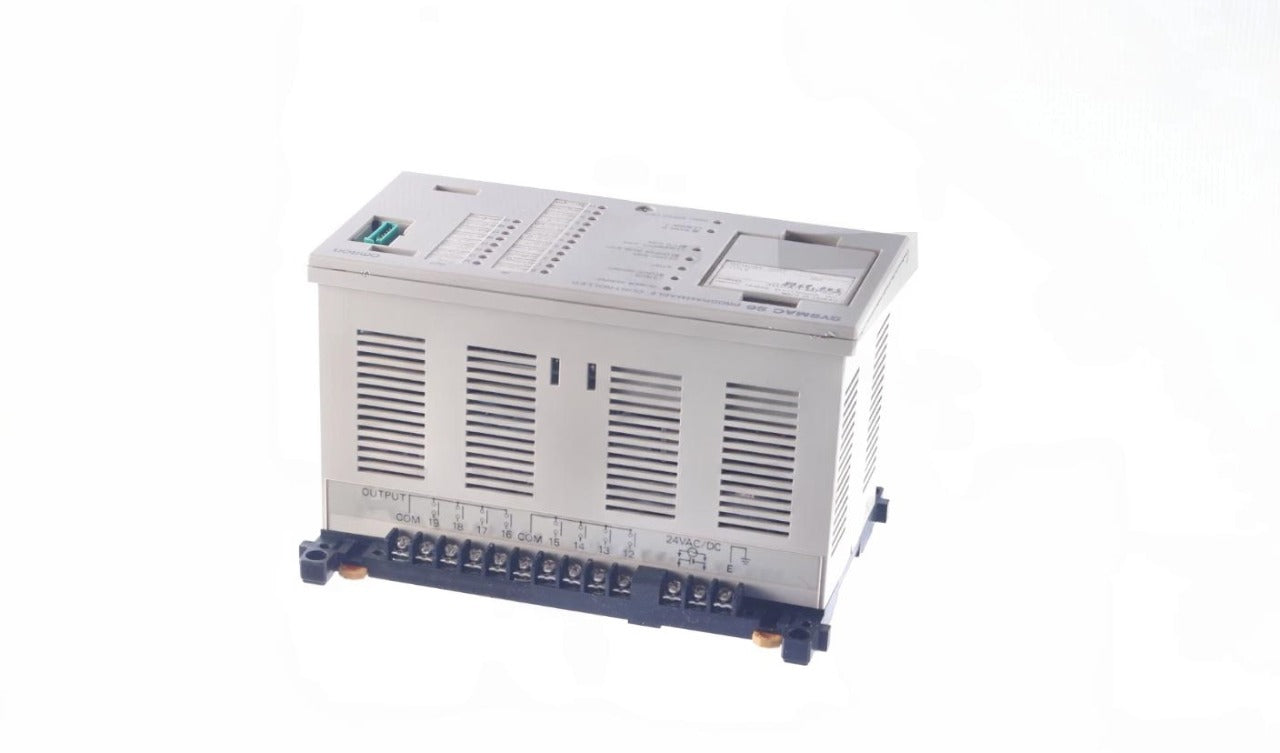

The 3G2S6-CPU15 is a compact programmable controller from Omron's SYSMAC S6 series, designed for reliable DC-powered automation tasks. It features 12 inputs and 8 relay outputs, and includes a built-in memory unit for local control execution.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
3G2S6-CPU15 |
| Subcategory |
PLC Module/Rack |
| Series |
3G2 |
| Inputs |
12 Points |
| Memory Capacity |
512 Words |
| Current |
DC |
| Input Voltage |
12-24 V DC |
| Outputs |
8 Relay Outputs |
| Control Features |
Programmable logic control |
| Dimensions |
Compact design |
| Mounting Type |
Track Mounting (DIN Rail)
|
| Weight |
2.73 lbs |
Information About 3G2S6-CPU15
The 3G2S6-CPU15 is a central unit from the Omron SYSMAC S6 series, built to manage small-scale automation operations with efficiency and precision. This controller operates on 12–24 V DC and supports 12 discrete input points, allowing it to interface seamlessly with sensors and digital input devices. It includes 8 relay outputs to handle external loads and provides reliable switching across a range of control scenarios. The unit comes with a pre-installed memory unit offering 512 words of storage for program data, supporting local logic execution without external dependencies. Designed for track mounting and compact integration, the 3G2S6-CPU15 is an excellent fit for distributed control in limited-space enclosures.
Key Features:
- DC Voltage Input Range: Operates on 12–24 V DC, suitable for low-voltage automation environments and battery-powered systems.
- 12 Digital Input Points: Provides a solid interface with multiple digital devices, sensors, and switches for complex logic routines.
- 8 Relay Outputs: Allows reliable output switching to a wide variety of actuators, indicators, and external relays.
- Integrated Memory Unit: Built-in 512-word memory allows on-board storage and execution of control programs without additional modules.
- Compact and Lightweight Design: Small footprint and approximate 0.3 kg weight ensure easy installation in tight or mobile control setups.
- DIN Rail (Track) Mounting: Compatible with standard DIN rail installation for fast, secure, and organized panel mounting.
- Programmable Logic Control: Supports logic execution for timing, sequencing, and decision-based automation processes.
- Series-Compatible Expansion: Easily integrates into broader 3G2S6 systems for extended I/O and networked control architectures.
The 3G2S6-CPU15 provides flexible I/O and control capabilities in a compact form factor with embedded program memory.
