Description

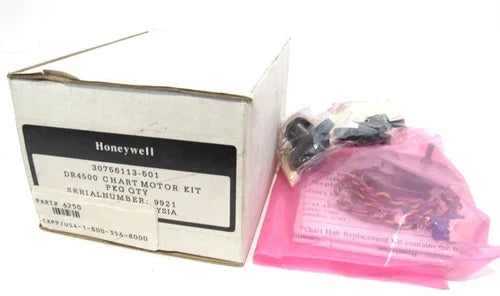

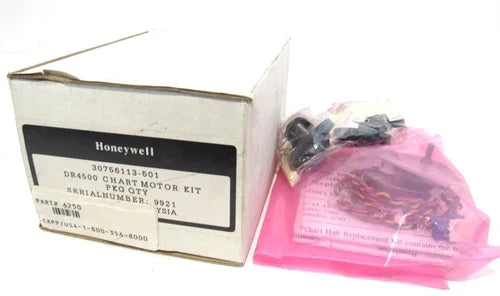

The Honeywell 30756113-501 is a chart drive motor and hub kit designed for use in DR4200, DR4300, and DR4500 circular chart recorders. It provides the mechanical drive required to rotate the recording chart for continuous data logging. This OEM assembly ensures proper chart movement and consistent recorder operation.

Technical Specifications

Information About  30756113-501

The 30756113-501 is a factory replacement chart drive motor assembly developed for Honeywell circular chart recorders. It includes the 30756150-001 hub kit, which interfaces directly with the chart mechanism to transmit rotational motion from the motor to the chart plate. Engineered for compatibility with DR4200, DR4300, and DR4500 models, the kit restores original equipment performance. The assembly is designed to maintain stable chart rotation for accurate time-based recording in industrial process monitoring systems.

Key Features:

• OEM Chart Drive Assembly: Designed specifically for Honeywell circular recorders.

• Includes Hub Kit: Supplied with 30756150-001 hub component.

• Recorder Compatibility: Fits DR4200, DR4300, and DR4500 series units.

• Continuous Chart Rotation: Provides consistent time-based chart movement.

• Durable Construction: Built for long-term mechanical operation.

• Direct Replacement Part: Supports maintenance and repair applications.

• Industrial Application: Intended for process recording systems.

The 30756113-501 delivers the reliability and precision required for circular chart recorder motor drive applications.
