Description

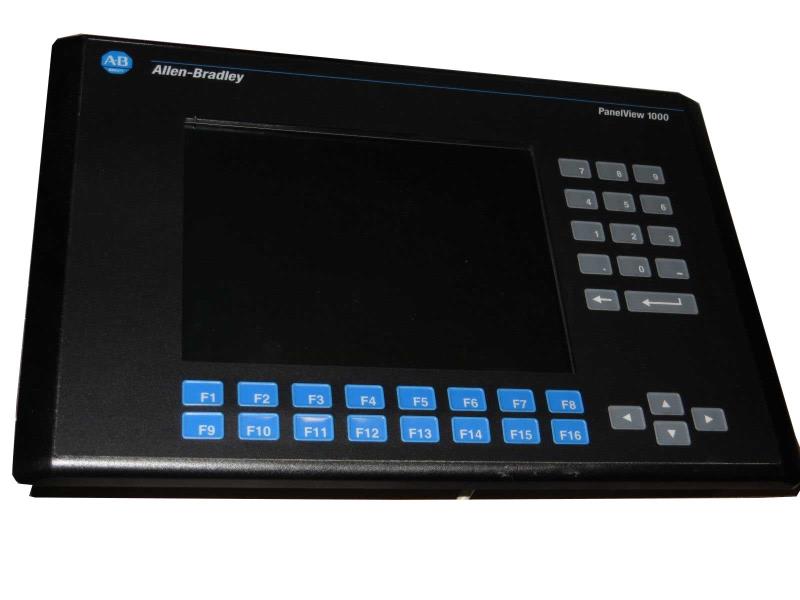

The Allen‑Bradley 2711‑K10G3L1 is a 10-inch grayscale PanelView 1000 Standard operator interface terminal, designed for keypad-based machine control in industrial settings.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
HMI / MMI / OIT |
| Part Number |
2711-K10G3L1
|
| Subcategory |
Operator Interface |
|
Product Line
|
Panelview 1000 |
|
Display Size
|
10.1 in. |
| Display Color |
Grayscale |
| Input Type |
Keypad |
| Communication |
DH-485 |
| Input Power |
24 Volts Direct Current |
| Memory |
256 Kilobytes |
| Enclosure Type |
NEMA Type 12/13 or 4X |
| Weight |
7.01 lbs |
Information About 2711-K10G3L1
The Allen‑Bradley 2711‑K10G3L1 is a 10.1-inch grayscale operator interface terminal from the PanelView Standard 1000 series, built for reliable performance in industrial environments. It features a rugged 16-key stainless-steel domed membrane keypad, a high-contrast monochrome display, and supports communication via DH-485 and an RS-232 printer port. Operating on 24V DC power, it includes 310 KB of application RAM and 1,008 KB of non-volatile storage. The unit is designed for panel mounting in harsh conditions, housed in a NEMA-rated enclosure, and includes field-replaceable components like the backlight and battery.
Key Features:
- Product Type: PanelView Standard HMI Terminal
- Display: 10.1″ grayscale LCD, 640 × 480 resolution
- Keypad: 16-key stainless-steel domed membrane, rated for 1 million actuations
- Memory: 310 KB application RAM / 1,008 KB non-volatile flash
- Power Supply: 24V DC (18–32V operating range)
- Communications: DH-485 network and RS-232 printer port
- Environmental Ratings: NEMA 12, 13, 4X enclosure; 0 to 55 °C temperature range; 5–95% RH (non-condensing)
- Serviceable Components: Field-replaceable backlight and battery
- Mounting: Panel mount
- Status: Discontinued (available as refurbished or surplus)
The 2711-K10G3L1 is a durable and dependable HMI solution for industrial control applications where a tactile keypad interface and grayscale display are preferred. It supports legacy networks and continues to be used in existing installations where reliability and familiarity are essential.
