Description

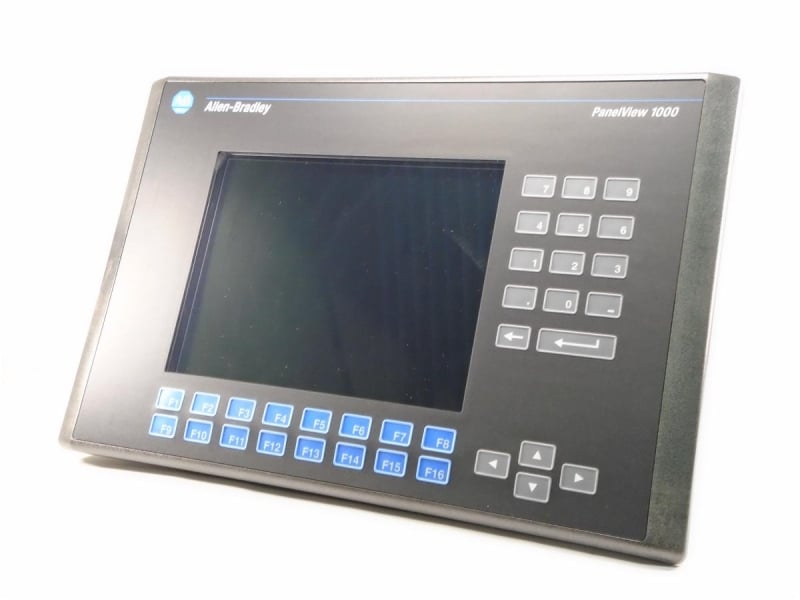

The Allen-Bradley 2711-K10C3L1 is a PanelView 1000 Standard Operator Terminal featuring a 10.1-inch color active matrix TFT display with a resolution of 640 x 480 pixels. It utilizes a keypad interface with 16 programmable function keys (F1–F16) for user input.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
HMI / MMI / OIT |
| Part Number |
2711-K10C3L1
|
| Subcategory |
Operator Interface
|
|
Product Line
|
Panelview 1000 |
| Display Size |
10.1 in. |
Display Color
|
|
|
Input Type
|
Keypad |
| Communication |
DH-485 |
| Input Power |
24 Volts Direct Current |
| Memory |
256 Kilobytes |
| Enclosure Type |
NEMA Type 12/13 or 4X |
| Weight |
6.55 lbs |
Information About 2711-K10C3L1
The Allen-Bradley 2711-K10C3L1 is a color operator terminal designed to provide a reliable and efficient human-machine interface (HMI) solution for industrial control systems. It is part of the PanelView 1000 series by Allen-Bradley, known for their robust performance and user-friendly features.
Key Features:
-
Display: The 2711-K10C3L1 features a 10.1-inch color active matrix TFT display with a resolution of 640 x 480 pixels, delivering clear and vibrant graphical representations of system data.
-
Input: It utilizes a keypad interface with 16 programmable function keys (F1–F16), offering operators intuitive and quick access to system controls.
-
Communication: The terminal supports DH-485 communication, ensuring reliable data exchange with connected devices in industrial networks.
-
Printer Port: Equipped with an RS-232 printer port, the terminal can print alarm messages and logs directly to a connected printer, aiding in troubleshooting and record-keeping.
-
Memory: The device includes 1008 KB of non-volatile memory and 310 KB of RAM, providing sufficient storage for applications and runtime data.
-
Power Supply: Operates on 24V DC, suitable for standard industrial control system power environments.
-
Enclosure Rating: The 2711-K10C3L1 is housed in a NEMA Type 12/13 or 4X (for indoor use) rated enclosure, designed to withstand industrial operating conditions.
-
Temperature Range: Built to operate reliably in temperatures from 0 to 55°C (32 to 131°F), it handles a wide range of ambient conditions in factories and industrial facilities.
-
Durability: With its rugged build and reliable components, the 2711-K10C3L1 ensures long-lasting performance in demanding applications.
The Allen-Bradley 2711-K10C3L1 is a dependable and versatile HMI solution, ideal for industrial applications that require clear operator interaction, durable construction, and reliable communication with control systems.
