Description

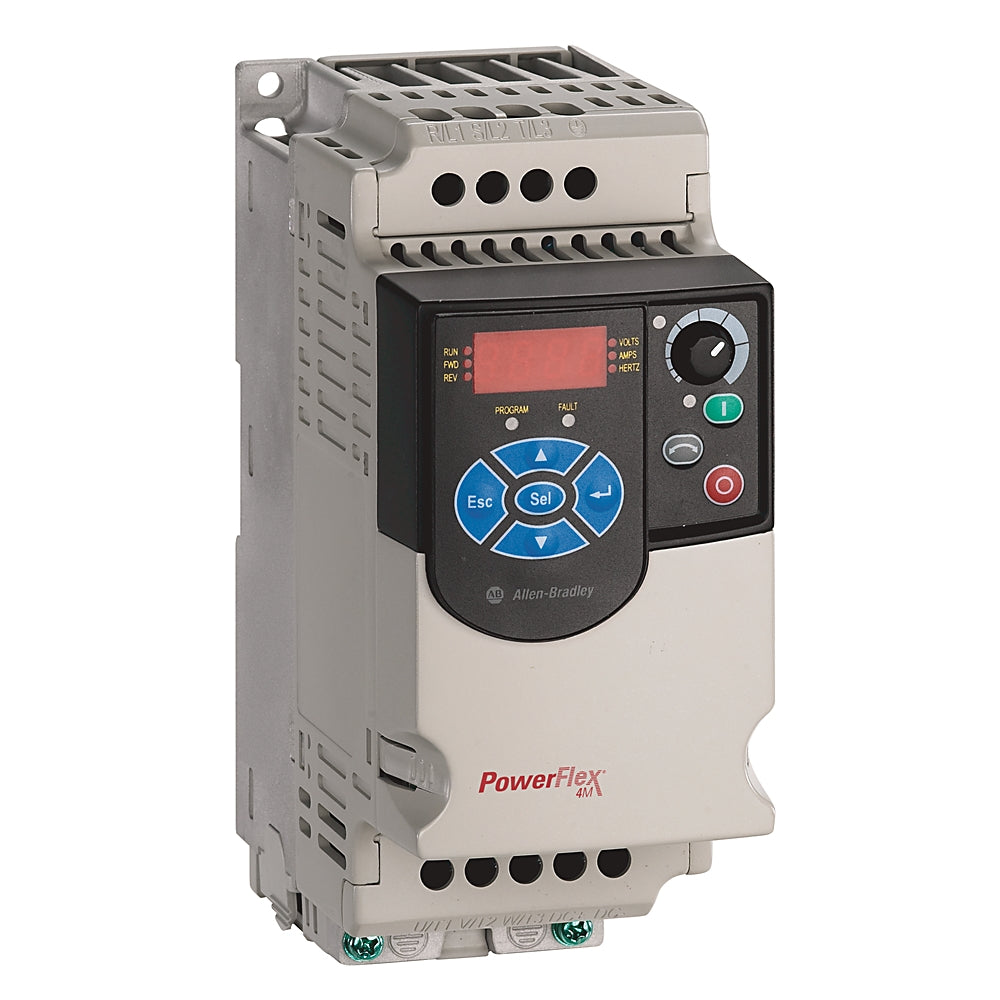

The Allen-Bradley 22F-A1P6N103 is a compact and efficient adjustable frequency AC drive from the PowerFlex 4M series. Designed for simple motor control applications, this drive supports 240V single-phase input and delivers 0.25 HP (0.2 kW) output with a 1.6 A current rating.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
22F-A1P6N103
|
| Subcatecory |
|
| Product Line |
Powerflex 4M |
| Amperage |
1.6 |
| Wattage |
0.2 Kilowatt |
| Enclosure Type |
Open- IP20 |
| Input Power |
240 Volts- Alternating Current |
| Phase |
One-Phase |
| Filter |
Without CE Compliant Filter |
| Horsepower |
0.25 Horsepower |
| Weight |
0.21 kgs |
Information About 22F-A1P6N103
The 22F-A1P6N103 is part of the PowerFlex 4M family, known for its simplicity, durability, and flexibility in basic speed control applications. This model supports 240V AC single-phase input and provides 1.6 A output current, suitable for motors up to 0.25 HP. Housed in a Frame Size A, it features an open IP20 enclosure, ideal for installation inside control panels.
Key Features:
-
0.25 HP / 0.2 kW Output Power: Supports fractional horsepower motors in light-duty applications.
-
240V Single-Phase Input: Designed for basic standalone installations with standard power supply.
-
1.6 A Output Current: Provides precise control in low-power drive environments.
-
Open-Type IP20 Enclosure: Intended for mounting inside enclosures or protected control panels.
-
Fixed LED Display & Keypad: Simplifies drive configuration and status visibility.
-
Frame Size A: Compact footprint for space-constrained installations.
-
No CE Filter / No Brake: Suited for applications not requiring electromagnetic compliance or dynamic braking.
The 22F-A1P6N103 is an economical and practical choice for fans, conveyors, and other simple motor control tasks.
