Description

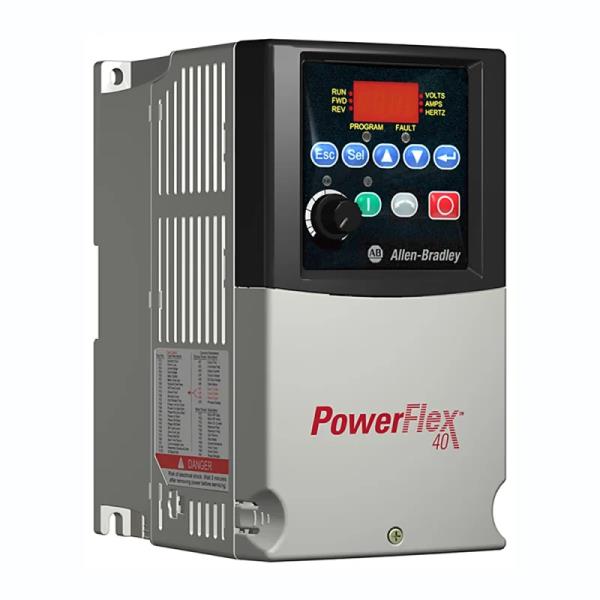

The 22B-E6P6N104 is an adjustable frequency AC drive from the Allen-Bradley PowerFlex 40 series, designed to control motor speed and torque in three-phase industrial applications. This unit supports 600V AC input voltage and delivers up to 5 horsepower output power.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
22B-E6P6N104
|
| Subcatecory |
|
| Product Line |
Powerflex 40 |
| Voltage |
600AC Volts |
| Enclosure |
Panel Mount - IP20, NEMA/UL Type Open |
| HP |
5 Horsepower |
| Amperage |
6.6 A |
| Phase |
3 Phase |
| Filter |
No CE Compliant Filter |
| Communication |
RS-485 |
| Input Type |
Keypad |
| Weight |
1.43 kgs |
Information About 22B-E6P6N104
The 22B-E6P6N104 is part of the PowerFlex 40 product line by Allen-Bradley/Rockwell Automation. It is engineered for high-performance and cost-effective motor control across a wide range of industrial applications. The drive operates on 3-phase 600V AC input with a frequency range of 50 to 60 Hz, providing smooth and efficient operation in demanding environments.
The unit includes a built-in RS-485 communication port for integration with control networks and features a user-friendly keypad interface for programming and real-time monitoring. It comes in an IP20 (open-type) panel mount enclosure, which is suitable for installation inside control panels or protective enclosures.
Key Features:
-
High Voltage Input Capability: Operates on 3-phase 600V AC input, allowing for compatibility with industrial power systems.
-
Precise Motor Control: Provides speed and torque control for various applications using V/Hz or sensorless vector control methods.
-
Built-In Communication: Includes an RS-485 port for serial communication and integration with control systems.
-
Compact and Flexible Design: Open-type IP20/NEMA UL panel mount enclosure for easy installation in electrical cabinets.
-
Integrated Keypad Interface: Offers simple access for setup, configuration, and parameter adjustment without external tools.
This drive is ideal for OEMs and industrial users requiring reliable and efficient motor control in automation environments.
