Description

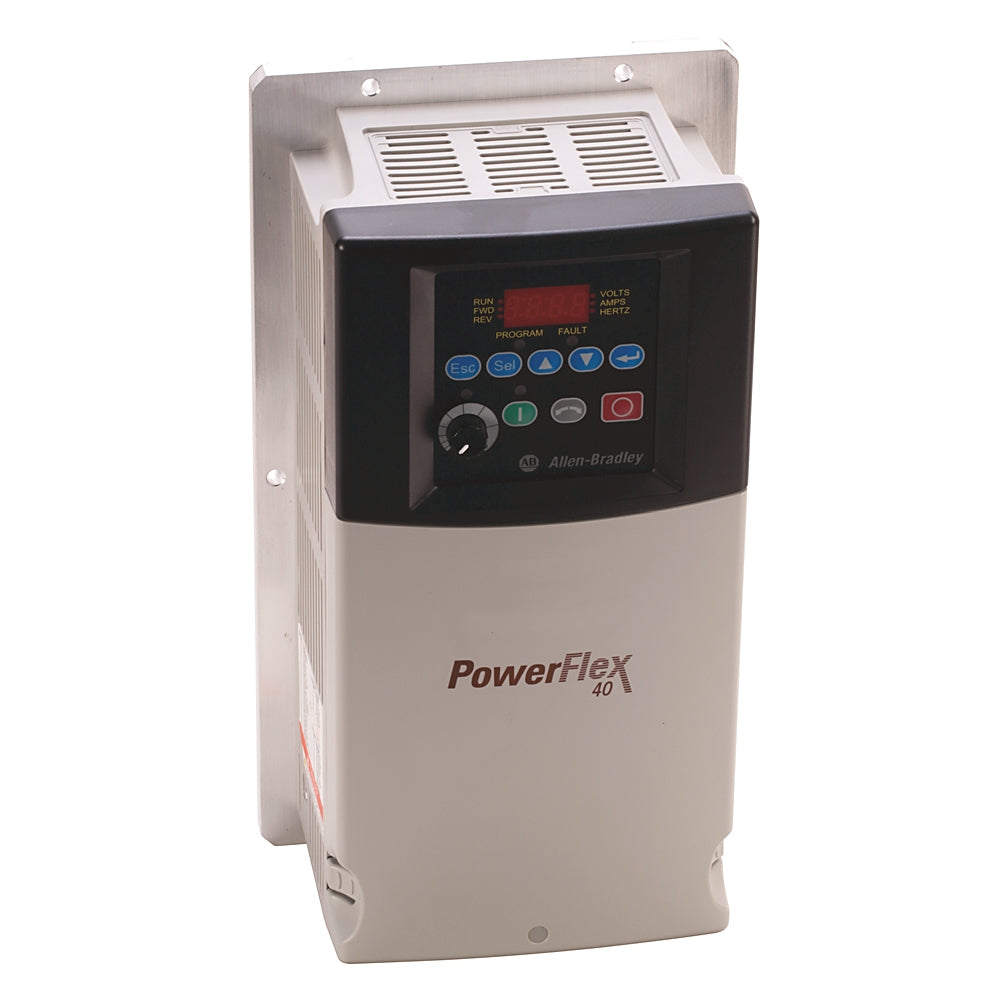

The 22B-D024H204 is a compact AC drive from Allen-Bradley's PowerFlex 40 series, engineered to deliver dependable motor control for general-purpose applications.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
22B-D024H204
|
| Subcatecory |
|
| Input Voltage |
480 V AC |
| Output Current |
24 A |
| Power Rating |
11 kW (15 HP) |
| Frequency |
50–60 Hz |
| Enclosure Rating |
IP20, NEMA/UL Open Type |
| Connection Type |
Fixed Terminal Block |
| Mounting Type |
Panel Mount
|
| Power Factor |
0.98 |
| Standards |
C-TICK, CE, UL, CUL, GOST, KC |
| Weight |
8.3400 lb |
Information About 22B-D024H204
The 22B-D024H204 is part of the PowerFlex 40 series, offering a robust and space-efficient solution for variable frequency motor control. With a power rating of 11 kW (15 HP) and an output current of 24 A, this drive supports 480V AC input voltage and operates efficiently within a 50–60 Hz frequency range. Its panel mountable design and IP20/NEMA open-type enclosure make it suitable for use in control cabinets and other protected industrial environments.
Key Features:
-
Powerful Motor Control: Supports motors up to 11 kW (15 HP) with reliable 24 A output
-
Energy Efficient: High power factor of 0.98 for reduced power losses
-
Compact and Versatile: IP20 open-type enclosure ideal for protected environments
-
Global Compliance: Certified for use in multiple international markets
-
Panel Mount Design: Simple and secure installation with fixed terminal block connections
The 22B-D024H204 delivers consistent performance for applications demanding efficient, reliable motor speed control.
