Description

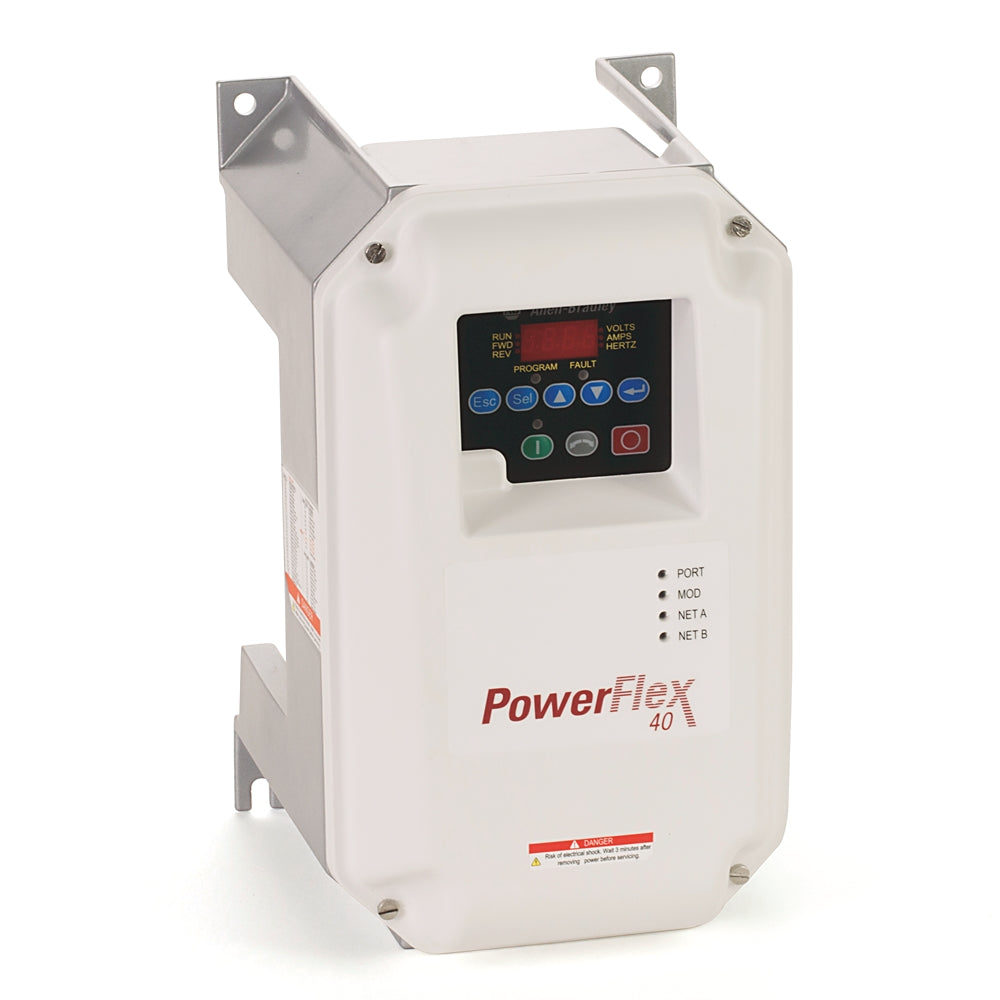

The Allen-Bradley 22B-B017C104 is a 5 HP, 3-phase AC drive from the PowerFlex 40 series, rated for 240V input and 17.5A output. It features a keypad interface, RS-485 communication, and is housed in a durable IP66/NEMA 4X panel-mount enclosure.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
22B-B017C104
|
| Subcatecory |
|
| Product Line |
Powerflex 40 |
| Voltage |
240AC Volts |
| Enclosure |
Panel Mount - IP66, NEMA/UL Type 4X |
| HP |
5 Horsepower |
| Amperage |
17.0 A |
| Phase |
3 Phase |
| Filter |
No CE Compliant Filter |
| Communication |
RS-485 |
| Input Type |
Keypad |
| Weight |
6.71 kgs |
Information About 22B-B017C104
The 22B-B017C104 is part of the PowerFlex 40 family of AC drives by Allen-Bradley, engineered for efficient and compact motor control. This model is rated for 240V AC, supports 3-phase power input, and delivers up to 17.0 Amps of current to provide a motor output of 5 horsepower. The drive features an integrated keypad for convenient local control and configuration, and an RS-485 communication port that allows for network integration with industrial control systems. It does not include a CE-compliant filter, making it suitable for applications where such certification is not required.
Key Features:
-
240V AC, 3-Phase Input: Compatible with standard industrial power systems
-
5 HP Motor Output: Efficient motor control for light to medium-duty applications
-
17.0 A Output Current: Supports continuous load operation
-
Keypad Input: Enables direct manual control and setup of drive parameters
-
RS-485 Communication: Allows integration into serial networks for remote control and diagnostics
-
IP66 / NEMA 4X Enclosure: Resistant to dust, water, and corrosion for harsh environments
-
No CE Filter Included: For applications without European compliance requirements
The 22B-B017C104 provides a flexible and rugged solution for localized motor control in industrial and washdown-rated environments.
