Description

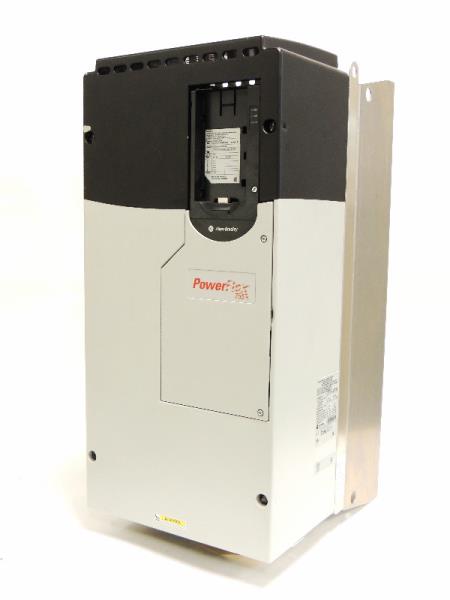

The Allen-Bradley 20G1AND361AN0NNNNN is a high-performance PowerFlex 755 Adjustable Frequency Drive (AFD) engineered for precise motor control in demanding industrial environments.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
Drives |
| Part Number |
20G1AND361AN0NNNNN |
| Subcatecory |
|
| Frame |
7 |
| Voltage Rating |
480V AC/650V |
| Continuous Output Current, ND |
361 Amperes |
| Continuous Output Power, ND |
300 HP |
| Continuous Output Current, HD |
302 Amperes |
| Continuous Output Power, HD |
250 HP |
| Human Interface Module (HIM) |
Not Included |
| Frames |
6...8 |
| Enclosure Type |
AC Input with Precharge, no DC Terminals |
| Frames 2 |
2...7 |
| Enclosure Type 2 |
IP20/IP00, NEMA/UL Type Open |
| Voltage |
480 Volts AC/650 Volts DC |
| Filtering |
Yes |
Information About 20G1AND361AN0NNNNN
The 20G1AND361AN0NNNNN belongs to the PowerFlex 755 family, known for advanced motor control, system integration, and safety features. This model offers a voltage rating of 480V AC / 650V DC and supports continuous output of 300 HP (ND) or 250 HP (HD). It comes in a Frame 7 size with an IP20/IP00, NEMA/UL Type Open enclosure, designed for installation in a controlled cabinet environment. The drive includes integrated filtering to reduce electrical noise, but it does not include a door-mounted Human Interface Module (HIM).
Key Features:
-
High Power Output: Provides 300 HP at 361 A (ND) or 250 HP at 302 A (HD), meeting the needs of high-demand motor applications.
-
Voltage Compatibility: Rated for 480V AC / 650V DC, suitable for standard industrial power systems.
-
Air-Cooled Frame 7 Design: Compact, reliable cooling solution for heavy-duty applications with minimal maintenance.
-
Integrated Filtering: Built-in filtering ensures reduced harmonics and compliance with EMC regulations.
-
Open-Type Enclosure: IP20/IP00, NEMA/UL Type Open design for mounting within protective electrical cabinets.
-
No HIM Module: Simplifies cost and design for systems using remote or network-based control interfaces.
The 20G1AND361AN0NNNNN is ideal for process industries, heavy-duty material handling, fans, pumps, and compressors where robust performance and system adaptability are essential.
