Description

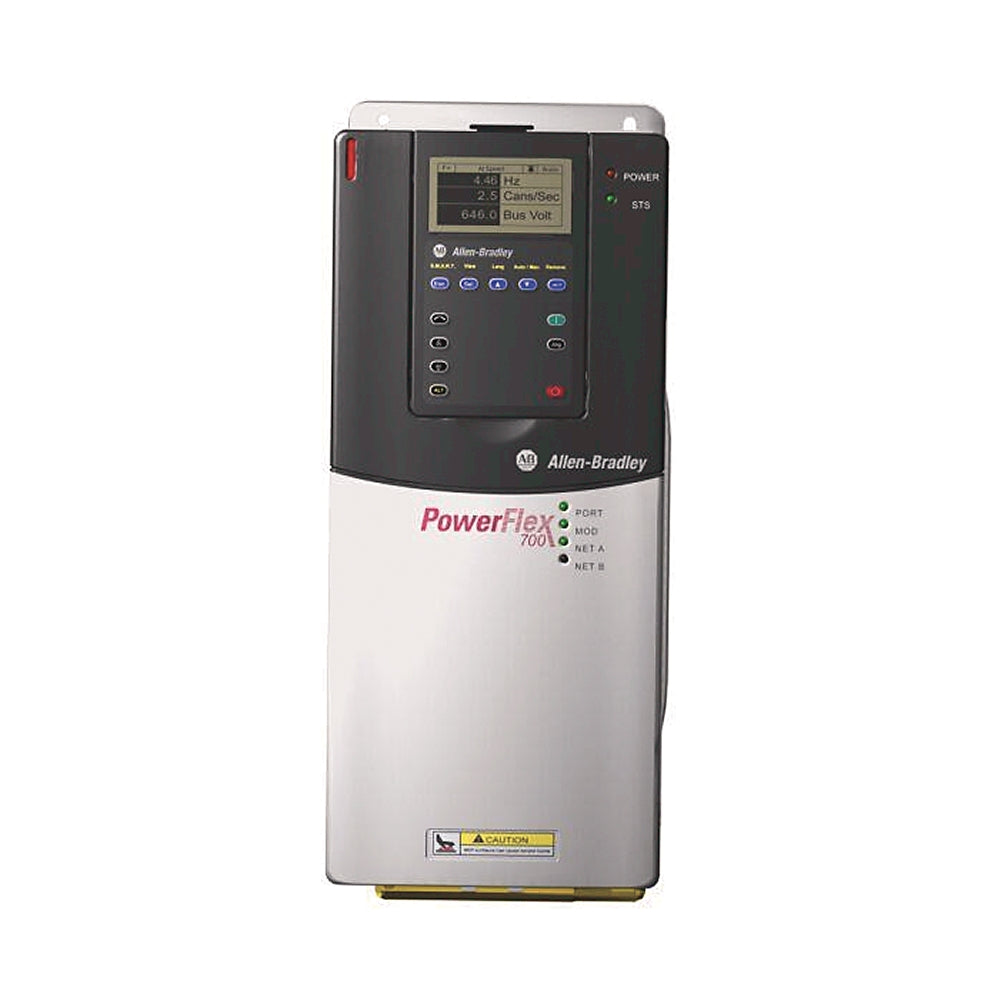

The Allen-Bradley 20BD052A0AYNAND0 is a high-performance PowerFlex 700 variable frequency AC drive designed for controlling three-phase motors in demanding industrial applications. It delivers robust vector and V/Hz motor control with enhanced torque and speed regulation.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
20BD052A0AYNAND0
|
| Subcatecory |
|
| Input Voltage |
480V AC, 3-Phase |
| Frequency |
60 Hz |
| Output Current |
52 Amps |
| Horsepower |
40 HP |
| Frame Size |
3 |
| Enclosure Rating |
IP20 / NEMA Type 1 |
| Control Method |
Vector Control, V/Hz |
| Brake IGBT |
Yes |
| Interface Module |
Blank Cover (No HIM) |
| Mounting |
Panel Mount |
| Weight |
17.24 kgs |
Information About 20BD052A0AYNAND0
The 20BD052A0AYNAND0 is a 40 HP drive from the PowerFlex 700 series. It operates at 480V AC, 3-phase, with a 52A output current and is equipped with a vector control cassette for advanced motor performance. This unit features a Frame Size 3, IP20 / NEMA Type 1 enclosure, CE filter, and common mode (CM) choke. The drive includes a blank cover in place of the Human Interface Module (HIM) and has an integrated brake IGBT for dynamic braking capability.
Key Features:
-
Motor Control: Supports Vector and V/Hz control for precise speed and torque regulation.
-
Power Rating: 40 HP output with a 52A rated current, suitable for mid- to high-range applications.
-
Enclosure Type: IP20 / NEMA Type 1 for standard industrial environments.
-
Integrated Braking: Built-in IGBT for braking to enhance stopping performance and reduce wear.
-
Filter & Choke: CE-compliant EMC filter and CM choke for reduced electrical noise and improved system compatibility.
-
Communication: RS485 network connectivity for seamless integration into control systems.
-
User Interface: Comes with a blank cover; optional HIM modules can be added separately as needed.
This PowerFlex 700 drive is well-suited for process automation, material handling, and high-inertia load control.
