Description

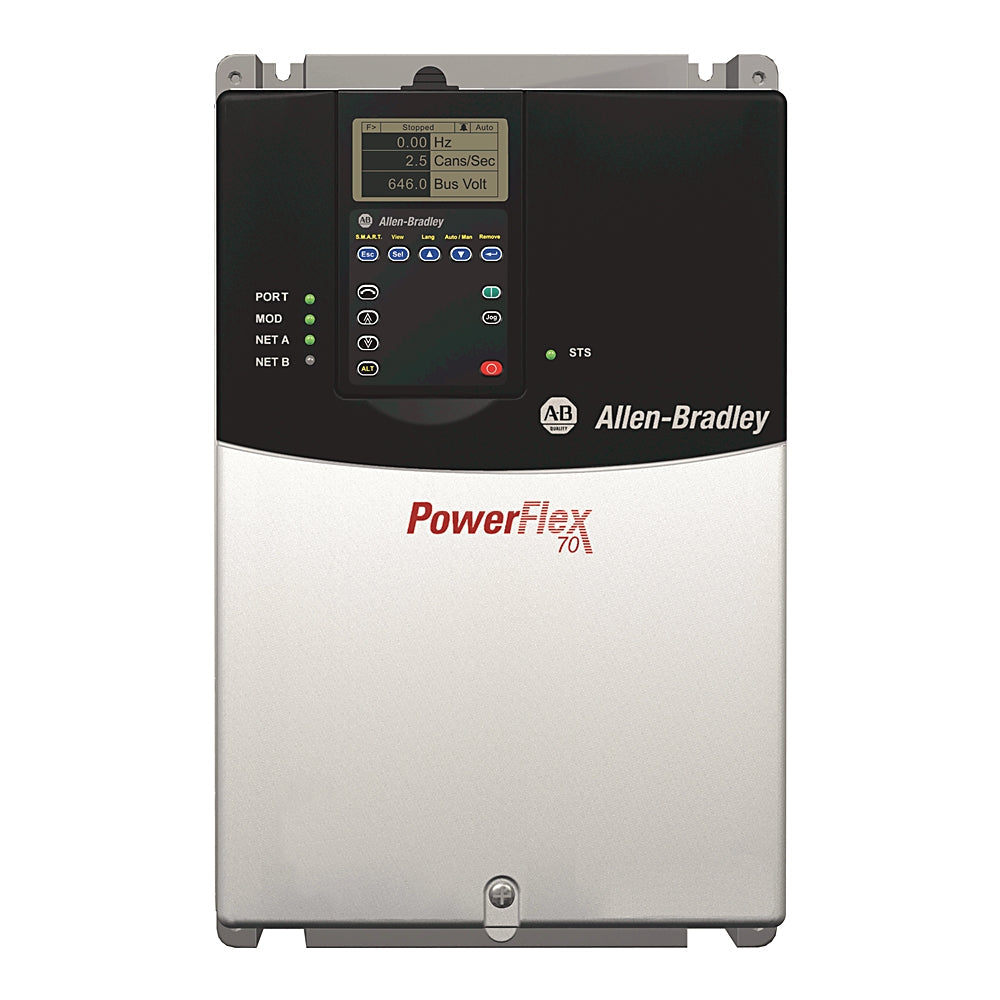

The Allen-Bradley 20AD022A3AYNANC0 is a high-performance adjustable frequency AC drive from the PowerFlex 70 series. Designed for precision motor control in industrial environments, it delivers up to 15 HP (11 kW) of output power with a 22 A output current.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
20AD022A3AYNANC0
|
| Subcatecory |
|
| Voltage |
480V AC |
| Phase |
3 |
| Output Current |
22 A |
| kW(Hp) |
11 (15) |
| Frame |
D |
| Enclosure |
Panel Mount - IP 20, NEMA/UL Type 1 |
| Interface Module |
Full Numeric LCD |
| Type |
Manual |
| w/Brake |
Yes |
| w/Resistor |
No |
Information About 20AD022A3AYNANC0
The 20AD022A3AYNANC0 is part of the Allen-Bradley PowerFlex 70 series, known for compact design and powerful motor control capabilities. This unit supports 480V AC, 3-phase input, and provides an output of 22 A, suitable for motors rated up to 11 kW (15 HP) in Normal Duty (ND) applications. It comes in a size D frame and includes a manual brake configuration, but does not include a dynamic braking resistor.
Key Features:
-
15 HP / 11 kW Output Rating: Supports medium-duty industrial motor applications.
-
22 Amp Output Current: Delivers reliable power for consistent motor performance.
-
480V AC, 3-Phase Input: Compatible with industrial power supply standards.
-
Full Numeric LCD Interface: Enables easy programming, diagnostics, and monitoring.
-
Panel Mountable (IP20/NEMA 1): For installation in standard electrical enclosures.
-
Manual Type Drive: Suitable for applications not requiring network communication.
-
With Brake / No Resistor: Supports brake functionality; external resistor must be added if needed.
-
Frame Size D: Medium-sized frame for versatile control panel integration.
The 20AD022A3AYNANC0 provides robust motor control in material handling, conveyors, and manufacturing equipment where precision, reliability, and ease of use are essential.
