Description

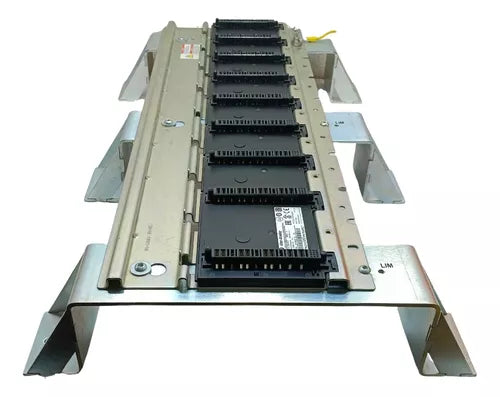

The Allen-Bradley 2094-PRS8 Kinetix 6000 Power Rail is a slim, 8-axis power rail designed to deliver power and control signals from the Integrated Axis Module (IAM) to adjacent components such as Axis Modules, Shunt Modules, and Slot Fillers.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Allen-Bradley
Category	PLCs and Accessories
Part Number	2094-PRS8
Subcatecory	PLC Expansion Modules
Series	Kinetix 6000
Drive System Voltage	230 VAC; 430 VDC
Compatible modules	Axis Module (AM), Shunt Module, Slot Filler Module
Removal and Insertion under Power (RIUP)	Not supported
Mounting	Panel Mount
Subpanel material	Zinc plated; Paint free steel panel
Mounting hardware	M6 metric (1/4x20)
Components	Braided ground strap; protective covers
Optional installation accessory	Mounting bracket
Module Type	Slim Power Rail
Applications	230 or 460 Volt Drive Systems
Module Capacity	1 IAM, 7 Additional
Number of Axes	8-Axes
Weight	9.7 lbs (4.43 kg)





Information About 2094-PRS8

The 2094-PRS8 Power Rail is part of the Allen-Bradley Kinetix 6000 series, known for its efficient and flexible motion control capabilities. This model supports one IAM module and up to seven additional modules, making it ideal for multi-axis drive systems. It is engineered for panel mounting with a durable zinc-plated, paint-free steel subpanel for secure installation.

Key Features:

• 8-Axis Power Rail: Designed to support up to eight connected modules.

• 230V or 460V Drive System Compatibility: Ensures flexibility in different industrial setups.

• Modular Design: Accommodates 1 Integrated Axis Module (IAM) and up to 7 additional modules.

• Reliable Power and Control Signal Distribution: Provides seamless connection between drive system components.

• Durable Construction: Features a robust zinc-plated, paint-free steel panel for long-lasting performance.

• Panel Mount Design: Ensures secure and efficient installation.

• Optional Mounting Bracket Accessory: Available for additional mounting support.

The Allen-Bradley 2094-PRS8 Kinetix 6000 Power Rail is ideal for industrial motion control applications that require precise and reliable power distribution in multi-axis systems.
