Description

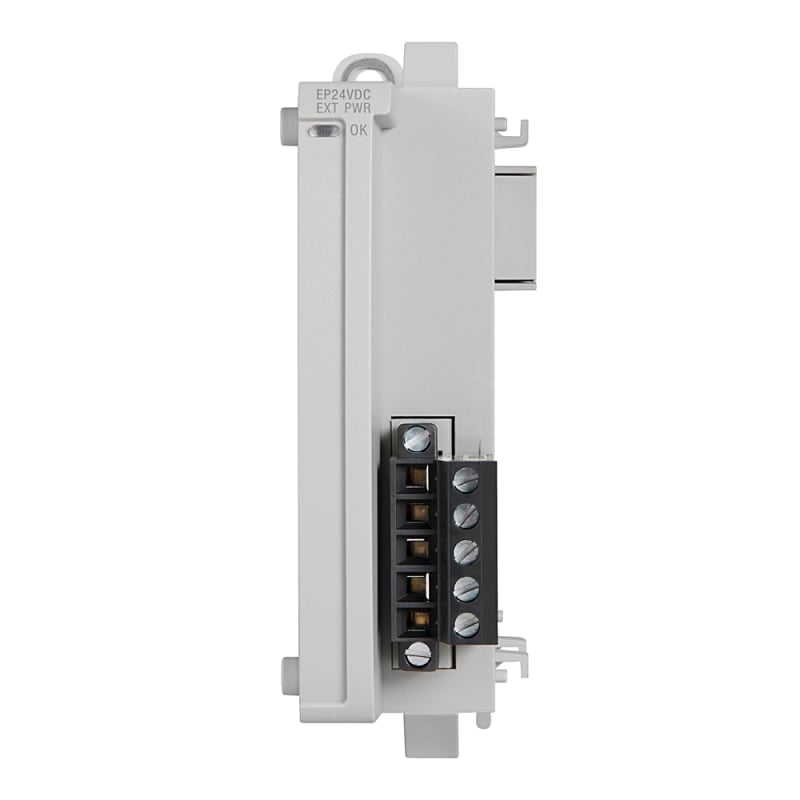

The Allen-Bradley 2085-EP24VDC is a 24V DC expansion power supply module for the Micro850 and Micro870 PLC systems. It provides additional 24V DC power to support more I/O modules when the internal controller supply is insufficient.

Technical Specifications

Information About 2085-EP24VDC

The Allen-Bradley 2085-EP24VDC is a 24V DC expansion power supply module designed to provide additional power for expansion I/O modules used with Micro850® and Micro870® controllers in industrial automation systems.

Key Features:

• Power Supply Voltage: 24V DC

• Supported Controllers: Micro850® and Micro870®

• Expansion Support: Provides power for up to 4 expansion I/O modules

• Mounting: DIN rail mountable

• Installation Location: Installs on the right side of the controller

• Terminal Block: Removable for easy wiring

• LED Indicator: Power status LED for monitoring

• Protection: Internal electronic protection

• Operating Temperature Range: -20°C to +65°C

• Storage Temperature Range: -40°C to +85°C

• Altitude: Suitable for use up to 2000 meters above sea level

• Dimensions (HxWxD): Approximately 90 x 25 x 87 mm

• Certifications: UL Listed, CE Marked, and RoHS compliant

• Compatibility: Ensures seamless integration with additional expansion modules when internal power is inadequate

This module ensures reliable and scalable power distribution for expanding control systems in compact industrial environments.
