Description

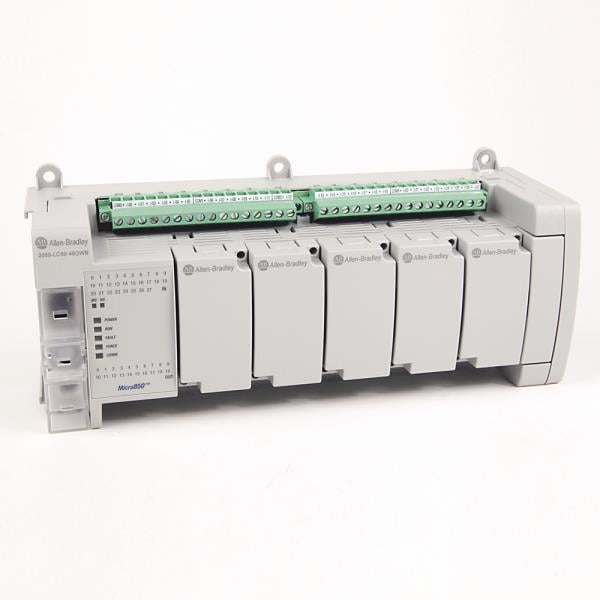

The Allen-Bradley 2080-L50E-48QWB is a Micro850 programmable logic controller (PLC) with built-in EtherNet/IP support. It features 48 I/O points (28 digital inputs, 20 digital outputs), supports expansion modules, and offers integrated USB and Ethernet ports for programming and communication.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Allen-Bradley
Category	Industrial Automation
Part Number	2080-L50E-48QWB
Subcategory	Programmable Logic Controllers (PLCs)
Number of Inputs	28
Number of Outputs	20
Product Type	Simple
Series	Micro 850
Signal Range	24 VAC/VDC Input Signal, Relay Output
Dimensions	3.4000 In x 12.2000 In x 5.4000 In
Weight	0.933 lbs





Information About 2080-L50E-48QWB

The 2080-L50E-48QWB is a Micro850® EtherNet/IP Controller from Rockwell Automation's Micro800® family, designed for flexible and scalable micro control applications.

Key Features:

• Digital Inputs: 28 channels supporting 24V DC or 24V AC signals.

• Digital Outputs: 20 relay outputs, accommodating both 240V AC and 24V DC loads.

• High-Speed Counters (HSC): Supports up to 6 HSC channels, suitable for applications requiring precise counting and timing.

• Communication Ports:

  • Embedded USB programming port for straightforward configuration and programming.

  • Ethernet port enabling EtherNet/IP communication for seamless integration into networked systems.

  • Non-isolated RS232/485 serial port for versatile serial communication options.

• Plug-In Ports: Equipped with 5 plug-in slots, allowing for system expansion and customization with additional modules.

Technical Specifications:

• Power Supply: Operates on a 24V DC input power source.

• Memory:

  • Program memory: 10 kB.

  • Data memory: 20 kB.

• Operating Temperature Range: -20°C to 65°C, ensuring reliable performance in various industrial environments.

• Storage Temperature Range: -40°C to 85°C.

• Relative Humidity: Supports up to 95% non-condensing humidity.

• Ingress Protection: Rated at IP20, indicating protection against solid objects greater than 12.5 mm but no protection against liquids.

• Shock and Vibration:

  • Shock acceleration: up to 30 g.

  • Vibration acceleration: up to 2 m/s² at frequencies up to 500 Hz.

This controller is well-suited for applications requiring a balance between performance and flexibility, offering robust features for various industrial automation tasks.
