Description

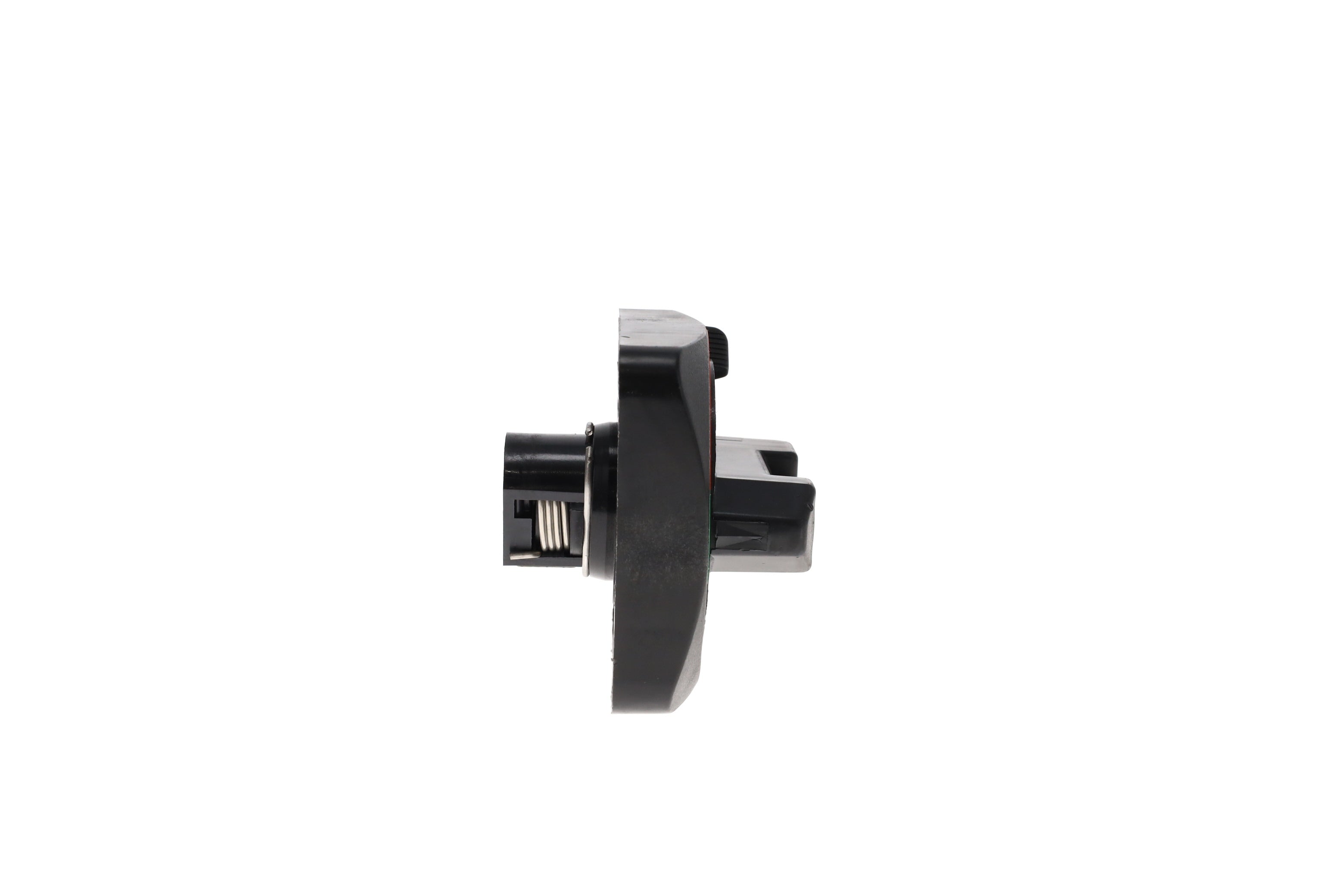

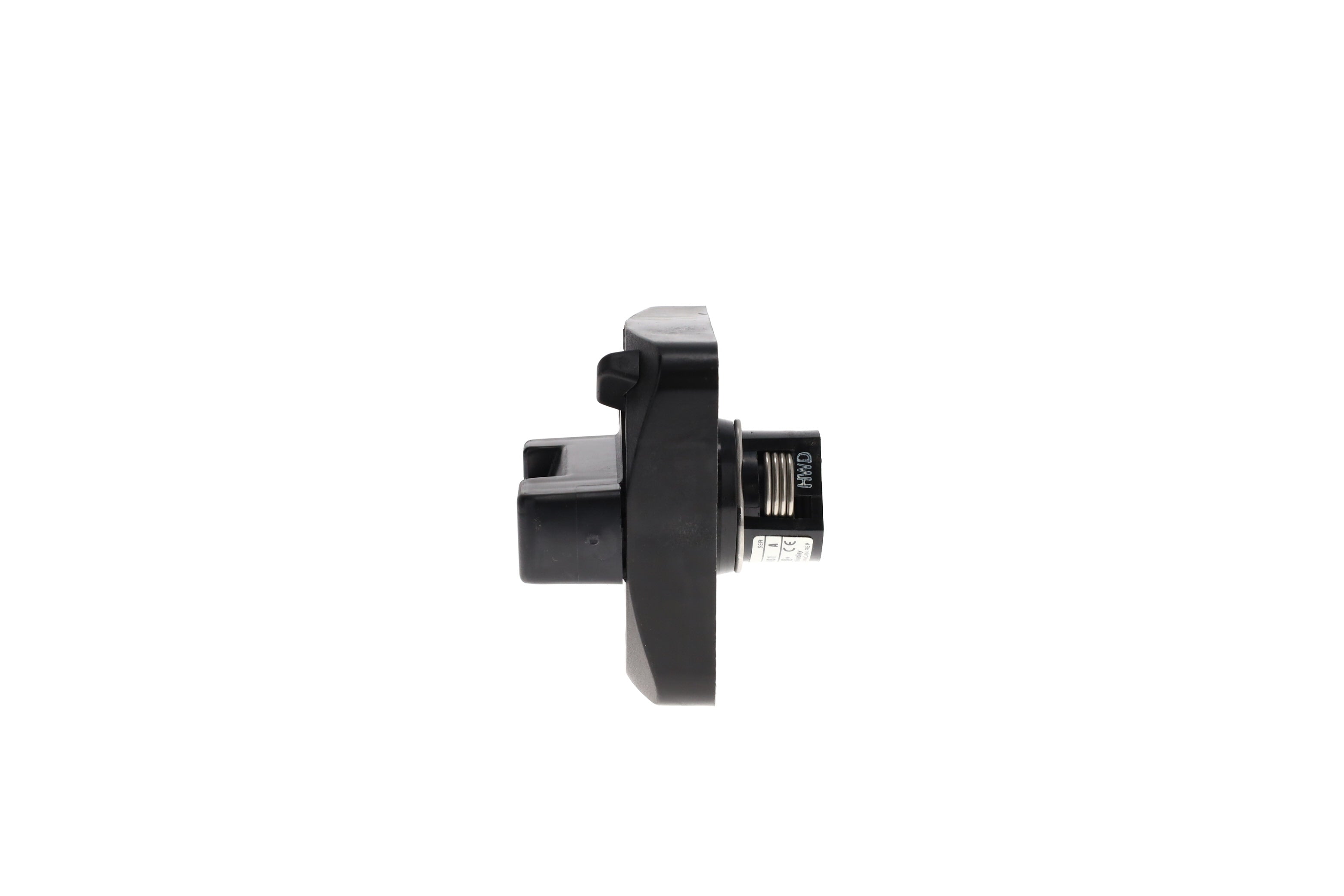

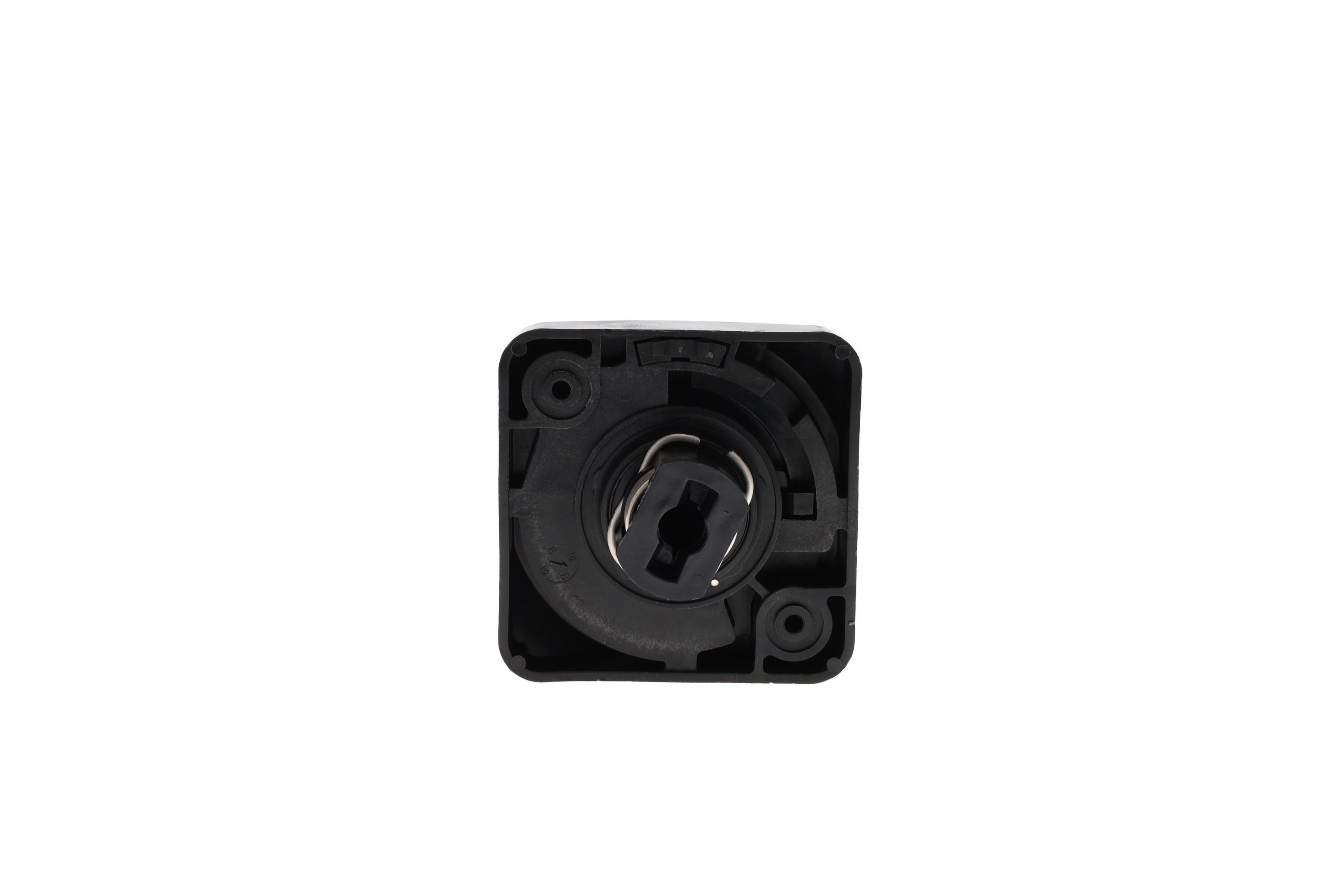

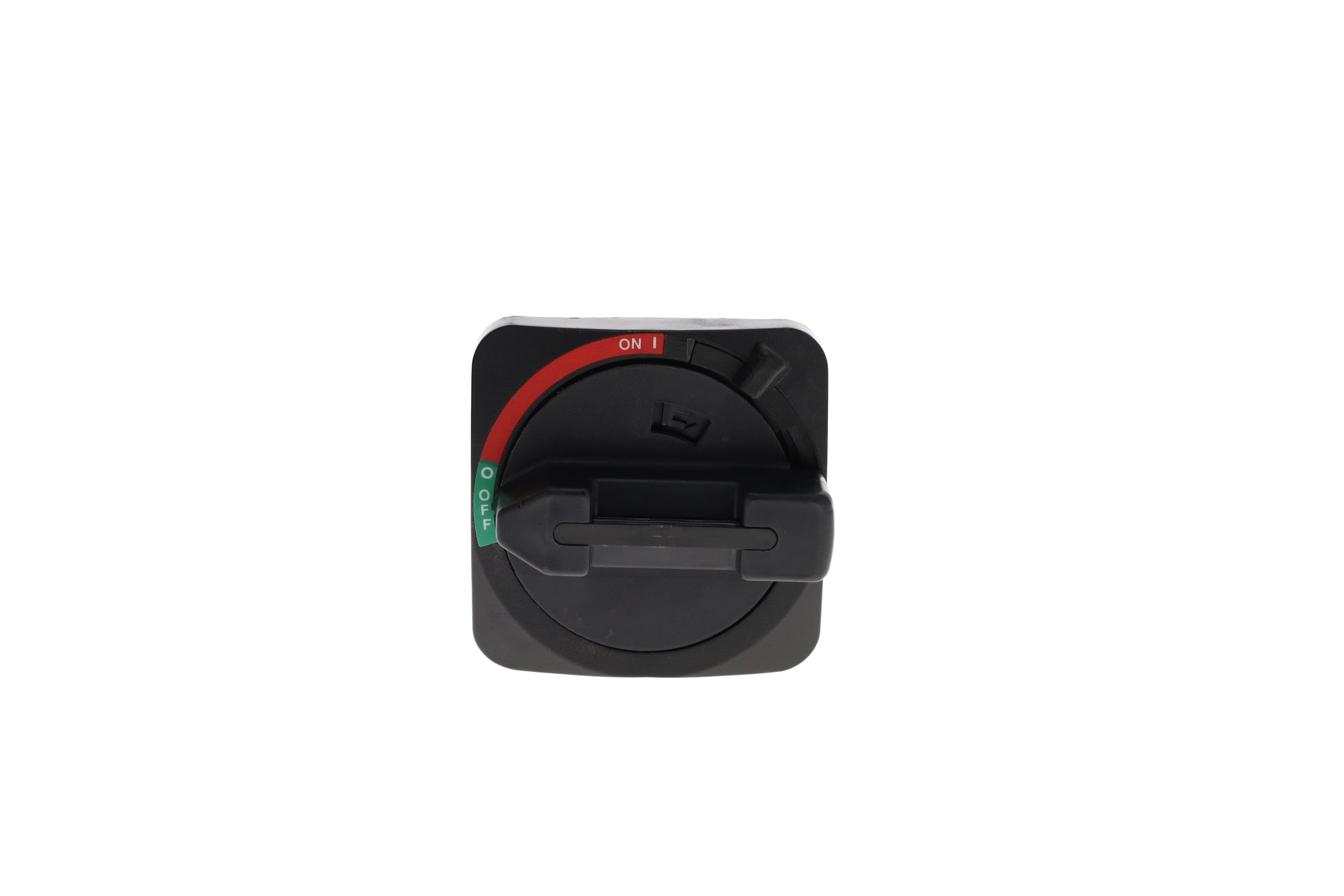

The Allen-Bradley 194R-HS1 is a standard black operating handle designed for use with Bulletin 194R IEC fused and non-fused disconnect switches. Engineered with safety and usability in mind, it includes a defeater mechanism to allow controlled override in lockout/tagout procedures.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
194R-HS1
|
| Subcatecory |
|
| Handle Type |
Standard with Defeater |
| Application |
Bulletin 194R Fused and Non-Fused Disconnect Switches |
| Compatible Frames |
A1, A2, B1, B2 |
| Protection Rating |
IP42, NEMA Type 1 |
| Color |
Black |
| Mounting |
External, panel-mounted |
| Weight |
0.14 kgs |
Information About 194R-HS1
The 194R-HS1 is intended for use with A1, A2, B1, and B2 frame sizes of IEC-style fused and non-fused disconnect switches from Allen-Bradley's Bulletin 194R series. With an ergonomic design and built-in defeater, it supports secure access while maintaining compliance with safety regulations. It provides a robust control interface suitable for general-purpose enclosure applications. The handle is surface-mounted externally on the enclosure and allows operators to turn power on or off without opening the panel. The defeater mechanism provides safe override for maintenance.
Key Features:
-
Compatibility: Fits A1, A2, B1, B2 fused and non-fused Bulletin 194R disconnect switches.
-
Protection Ratings: Meets IP42 and NEMA Type 1 for indoor use.
-
Defeater Mechanism: Allows manual override during lockout/tagout situations.
-
Color and Material: Black, durable thermoplastic design.
-
Replacement Reference: Superseded by 194R-PY for newer models.
The 194R-HS1 provides secure and efficient control for industrial power disconnection tasks, aligning with global standards for safety and functionality.
